Oil Pump: Components

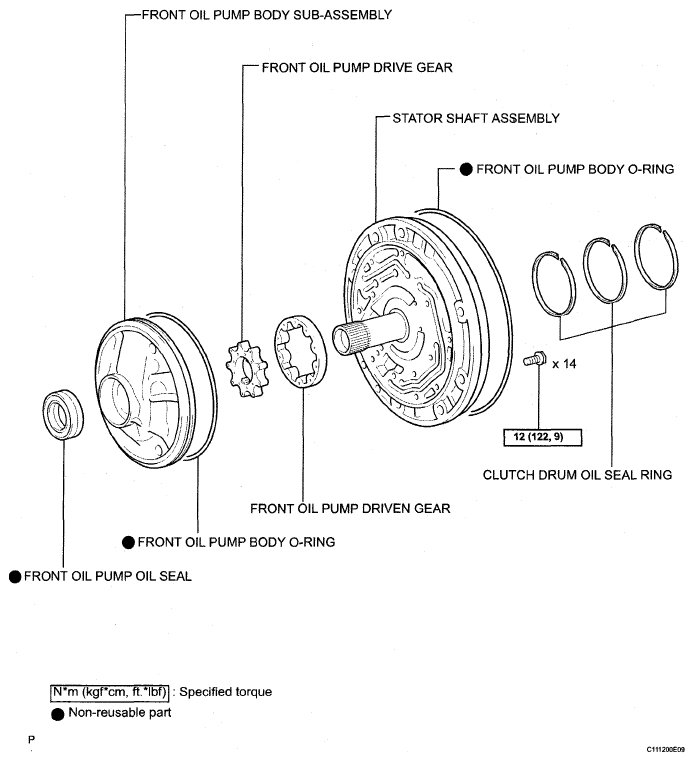

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
