Shift Lever Assembly: Components

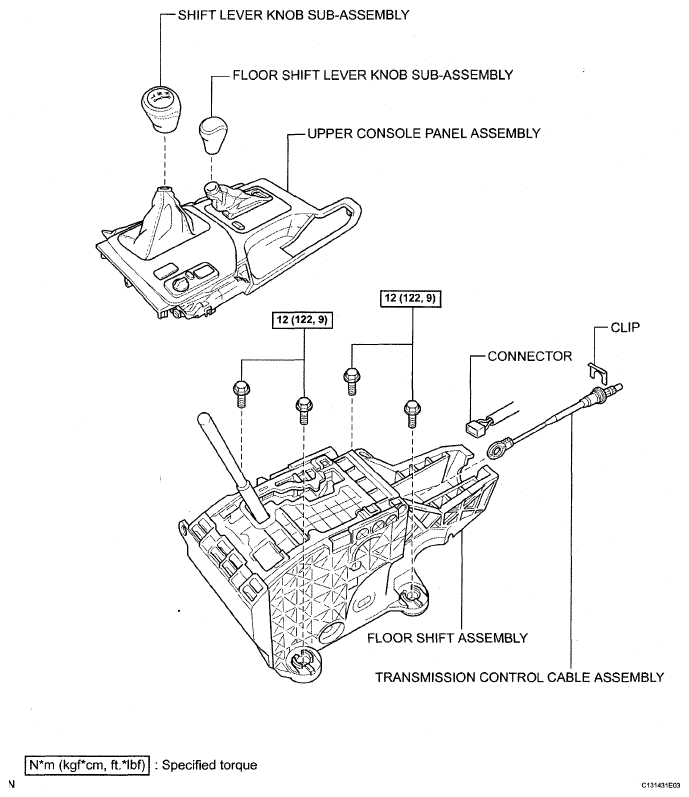

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 2)
G05261341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

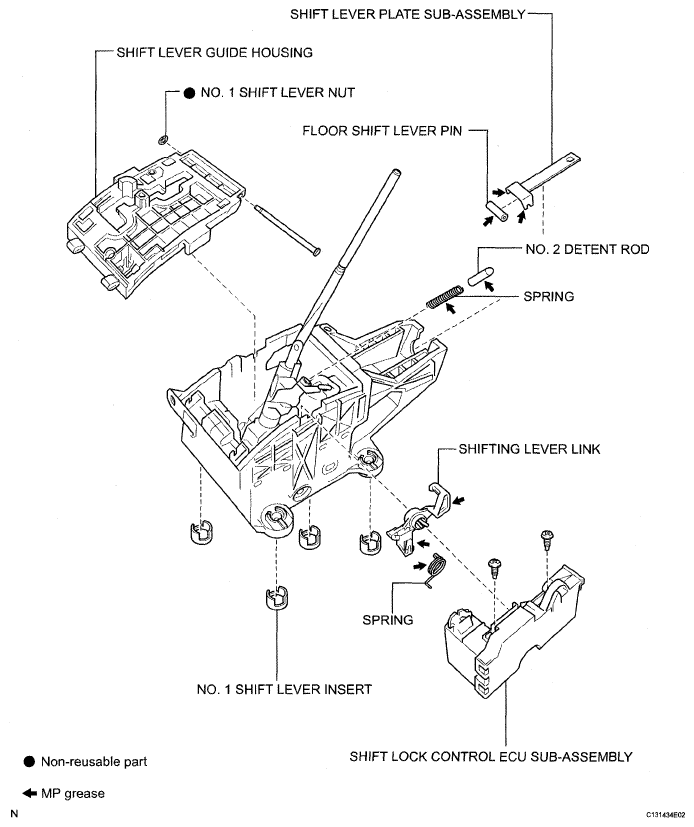

Fig 2: Identifying Shift Lever Assembly Replacement Components (2 Of 2)
G05261342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
