Speed Sensor: Removal
REMOVE SPEED SENSOR

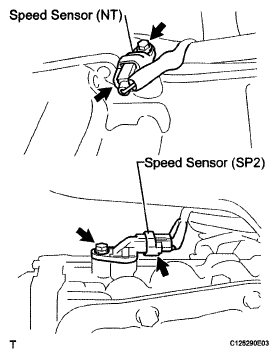

Fig 1: Identifying Speed Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the connector.
Remove the bolt and speed sensor.
