Network Gateway Ecu: Installation

INSTALL NETWORK GATEWAY ECU
1. Install the network gateway ECU.

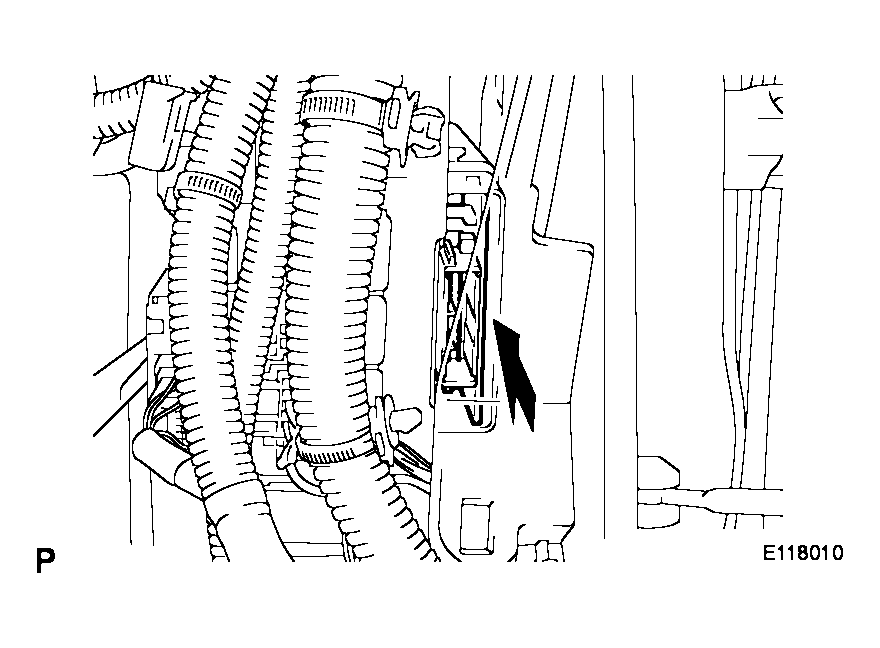

  Fig 1: Identifying Network Gateway ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws to install the cover.
3. Connect the connector.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See INSTALLATION )
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL SIDE INSTRUMENT PANEL (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER
INSTALL FRONT DOOR SCUFF PLATE
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
INSPECT SRS WARNING LIGHT
(see DIAGNOSIS SYSTEM )

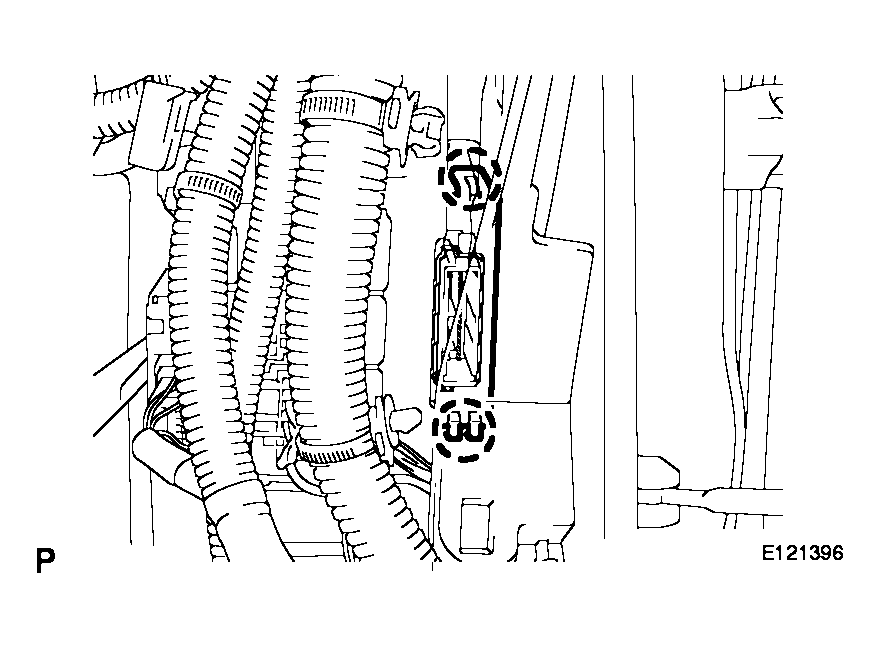

Fig 2: Identifying Cover And Engaging Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
