Network Gateway Ecu: Removal

NOTE: When disassembling the network gateway ECU, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See AIRBAG SYSTEM ).
  2. REMOVE FRONT DOOR SCUFF PLATE

    HINT:

    Removal procedure of the RH side is the same as that of the LH side (See REMOVAL ).

  3. REMOVE FRONT DOOR OPENING TRIM COVER

    HINT:

    Removal procedure of the RH side is the same as that of the LH side (See REMOVAL ).

  4. REMOVE SIDE INSTRUMENT PANEL (See  REMOVAL  )
  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  6. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  7. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  8. REMOVE NETWORK GATEWAY ECU
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the cover.

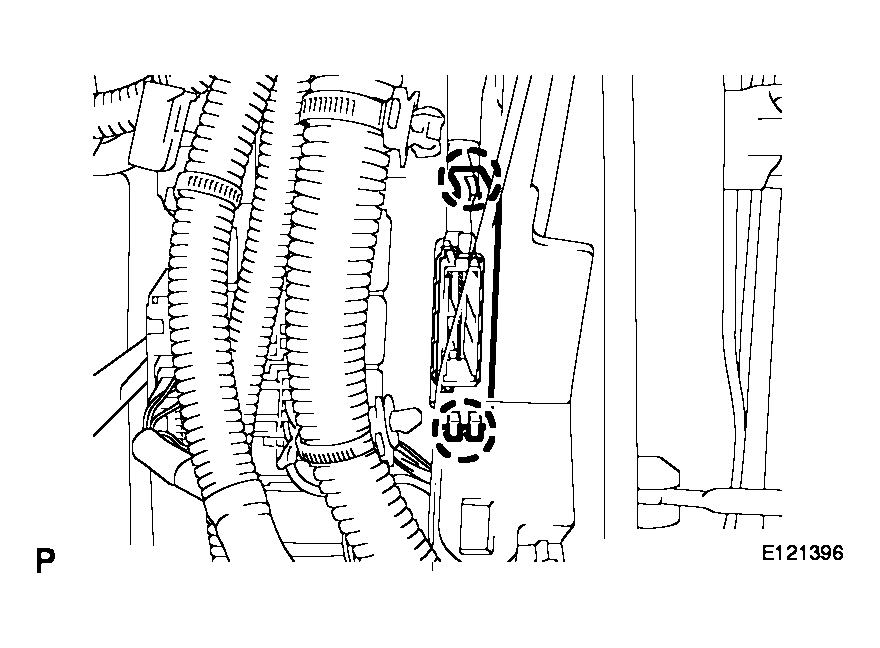

      Fig 1: Identifying Cover And Claws
      G04050270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the network gateway ECU.

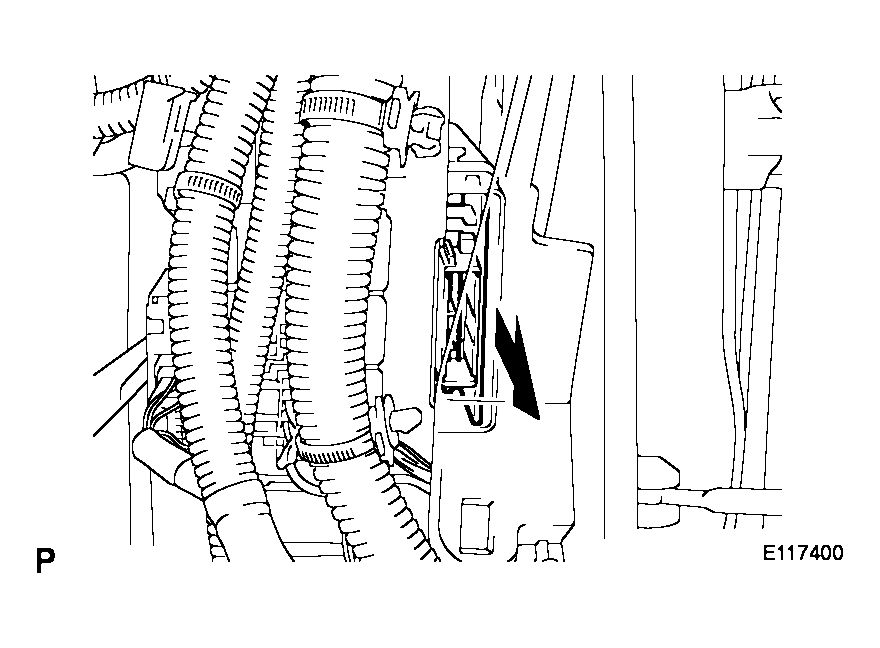

    Fig 2: Identifying Network Gateway ECU
    G04050271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
