Steering Pad Switch: Installation

INSTALL STEERING PAD SWITCH ASSEMBLY
1. Engage the 2 claws and install the steering pad switch.
2. Install the screw.

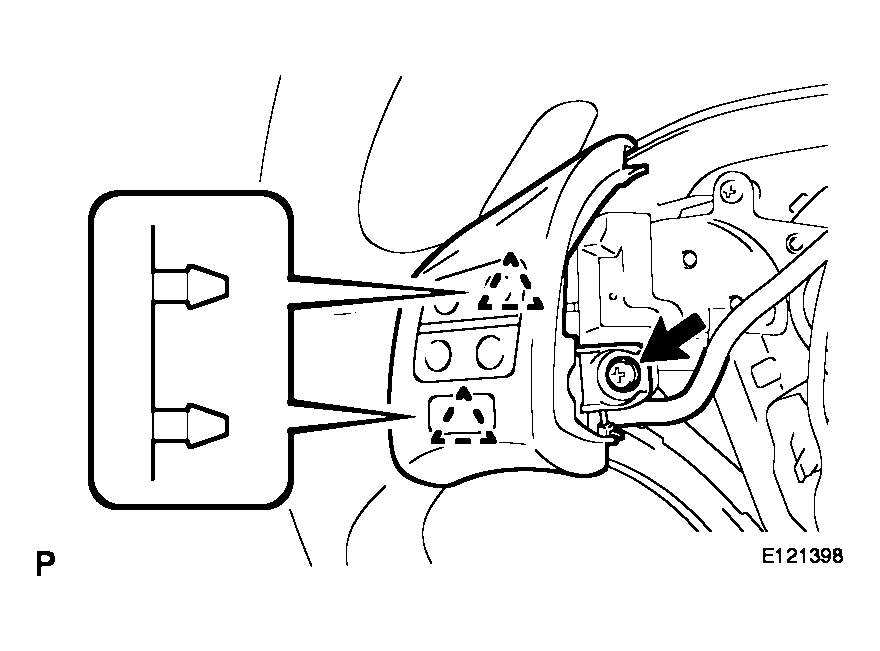

  Fig 1: Identifying Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 2 claws and install the steering pad switch.
4. Install the screw.
5. Connect the connector to the spiral cable.

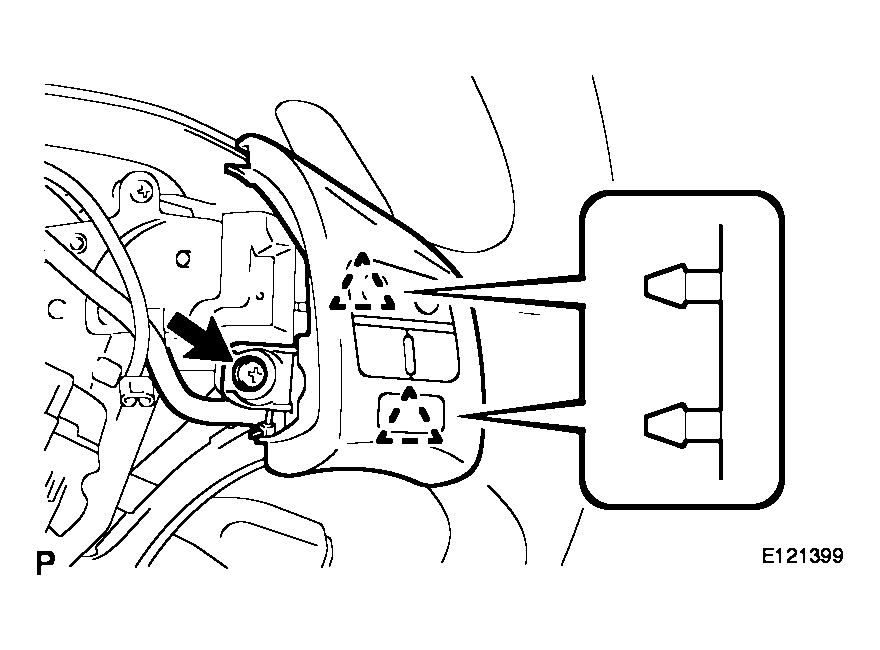

  Fig 2: Identifying Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the cruise connector and install the connector clamp.
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )
INSTALL LOWER NO. 2 STEERING WHEEL COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
INSPECT SRS WARNING LIGHT
(see DIAGNOSIS SYSTEM )

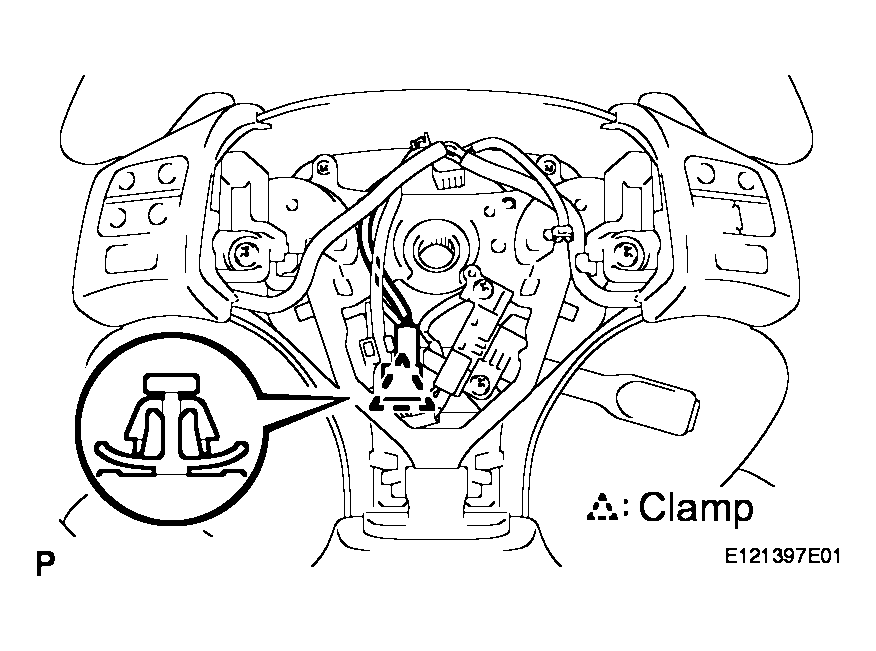

Fig 3: Identifying Cruise Connector And Connector Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
