Inspection Procedure
- INSPECT FUSE (DOME, MPX-B)
- Remove the DOME and MPX-B fuses from the engine room J/B No. 1.
- Measure the resistance of the fuse.
Standard resistance: Below 1 Ω
NG: REPLACE FUSE
OK: Go to next step.
- CHECK WIRE HARNESS (COMBINATION METER ECU - BATTERY AND BODY GROUND)
- Disconnect the J34 ECU connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard voltage
TESTER CONNECTION AND SPECIFIED CONDITION TABLETester Connection Condition Specified Condition B (J34-23) - Body ground Always 10 to 14 V B (J34-24) - Body ground Always 10 to 14 V Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION TABLETester Connection Specified Condition E2 (J34-1) - Body ground Below 1 ohms ES (J34-13) - Body ground Below 1 ohms
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step.
- CHECK RESISTANCE OF COMMUNICATION LINE

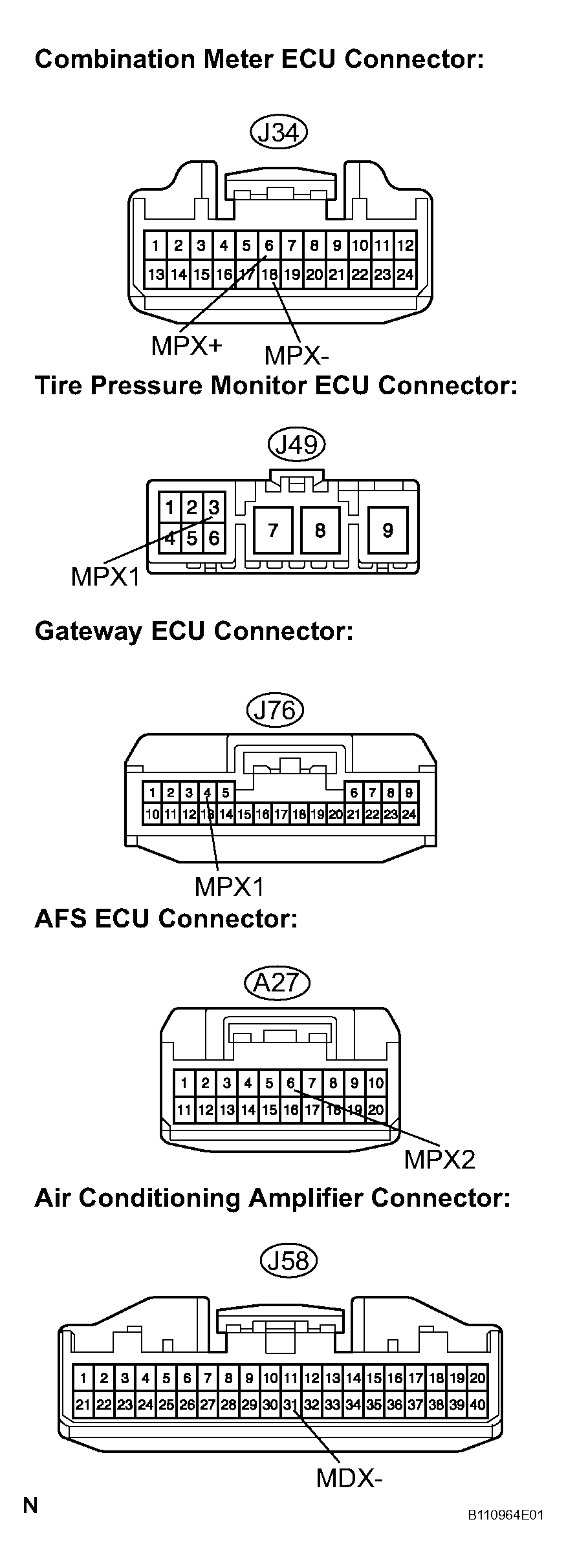

- Disconnect the J34, J49, J76, A27 and J58 ECU connectors.
- Measure the resistance between the specified terminals on the wire harness side connectors.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION TABLETester Connection Specified Condition MPX- (J34-18) - MPX1 (J49-3)(3) Below 1 ohms MPX- (J34-18) - MPI1 (J76-4)(4) Below 1 ohms MPX+ (J34-6) - MPX2 (A27-6)(1) Below 1 ohms MPX+ (J34-6) - MDX- (J58-31)(2) Below 1 ohms (1) w/ Adaptive front-lighting system (2) w/o Adaptive front-lighting system (3) w/ Tire Pressure Warning System (4) w/o Tire Pressure Warning System Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Result
RESULT DESCRIPTION TABLEResult Proceed to Both are OK A One is OK B Both are NG C
B: REPLACE COMBINATION METER ECU AND REPAIR OR REPLACE HARNESS OR CONNECTOR
C: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE COMBINATION METER ECU
