Seat Memory Switch: Components

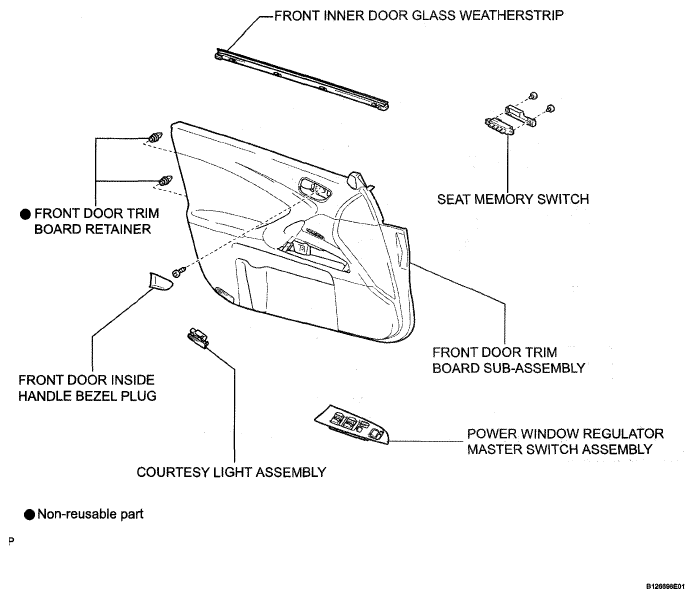

Fig 1: Identifying Seat Memory Switch Components
G05321087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
