Automatic Glare-Resistant EC Mirror and Compass: Notes

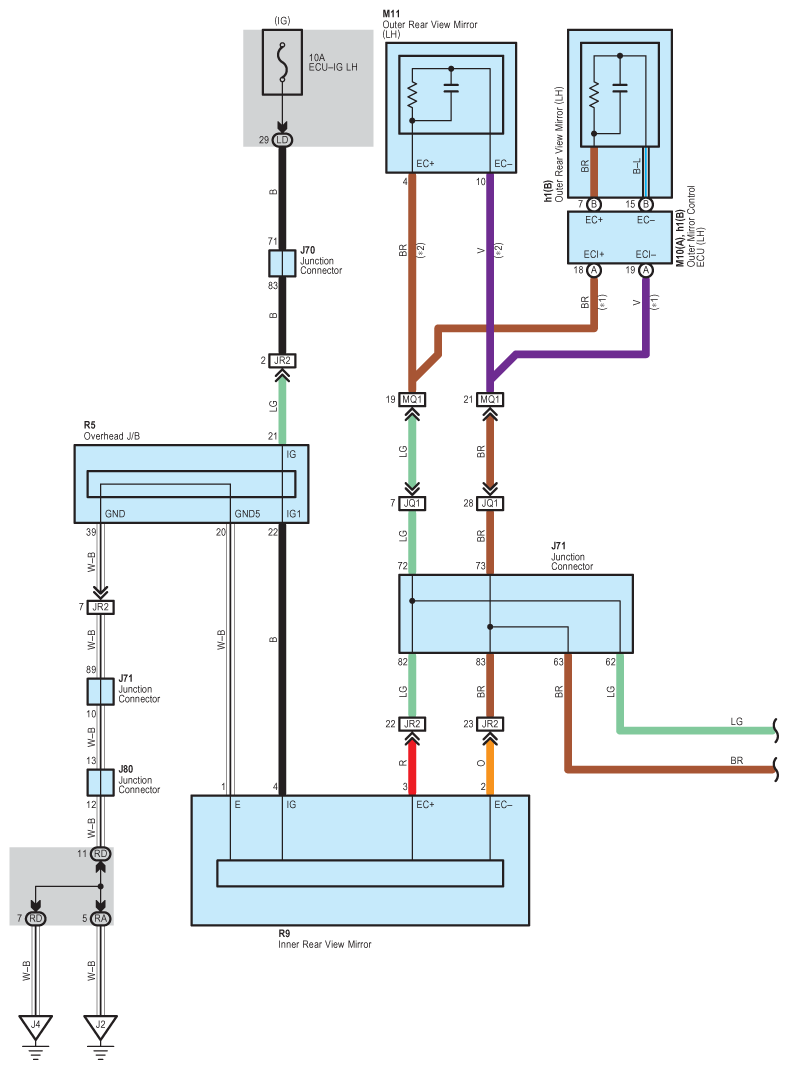

Fig 1: Automatic Glare-Resistant EC Mirror And Compass - Wiring Diagram (1 Of 2)
G08918635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

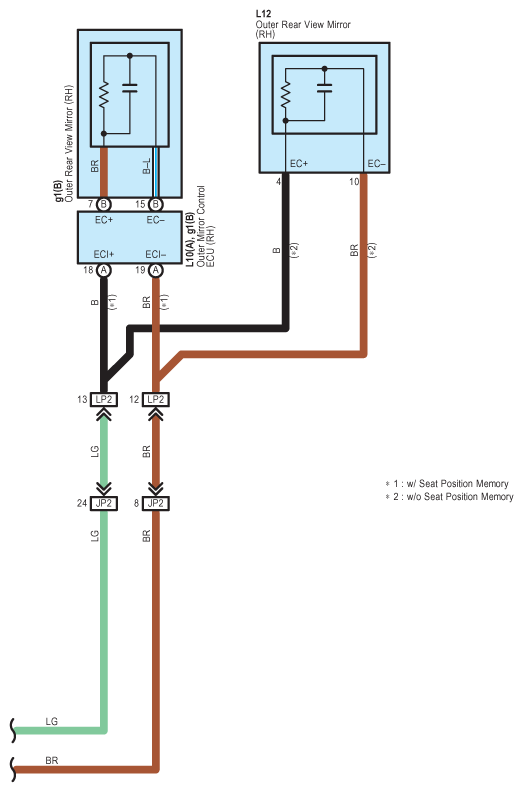

Fig 2: Automatic Glare-Resistant EC Mirror And Compass - Wiring Diagram (2 Of 2)
G08918636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
