Power Seat for Front Passenger's Seat without Memory: Notes

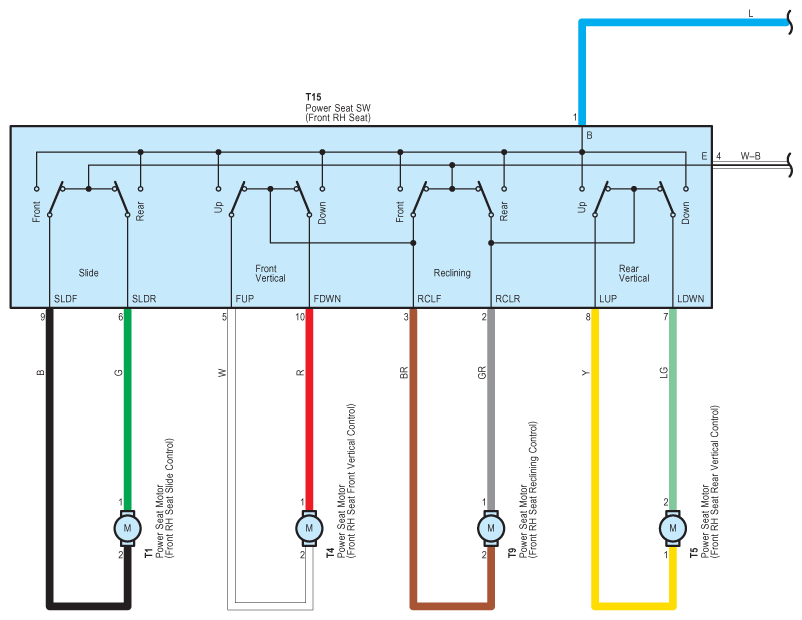

Fig 1: Power Seat For Front Passenger's Seat Without Memory - Wiring Diagram (1 Of 2)
G08918627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

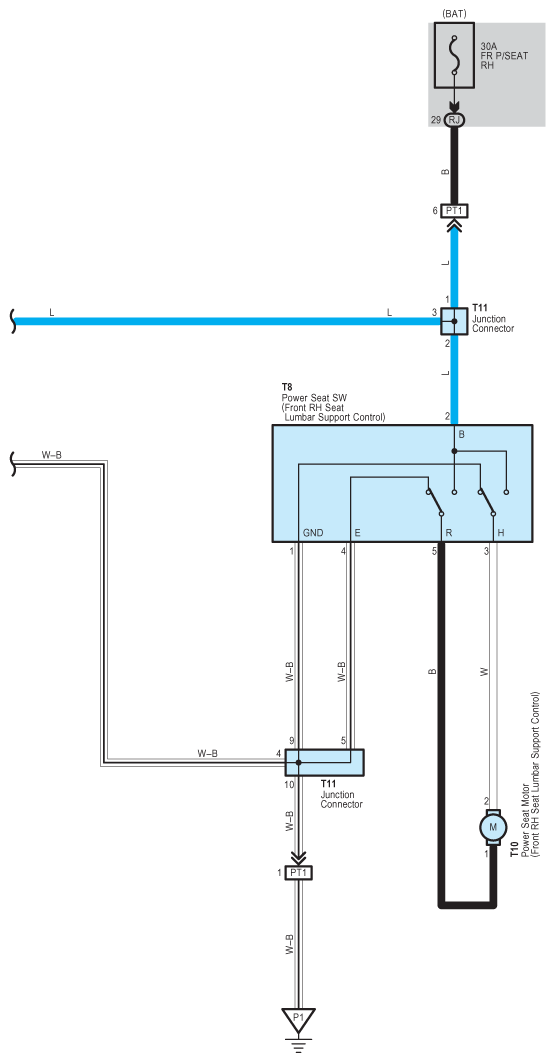

Fig 2: Power Seat For Front Passenger's Seat Without Memory - Wiring Diagram (2 Of 2)
G08918628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
