Engine Switch: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the switch.
    2. Connect the switch connector.

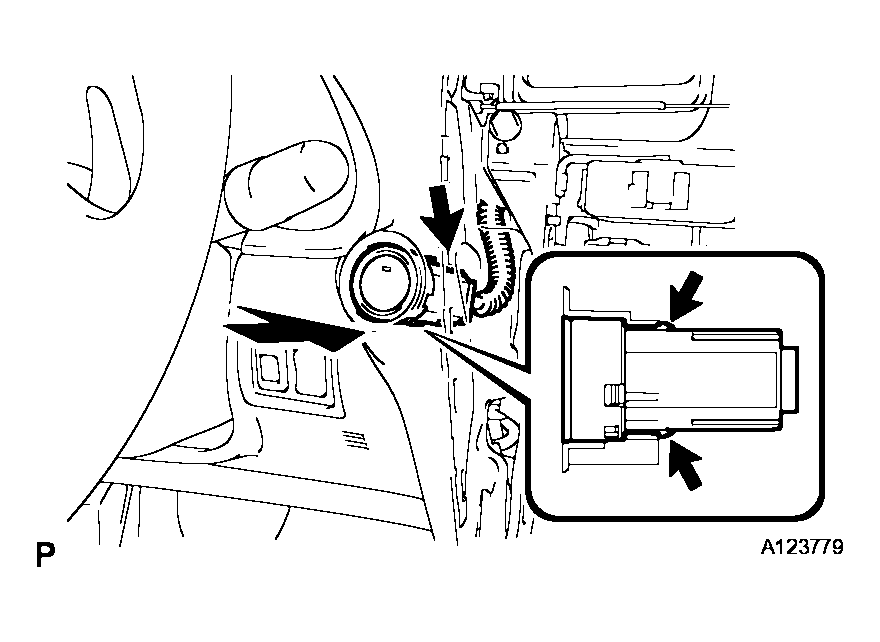

      Fig 1: Identifying Engine Switch
      G04045036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See step 4 in  INSTALLATION  )
  3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See step 8 in  INSTALLATION  )
  4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See step 40 in  INSTALLATION  )
  5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See step 41 in  INSTALLATION  )
  6. INSTALL CONSOLE BOX (See step 42 in  INSTALLATION  )
  7. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See step 43 in  INSTALLATION  )
  8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See step 44 in  INSTALLATION  )
  9. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See step 45 in  INSTALLATION  )
  10. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See step 46 in  INSTALLATION  )
  11. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See step 47 in  INSTALLATION  )
  12. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See step 48 in  INSTALLATION  )
  13. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See step 49 in  INSTALLATION  )
  14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
