Engine Switch Indicator Circuit: Wiring Diagram

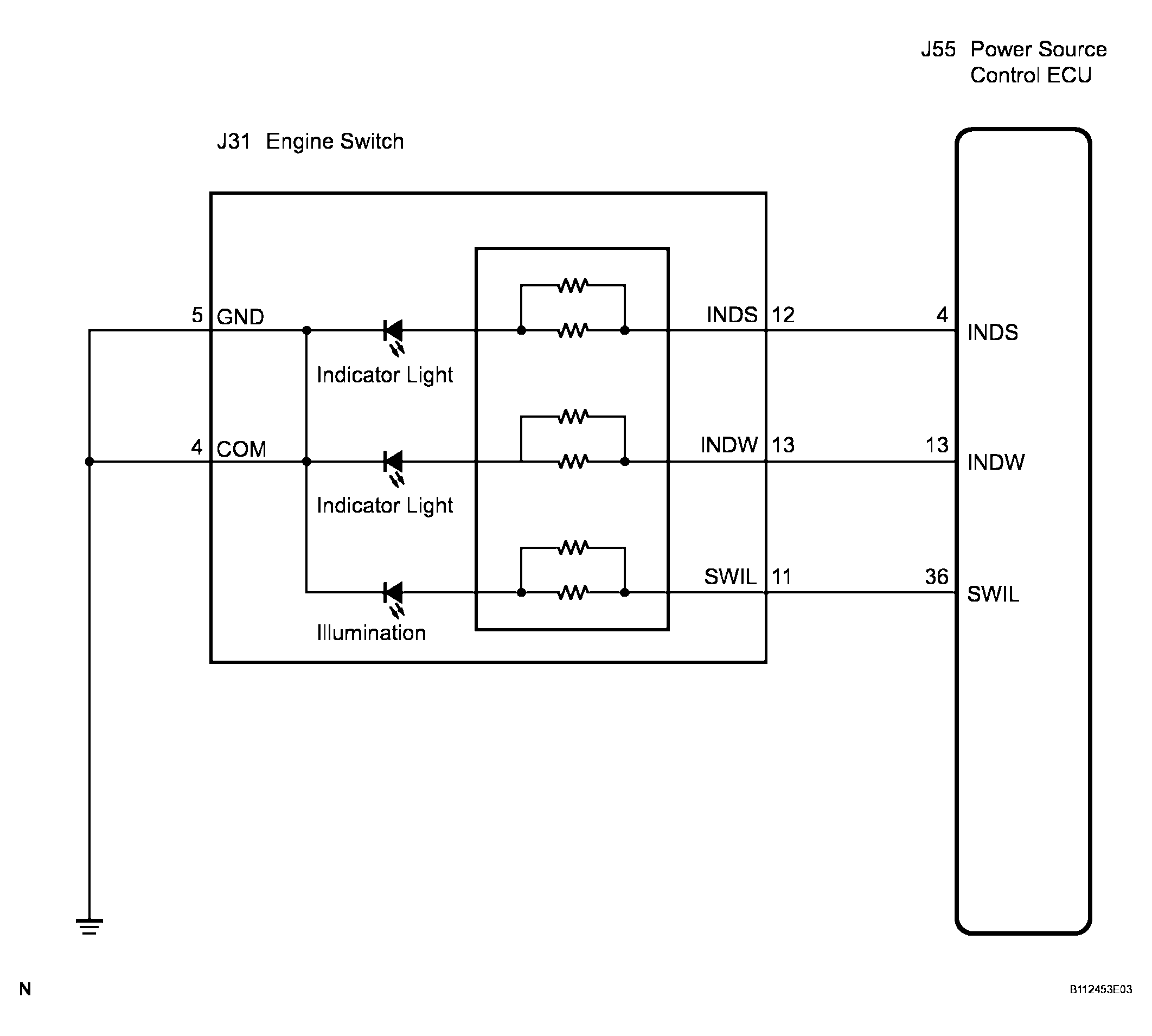

Fig 1: Identifying Engine Switch Indicator Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
