Lexus
›
2007
›
IS 250 AWD
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting (4GR-FSE)
›
Smart Access System With Push-Button Start
›
Parts Location
Parts Location

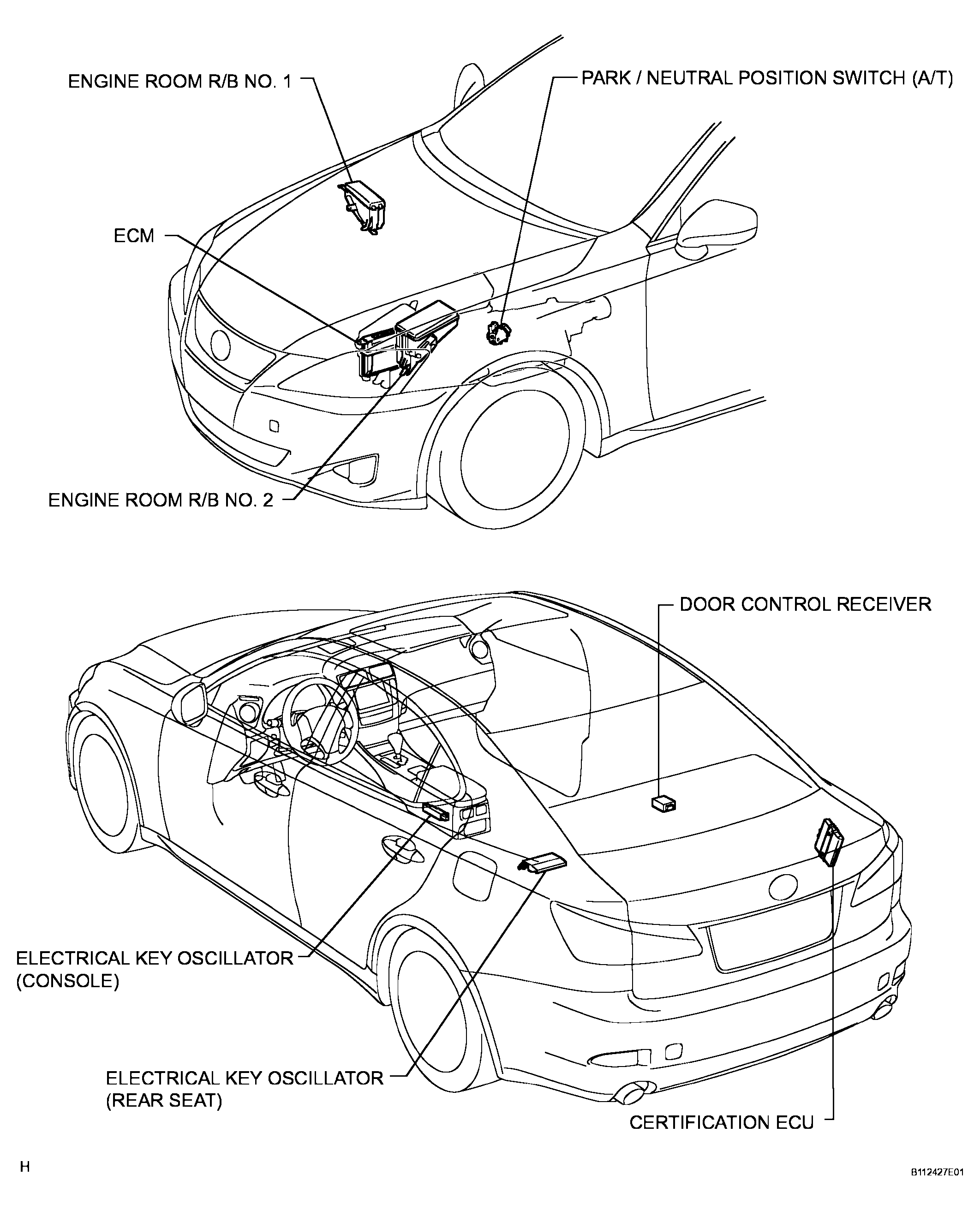

Fig 1: Identifying Starting Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

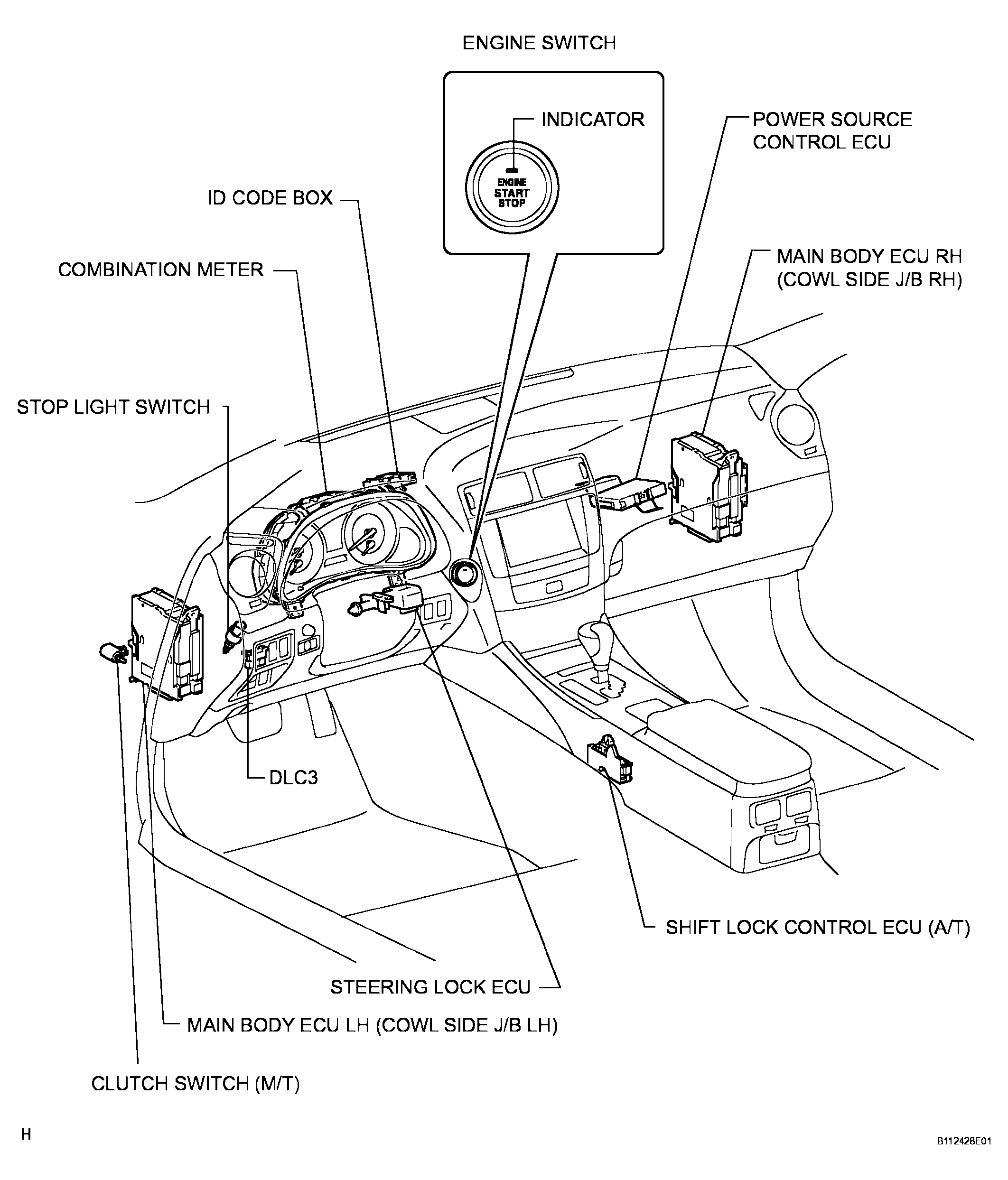

Fig 2: Identifying Starting Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
