Starting (4GR-FSE)
›
Smart Access System With Push-Button Start
›
Power Source Mode does not Change
›
Wiring Diagram
Power Source Mode does not Change: Wiring Diagram

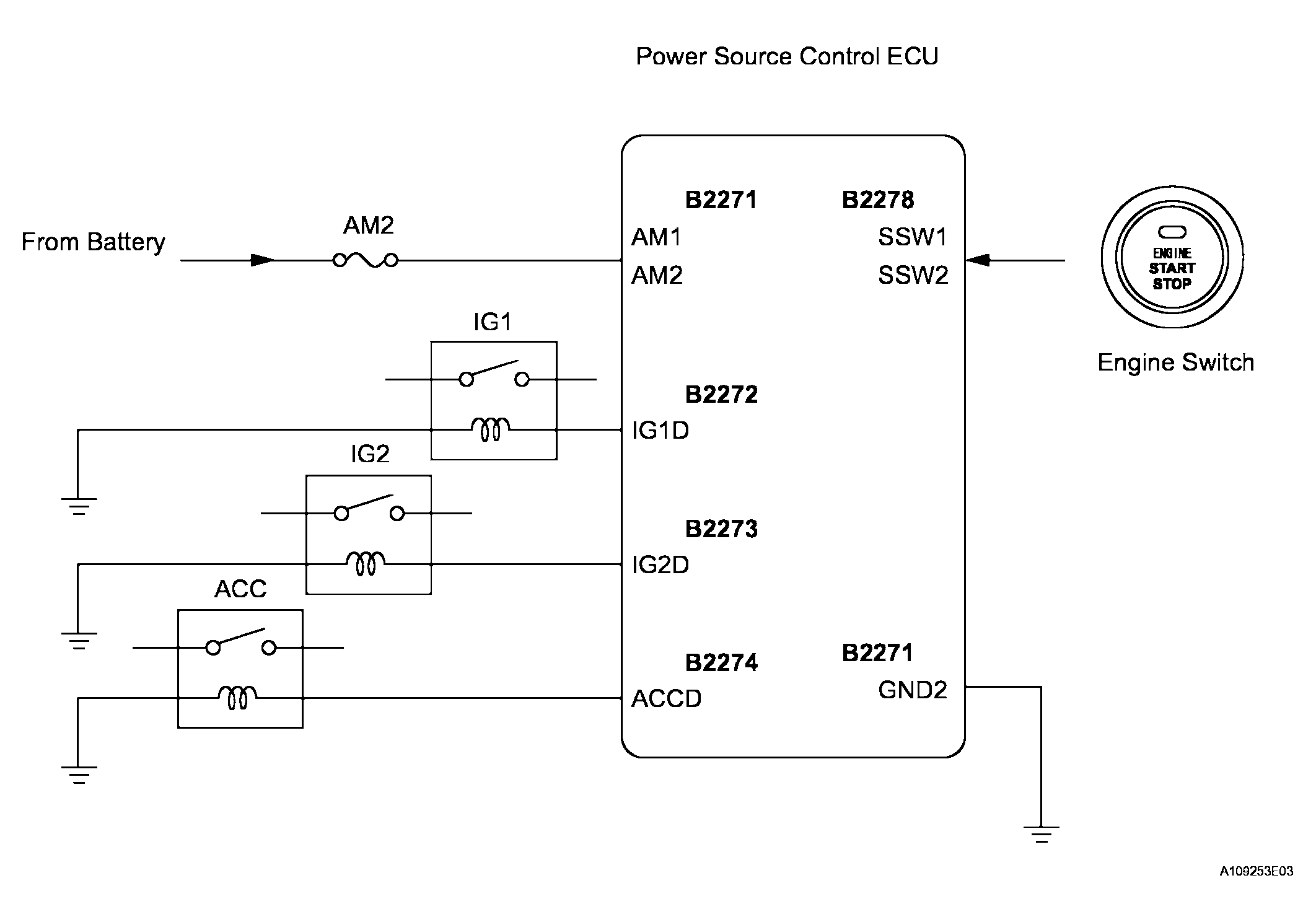

Fig 1: Identifying Power Source Mode Wiring Diagram
