Oil Pump: Components

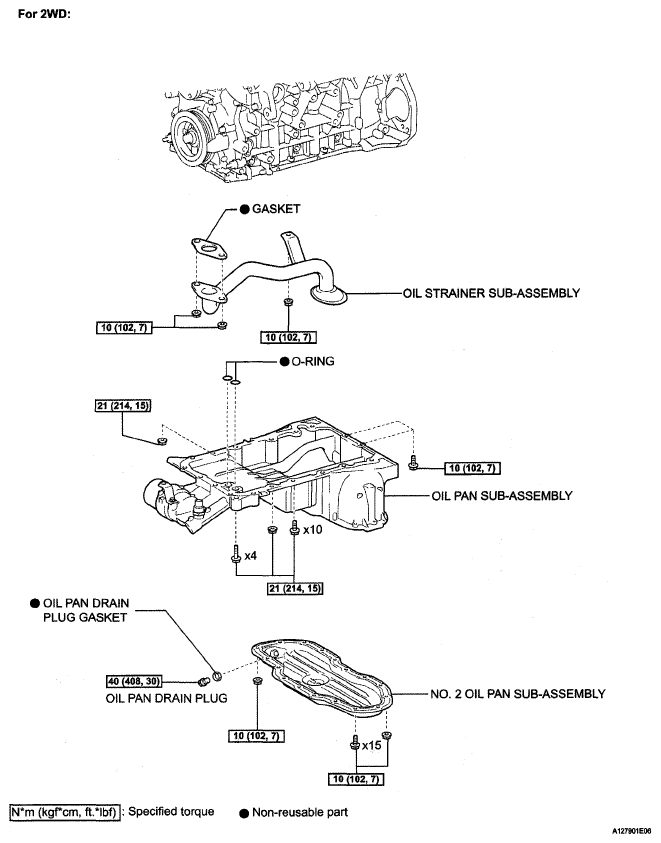

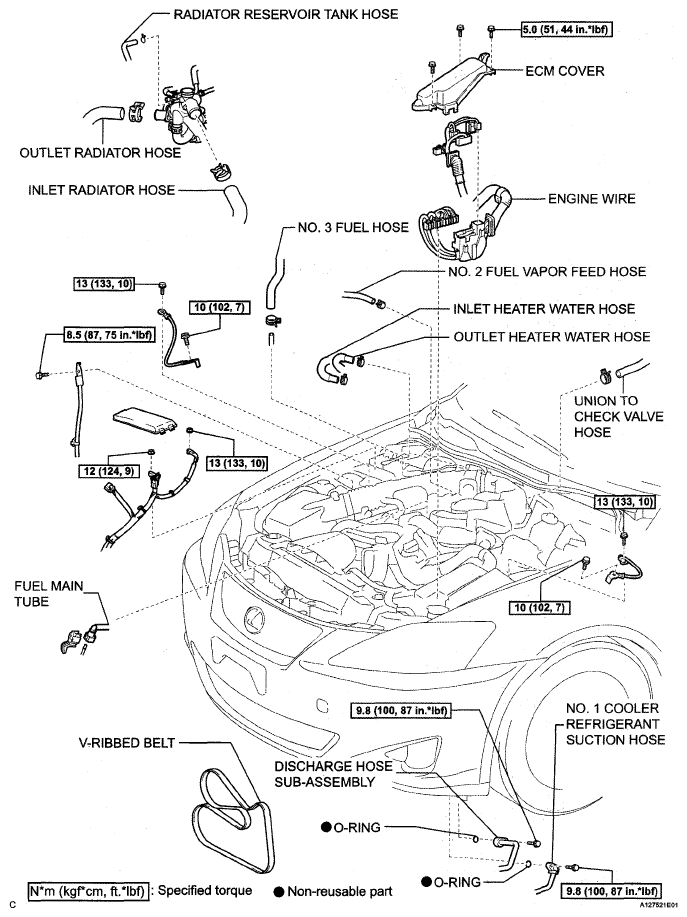

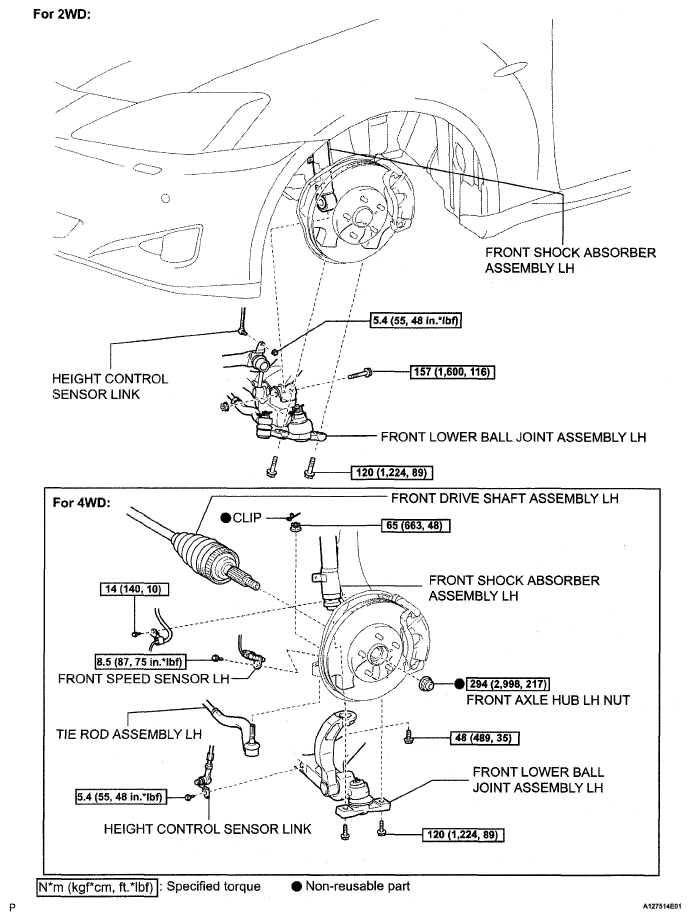

Fig 1: Identifying 4GR-FSE Lubrication Oil Pump Replacement Components With Torque Specification (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

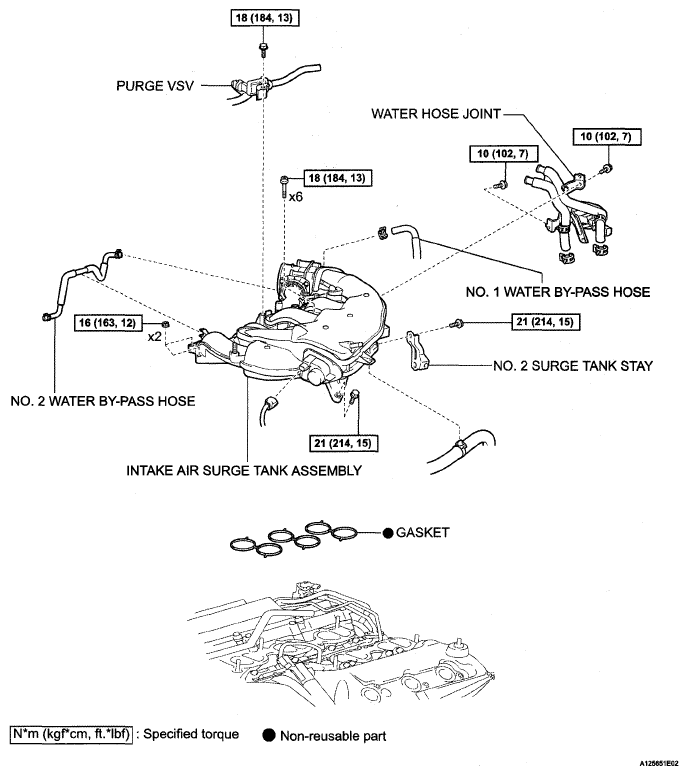

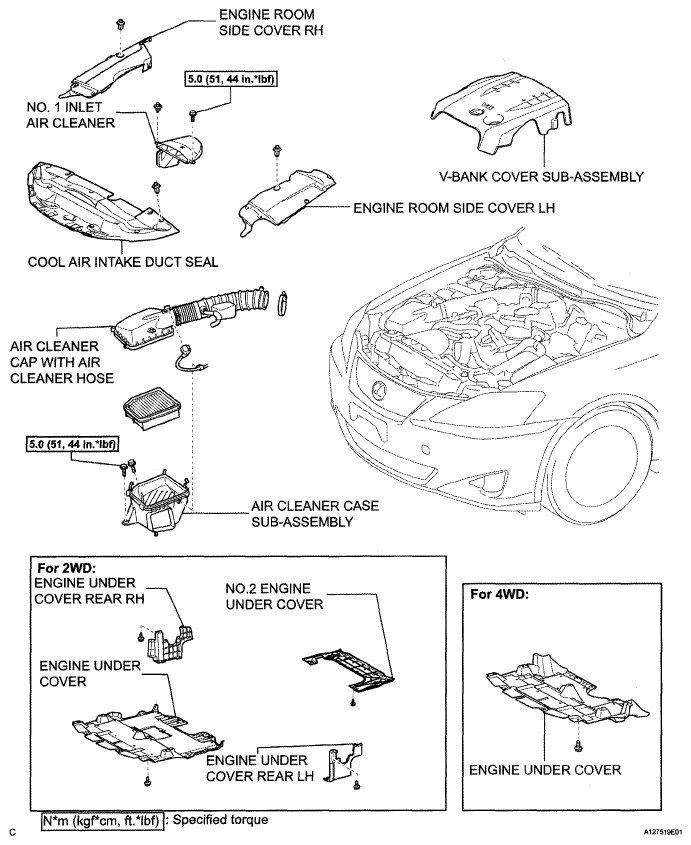

Fig 2: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

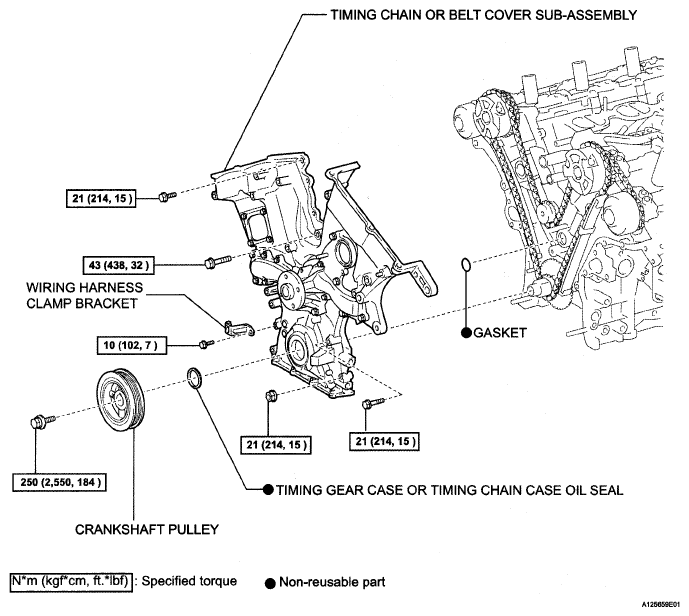

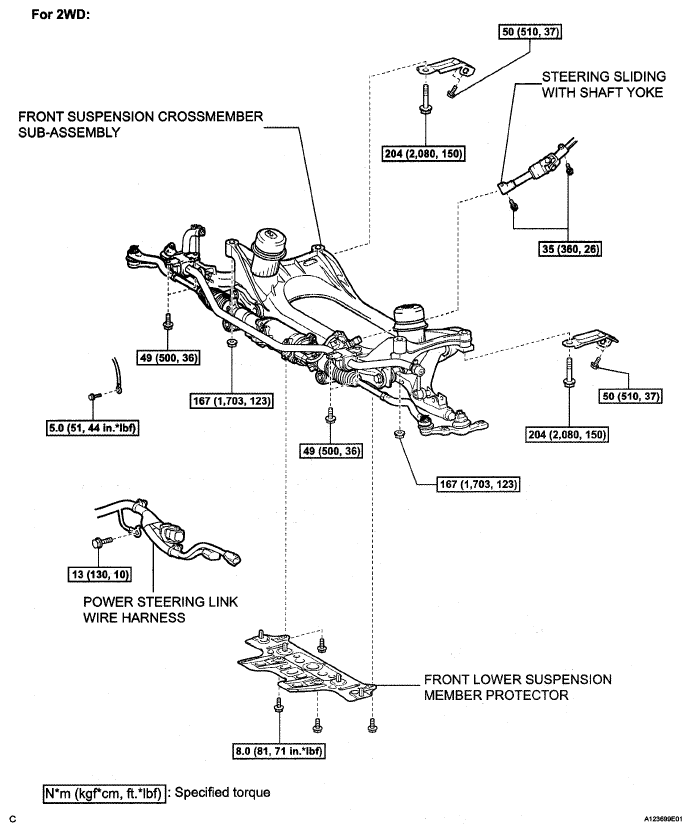

Fig 3: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

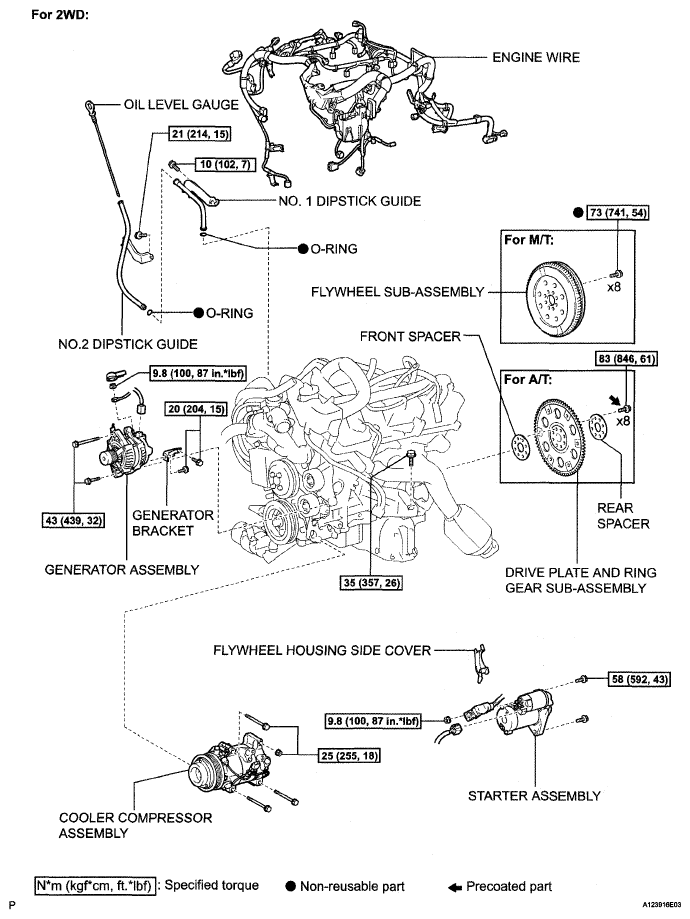

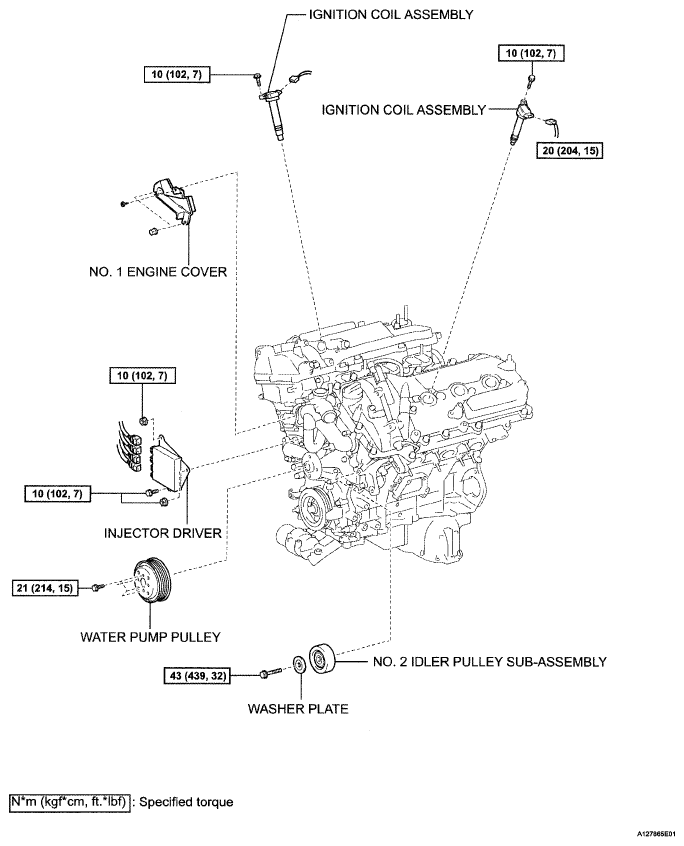

Fig 4: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

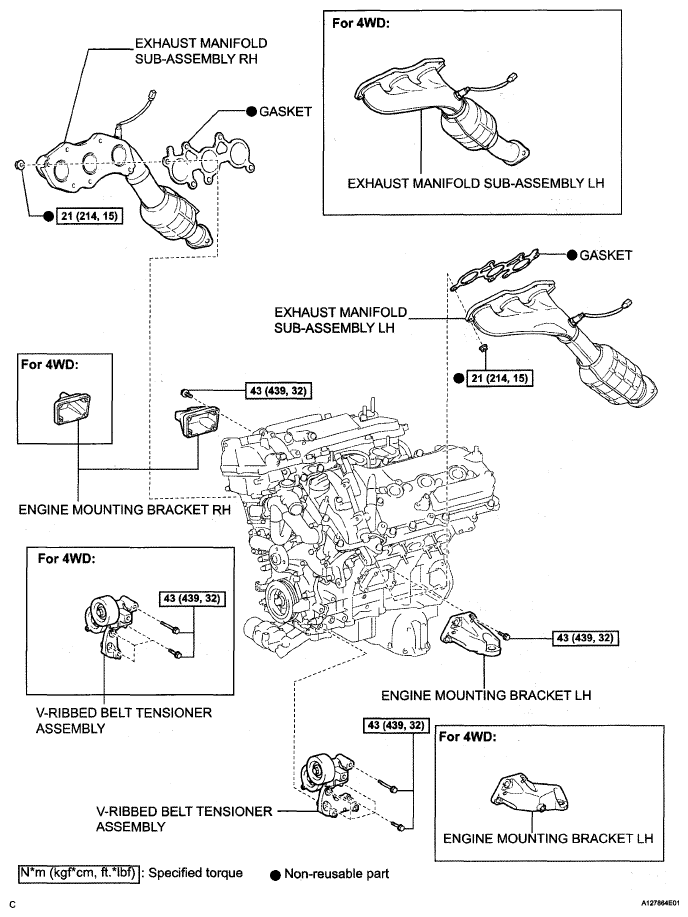

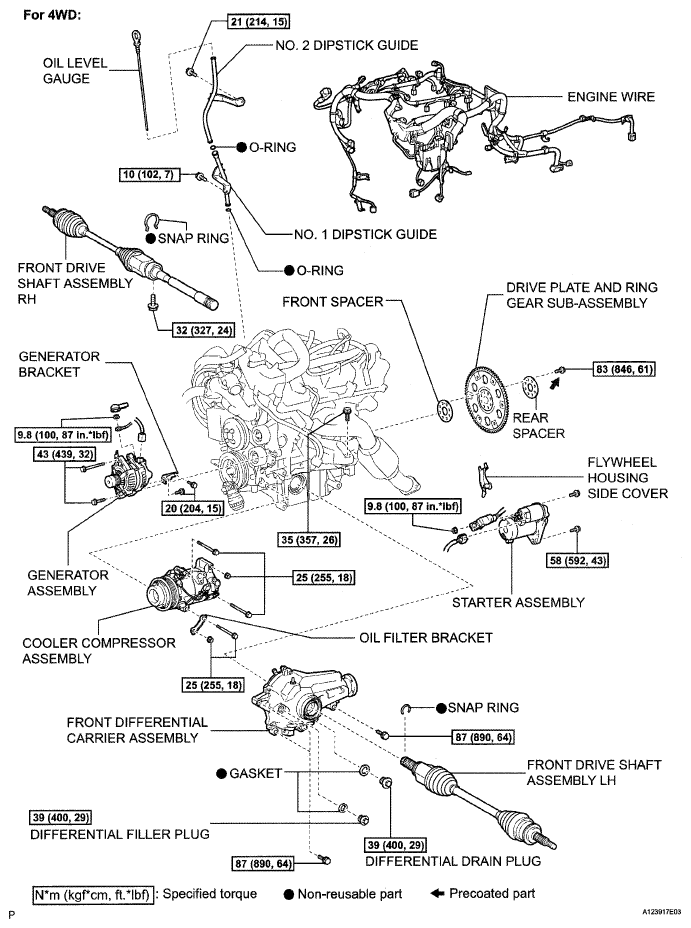

Fig 5: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

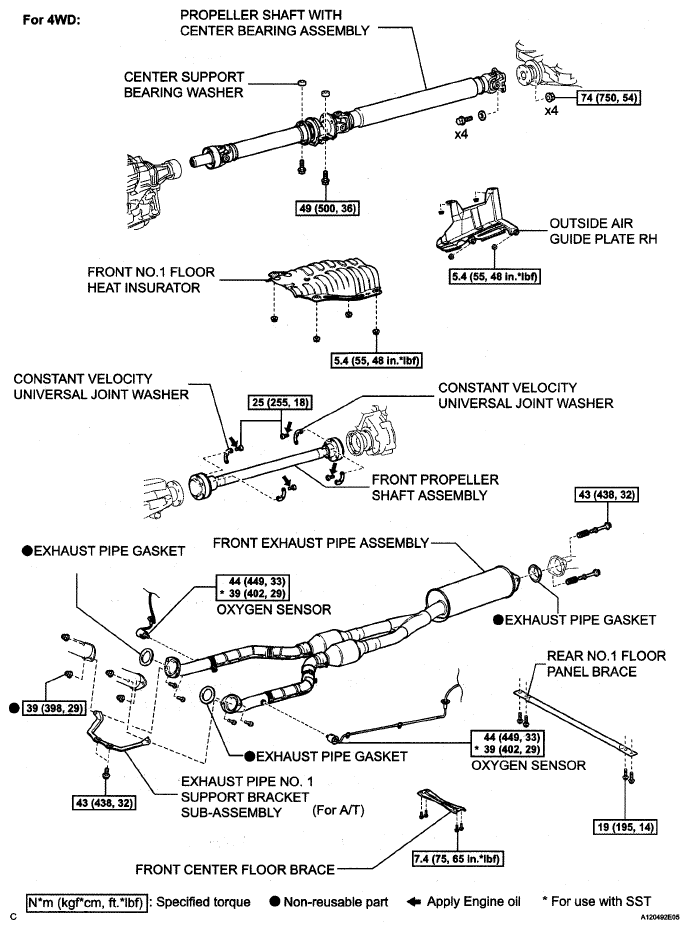

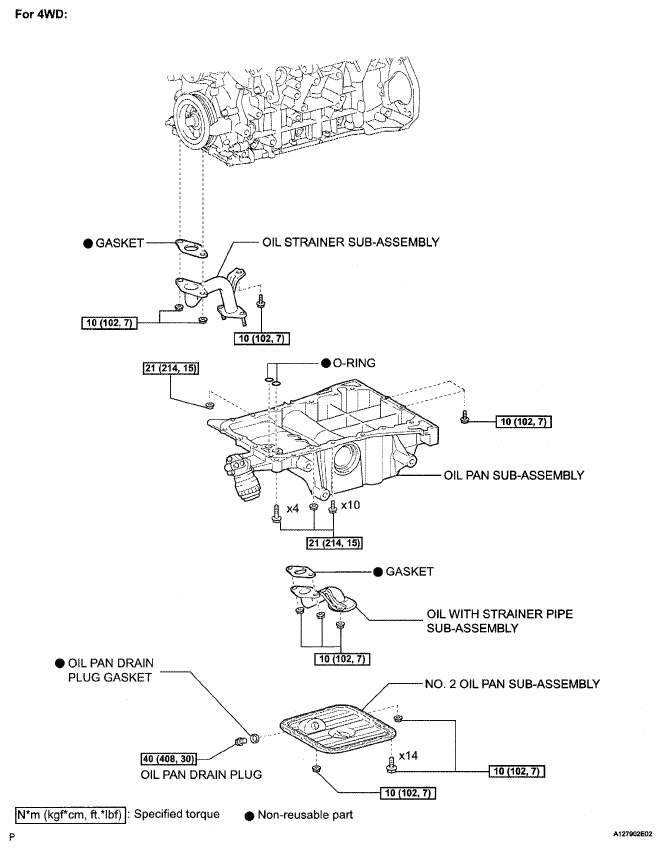

Fig 6: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

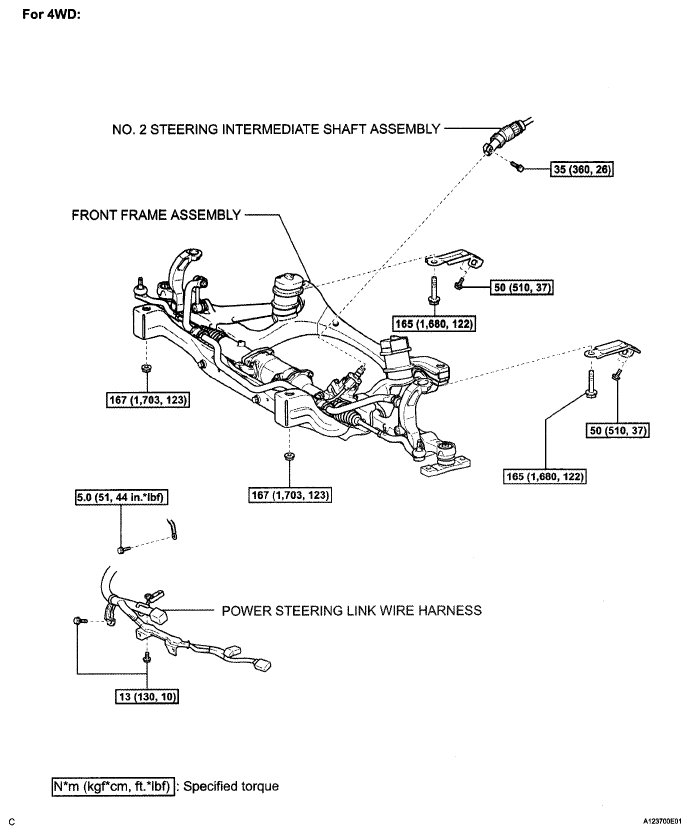

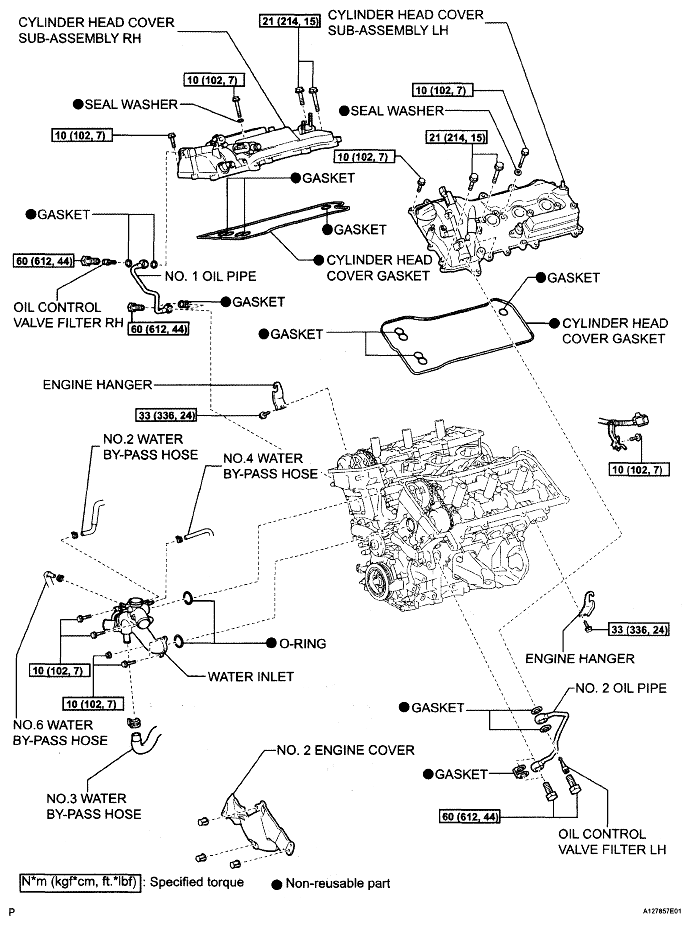

Fig 7: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

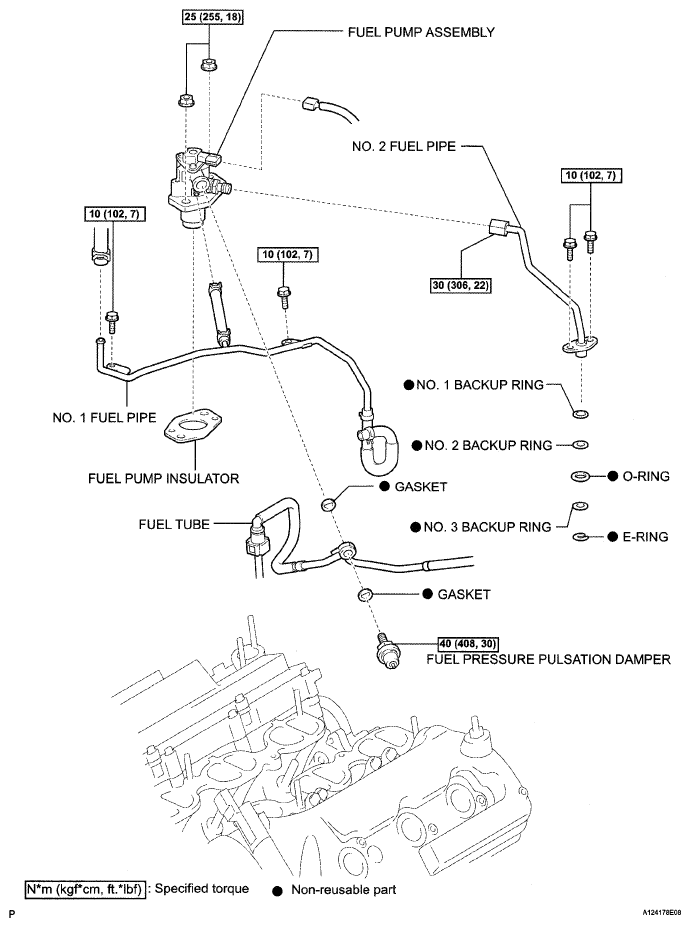

Fig 8: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (12 Of 17)

Fig 13: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (13 Of 17)

Fig 14: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (14 Of 17)

Fig 15: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (15 Of 17)

Fig 16: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (16 Of 17)

Fig 17: 4GR-FSE Lubrication Oil Pump Replacement Replacement Components With Torque Specifications (17 Of 17)
