System Diagram

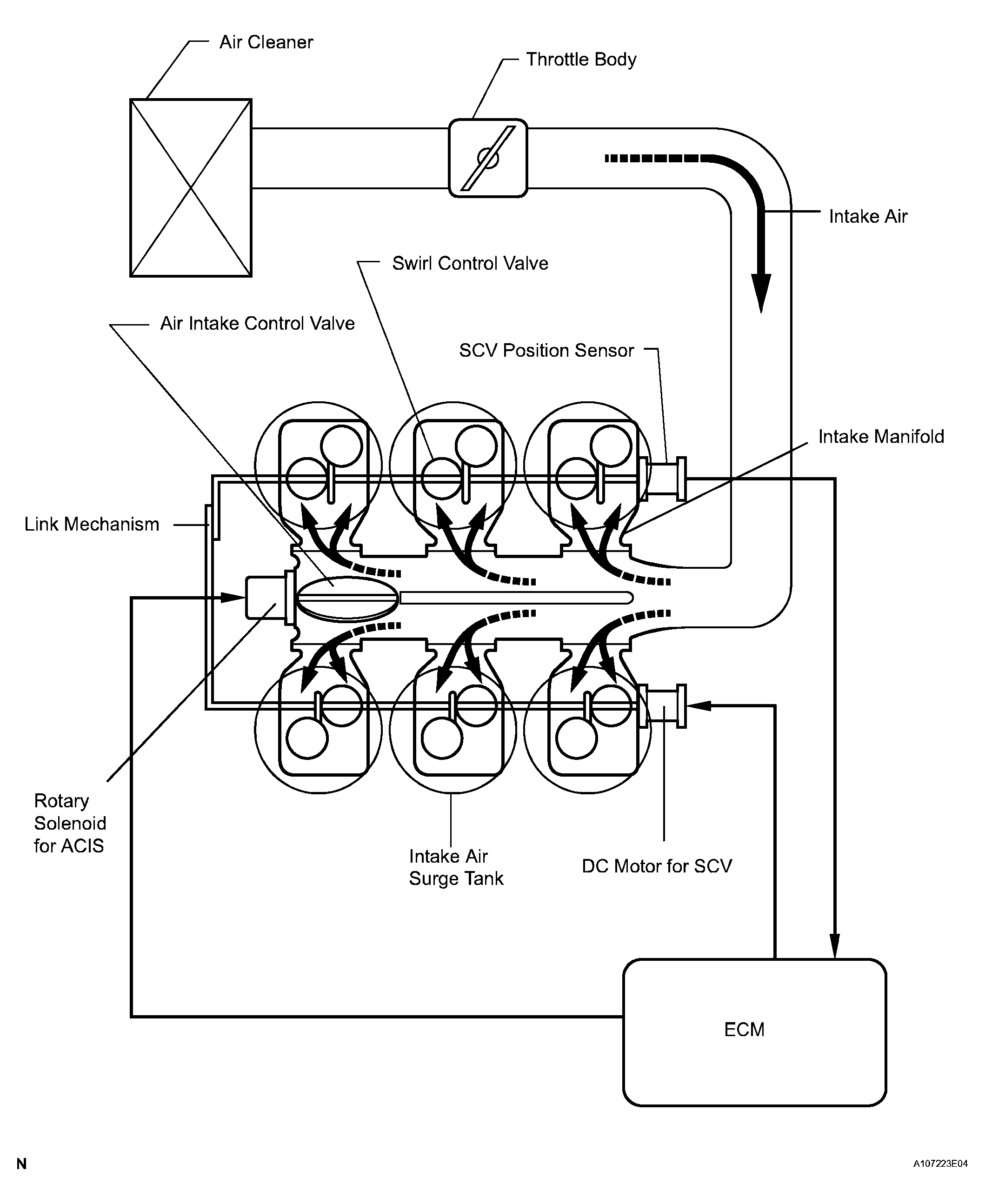

  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM
    Fig 1: Identifying Intake Control System Valve Diagram
    G04044752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

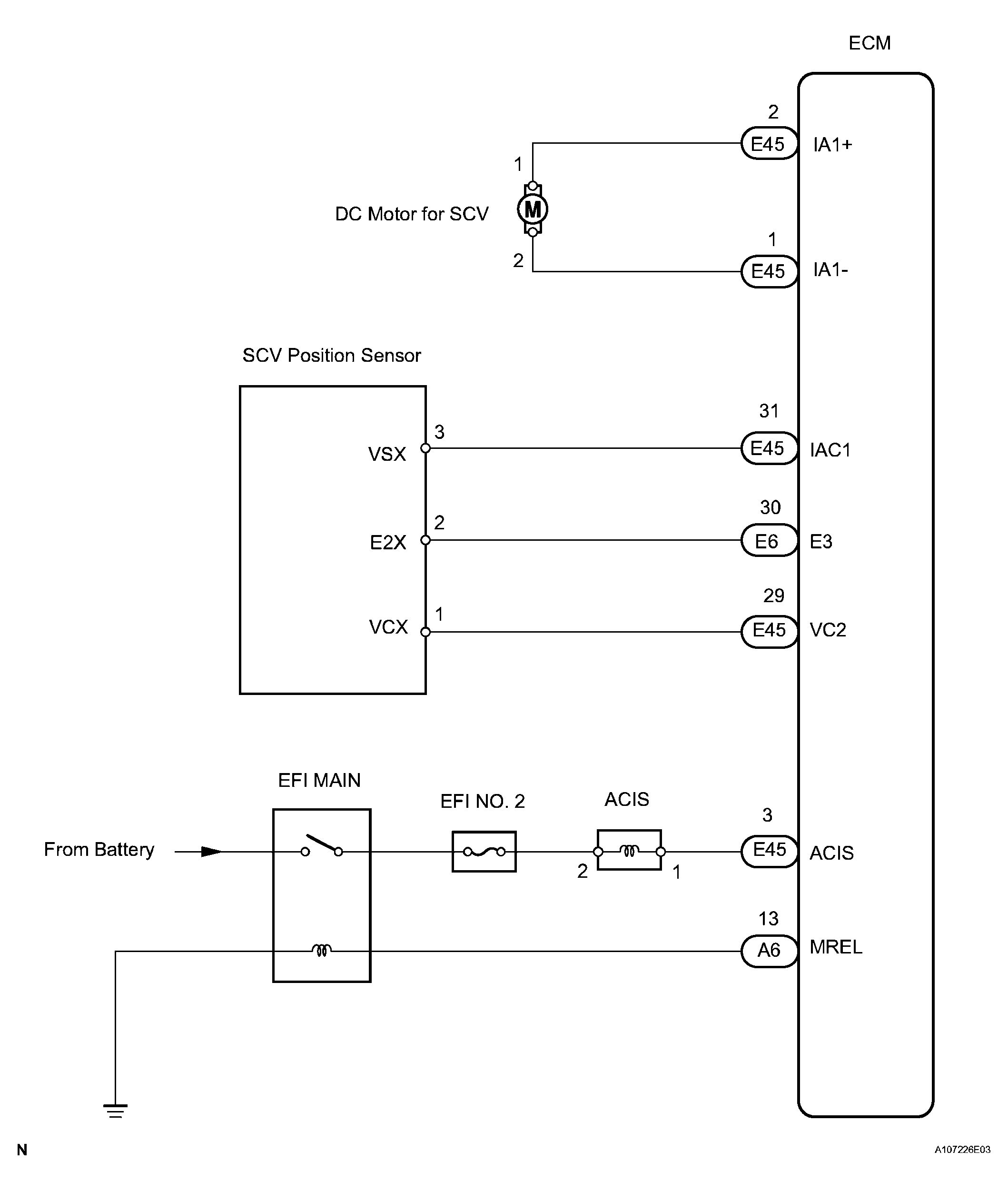

  2. ELECTRICAL WIRING DIAGRAM
Fig 2: Identifying Electrical Wiring Diagram
G04044753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
