Fuel Pressure Sensor: Components

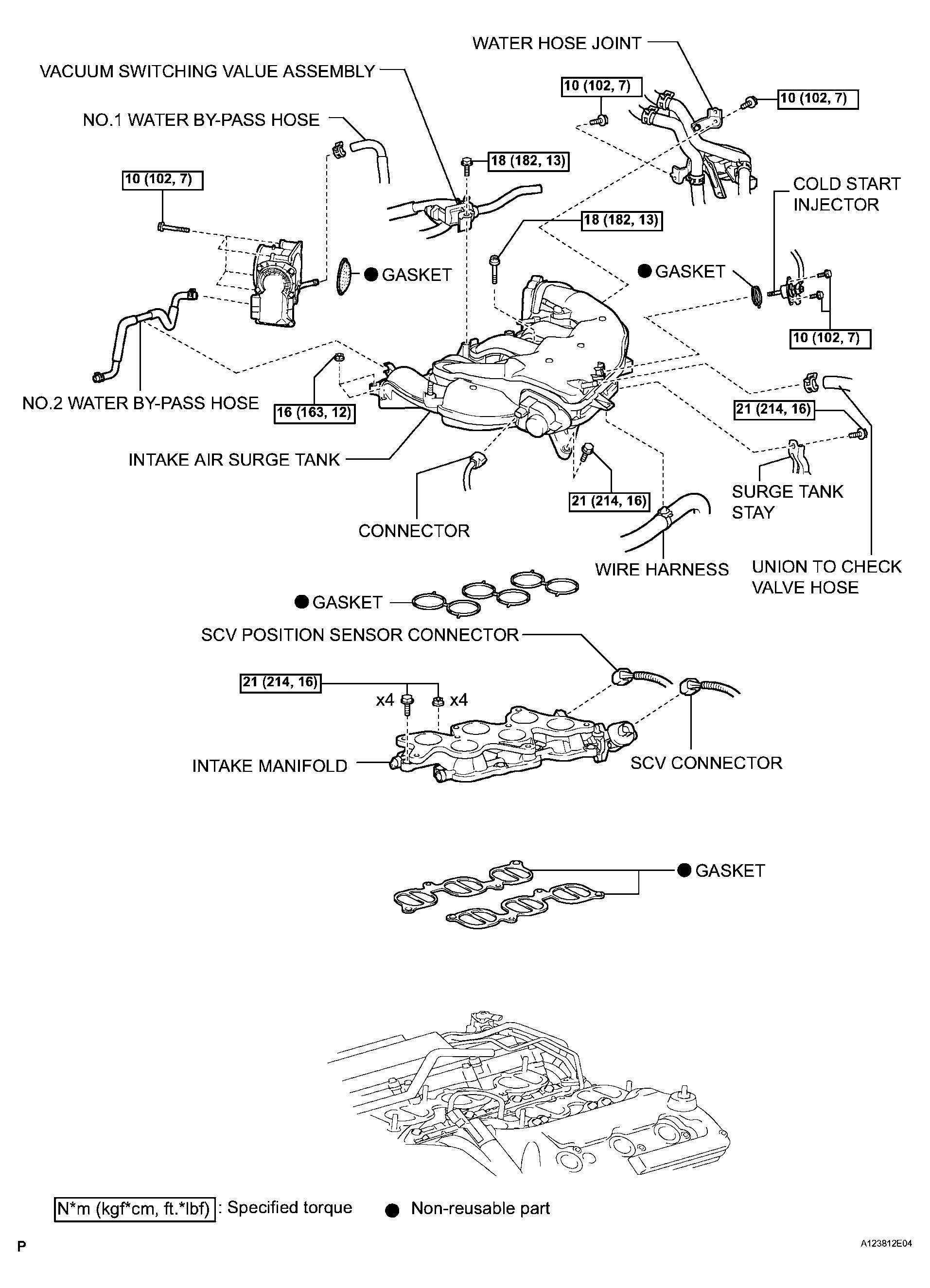

Fig 1: Fuel Pressure Sensor Replacement Components (1 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Pressure Sensor Replacement Components (2 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

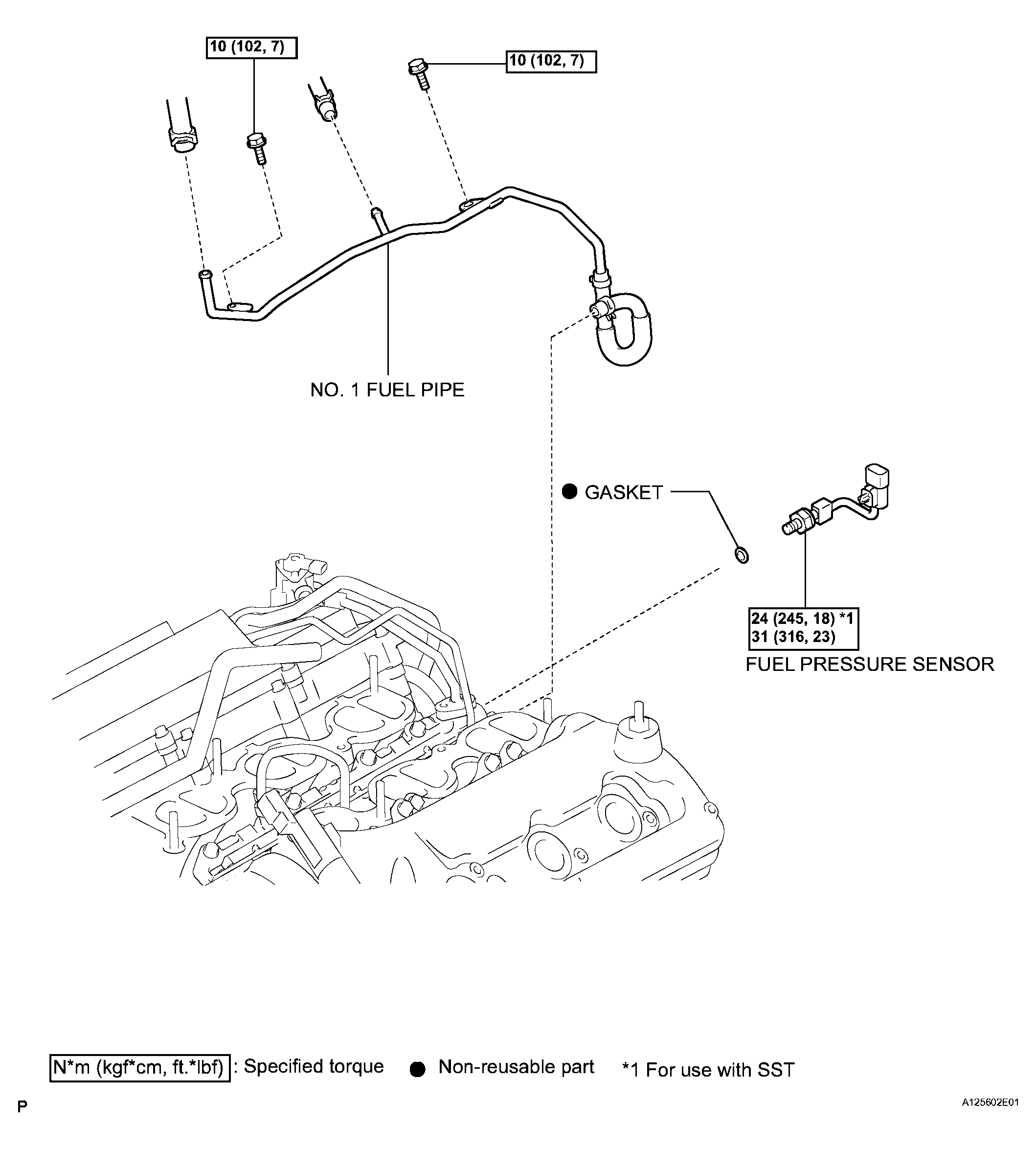

Fig 3: Fuel Pressure Sensor Replacement Components (3 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
