Oil Pump: Components

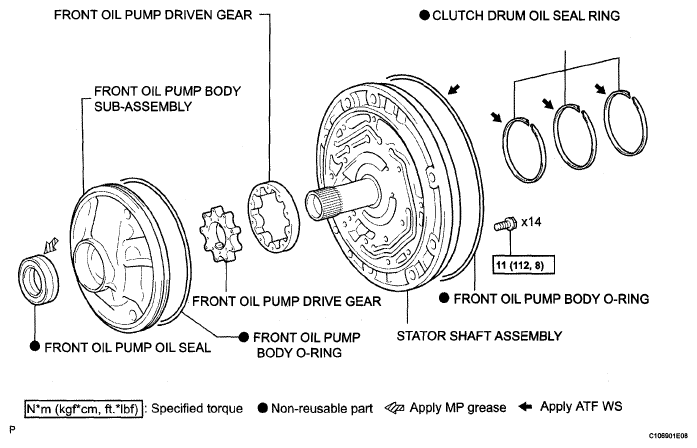

Fig 1: Exploded View Of Oil Pump Components With torque Specification
G05317894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
