Valve Body Assembly: Components

Fig 1: Exploded View Of Shift Solenoid Valve With Torque Specifications (1 Of 2)
G05317593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

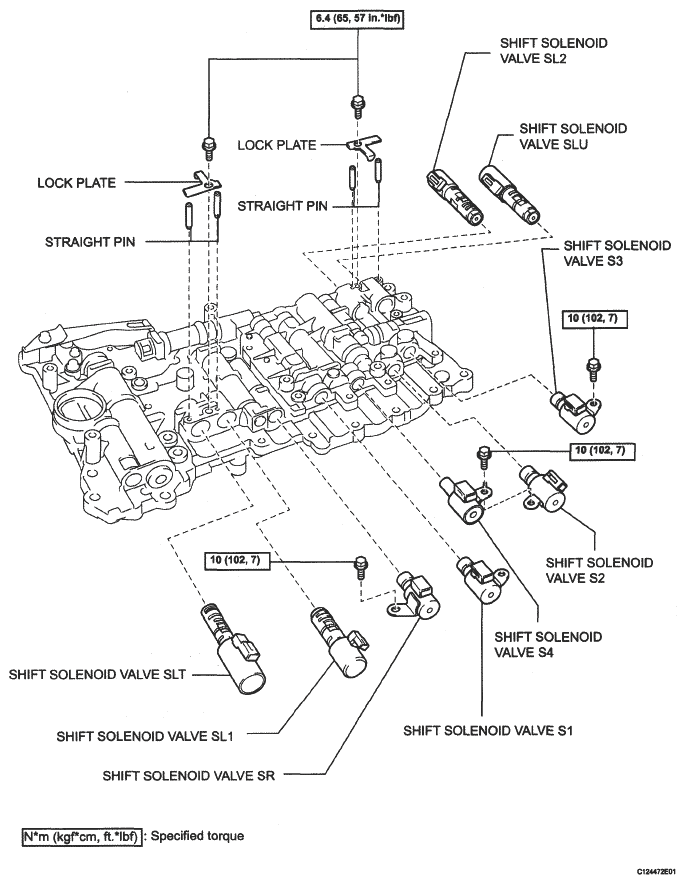

Fig 2: Exploded View Of Shift Solenoid Valve With Torque Specifications (2 Of 2)
G05317594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
