Transfer Valve Body Assembly: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Transfer Valve Body Assembly Components With Toque Specifications (1 Of 2)
G05318781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

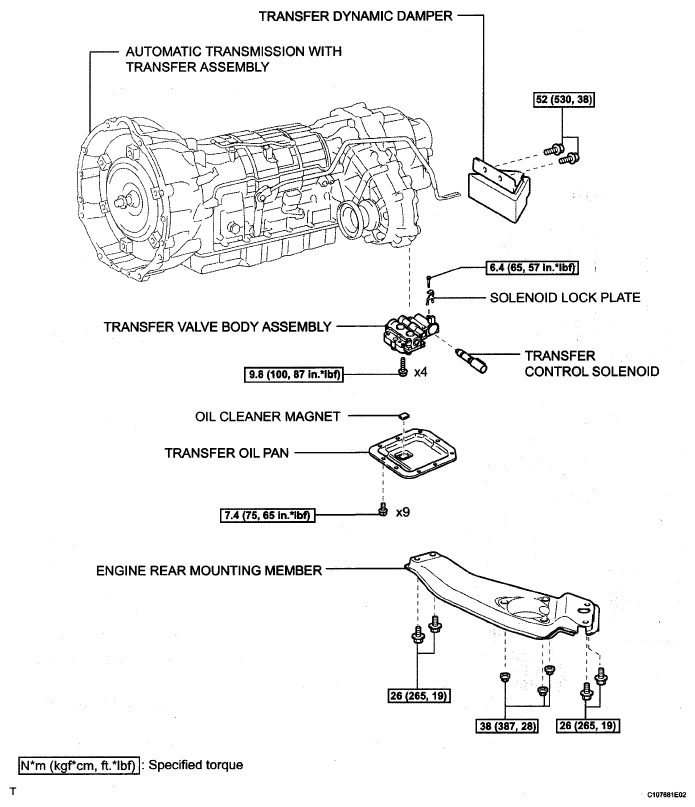

Fig 2: Identifying Transfer Valve Body Assembly Components With Toque Specifications (2 Of 2)
G05318782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
