Section 4 (Transfer Case)
›
Transfer Wire
›
Components
Transfer Wire: Components
WARNING:
This page is about a different variant/trim than selected.

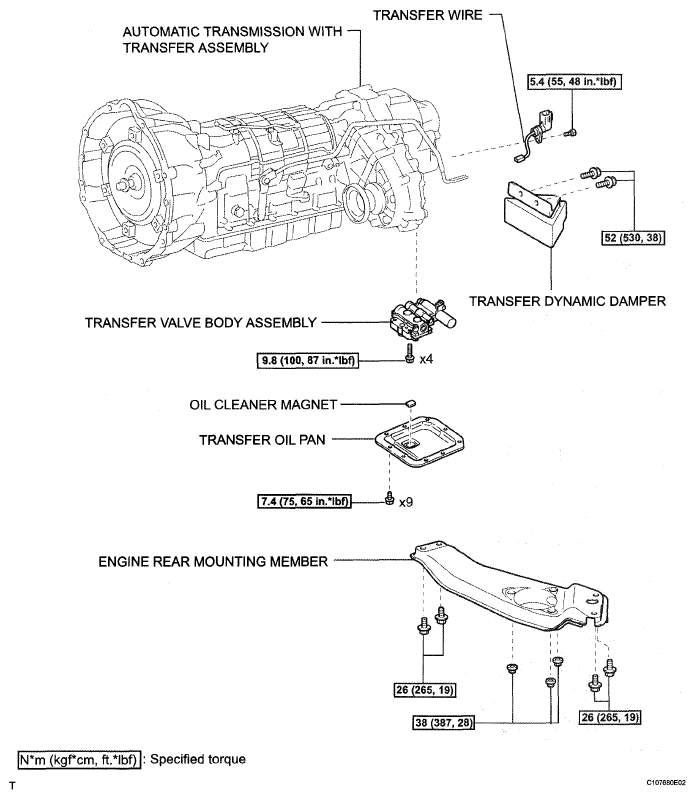

Fig 1: Identifying Transfer Wire Components With Toque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transfer Wire Components With Toque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
