Input Shaft: Components

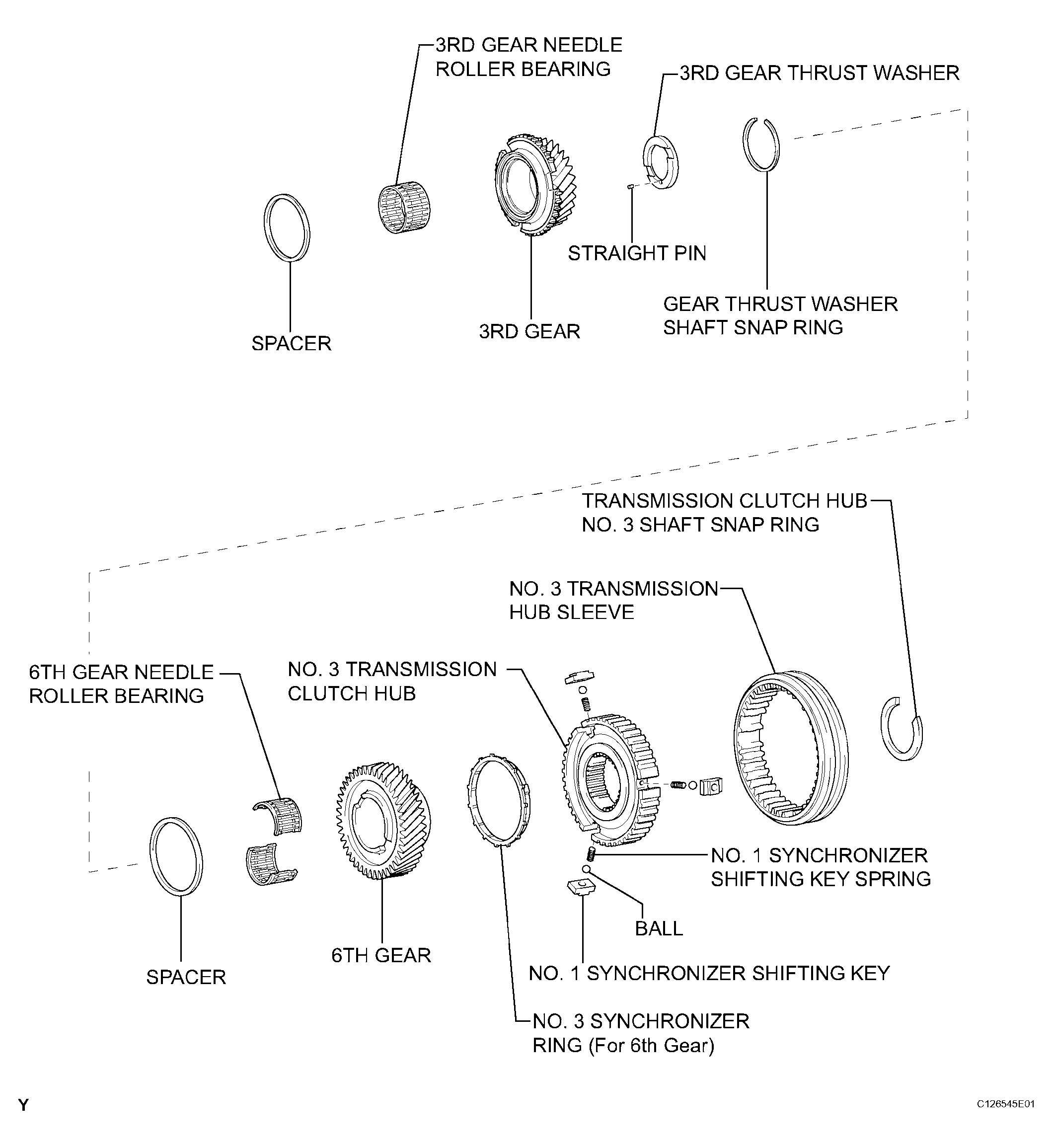

Fig 1: Identifying Input Shaft Components (1 Of 2)
G04046555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

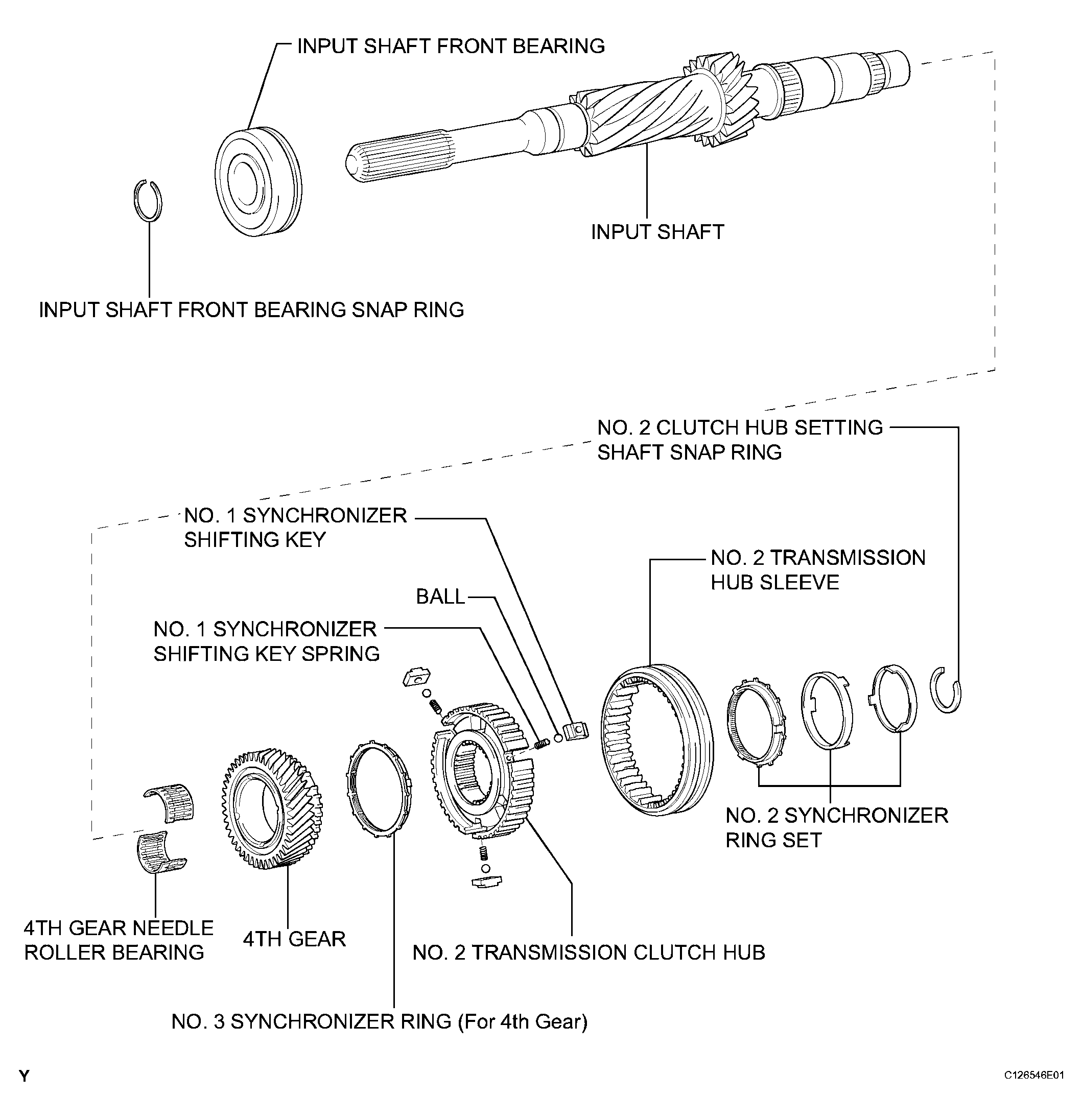

Fig 2: Identifying Input Shaft Components (2 Of 2)
G04046556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
