Manual Transmission Assembly: Components

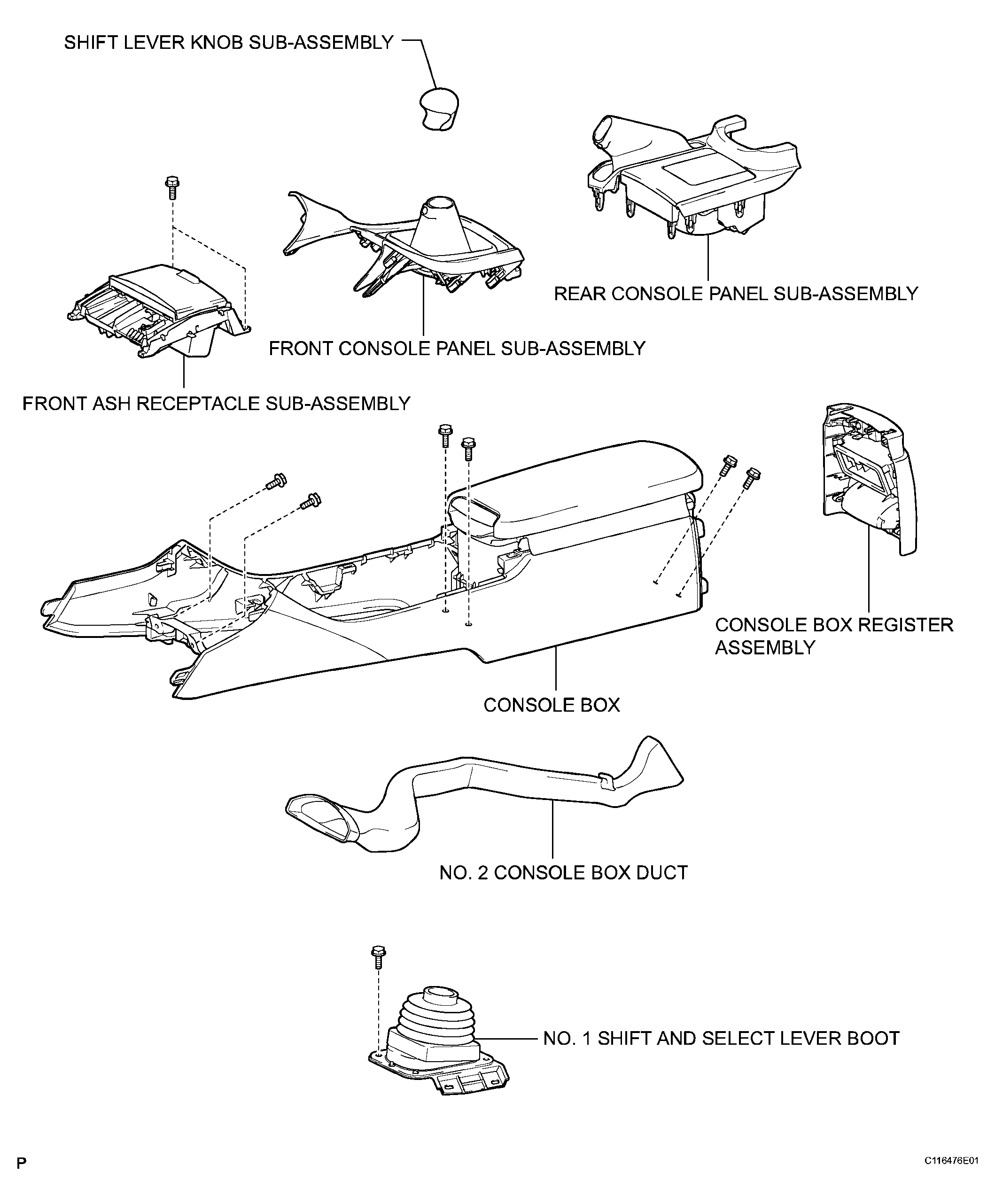

Fig 1: Identifying Manual Transmission Assembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Manual Transmission Assembly Replacement Components With Torque Specifications (2 Of 3)

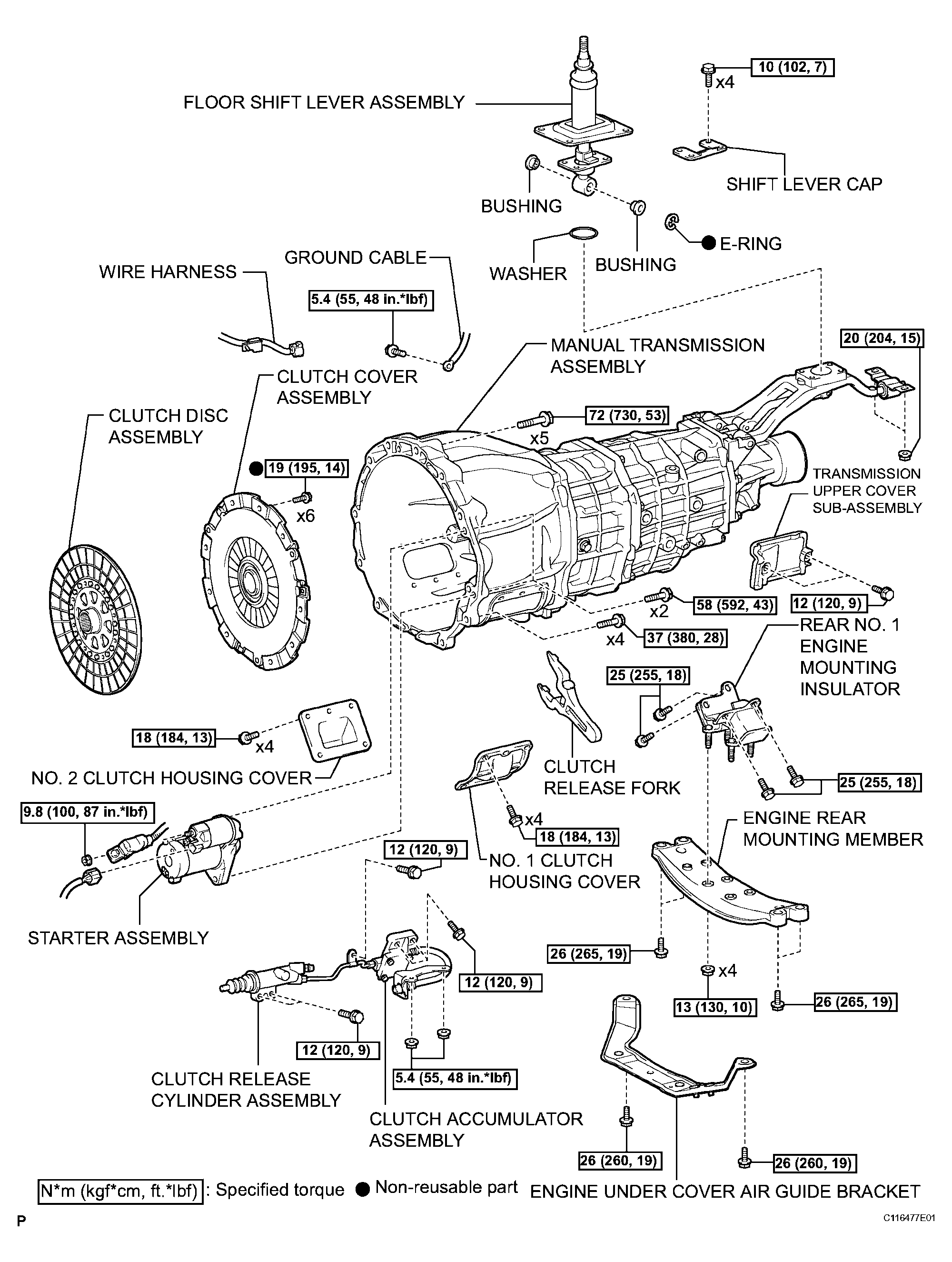

Fig 3: Manual Transmission Assembly Replacement Components With Torque Specifications (3 Of 3)
