Fail-Safe Table

FAIL-SAFE FUNCTION
1. When communication fails in any of the CAN bus lines (communication lines), a fail-safe function(s) will operate. The fail-safe function that is specified for each system operates to prevent those systems from malfunctioning.
2. Effects on each system when communication is impossible. (For further details, see the references for each system.)

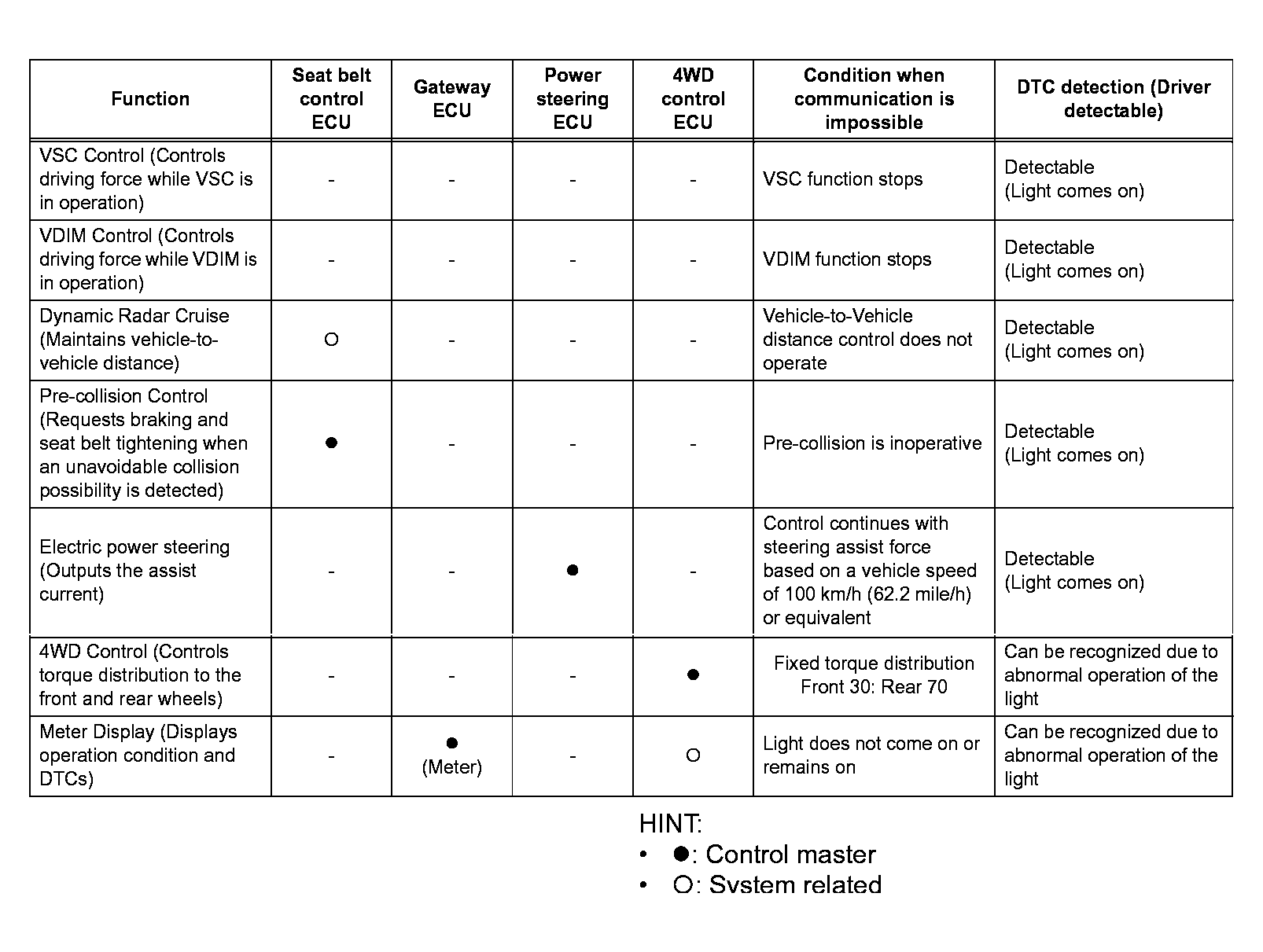

Fig 1: Identifying Fail-Safe Table (1 Of 2)

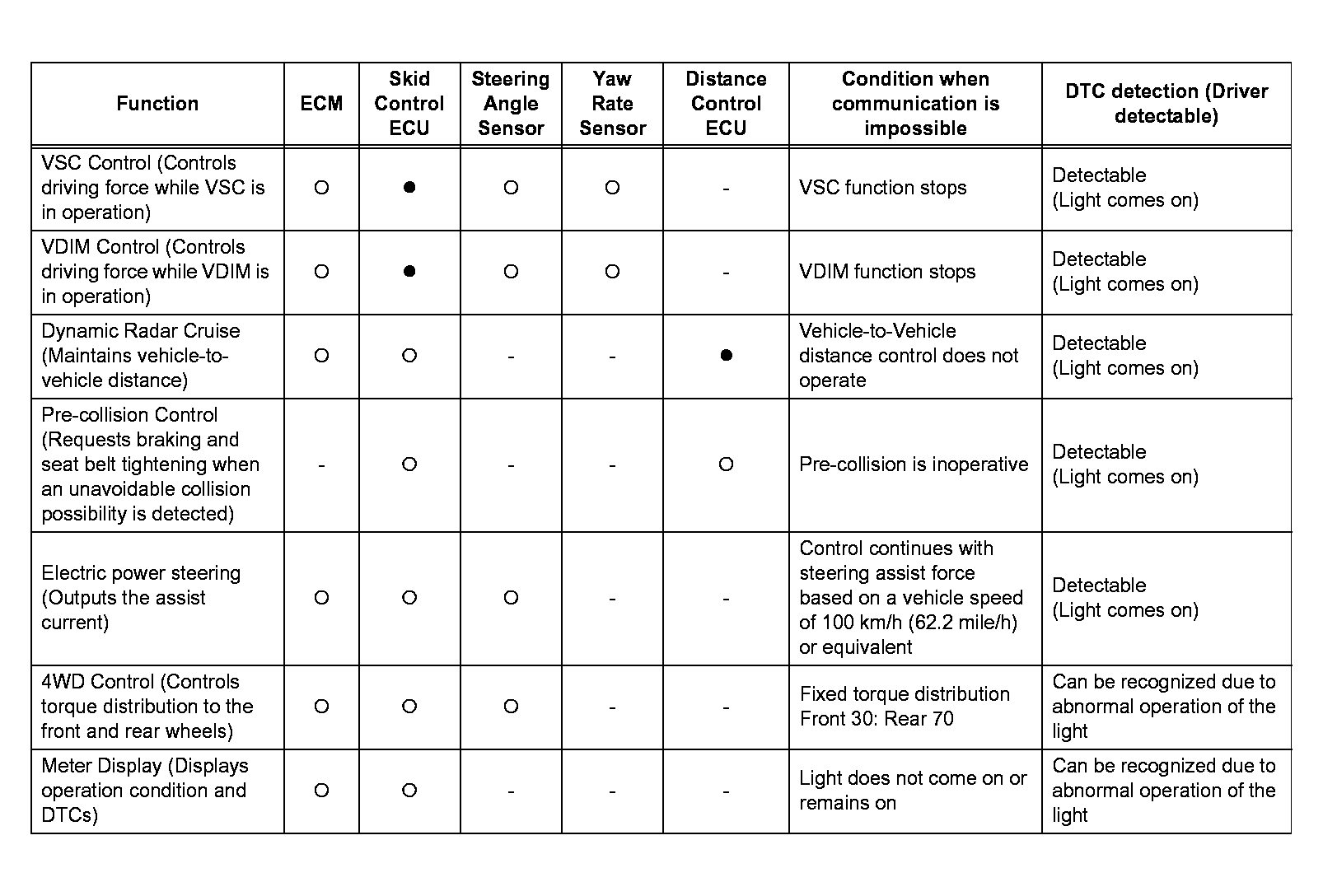

Fig 2: Identifying Fail-Safe Table (2 Of 2)
