Clutch Switch: Components

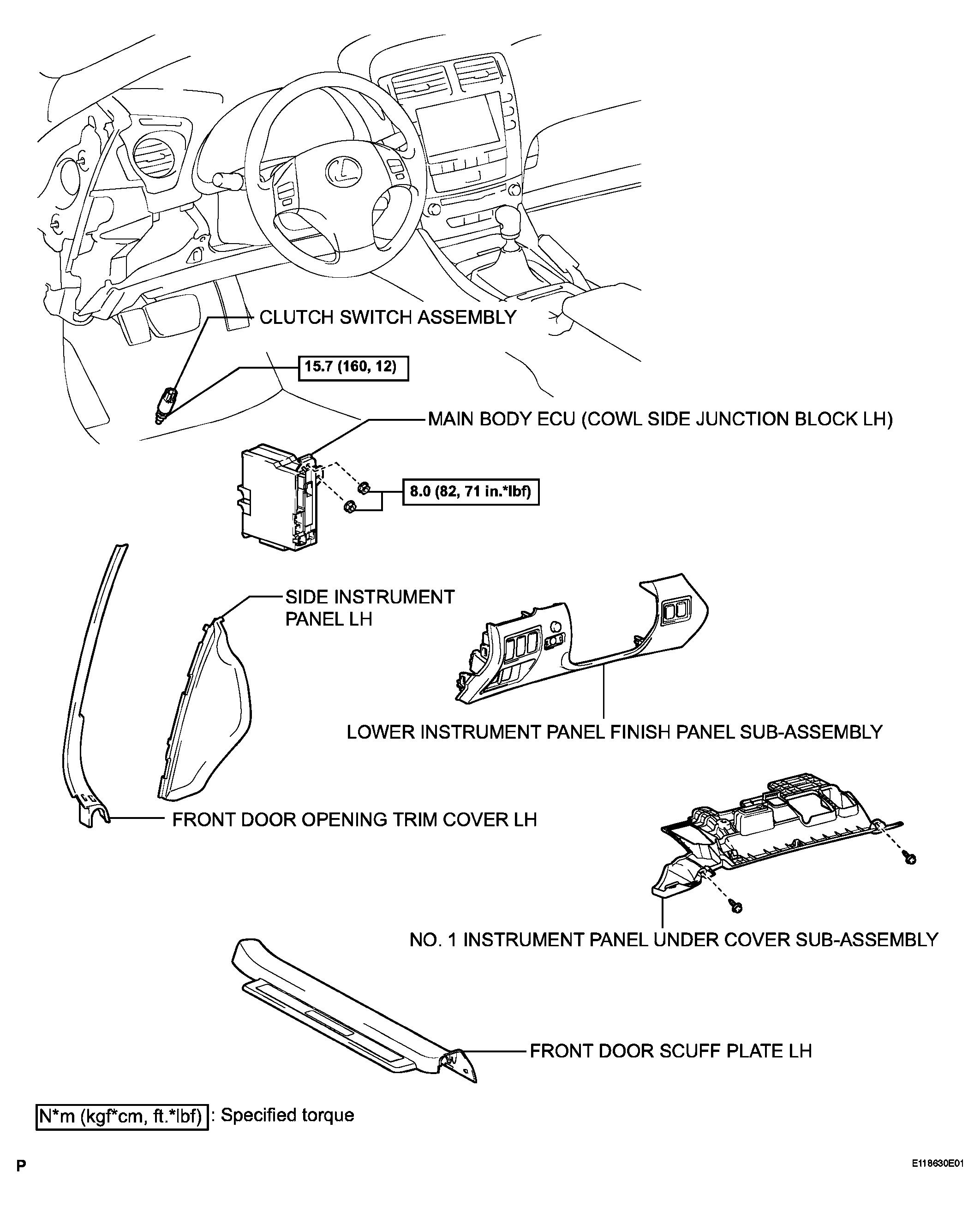

Fig 1: Clutch Switch Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
