Cruise Control Main Switch: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation (See AIRBAG SYSTEM
).
- REMOVE NO. 2 LOWER STEERING WHEEL COVER
- REMOVE NO. 3 LOWER STEERING WHEEL COVER
- REMOVE STEERING PAD (See REMOVAL
)
- REMOVE CRUISE CONTROL MAIN SWITCH
- Disconnect the connector.

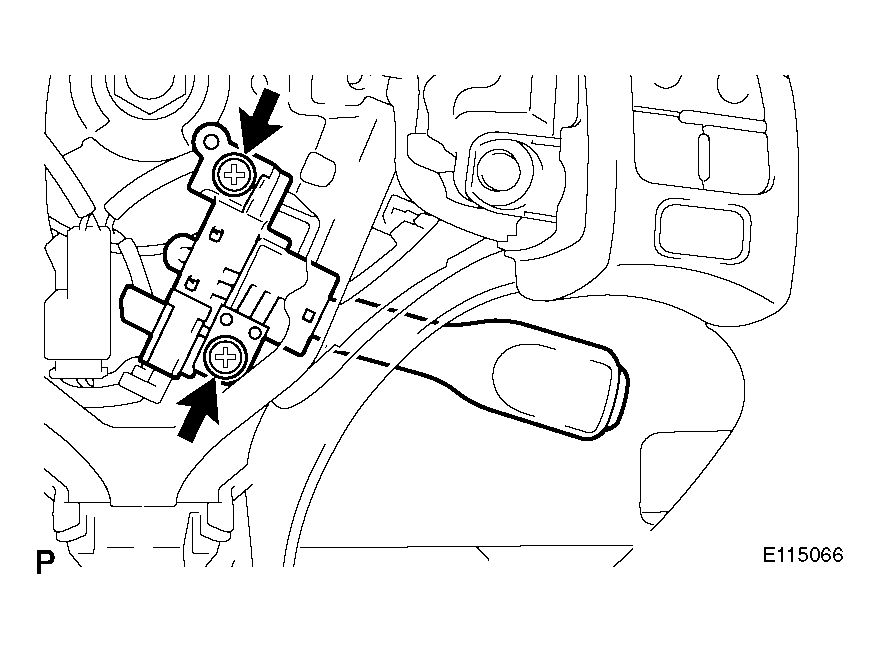

- Remove the 2 screws and the cruise control main switch.
