System Diagram

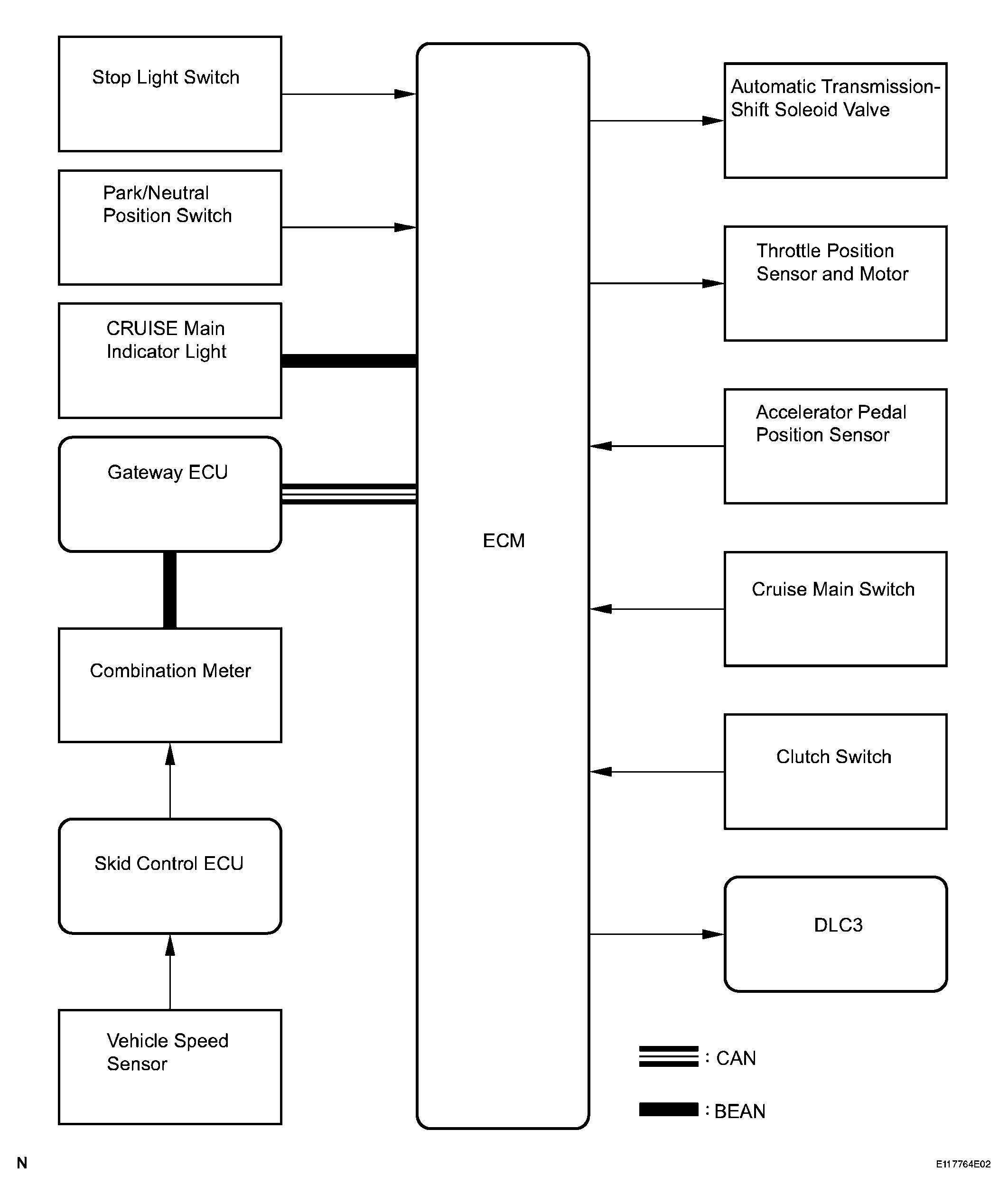

Fig 1: Identifying Cruise Control System Diagram

G04049189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Combination Meter ECU	CRUISE main indicator operation signal	BEAN (Instrument Panel Bus)
