Front Side Speaker: Components

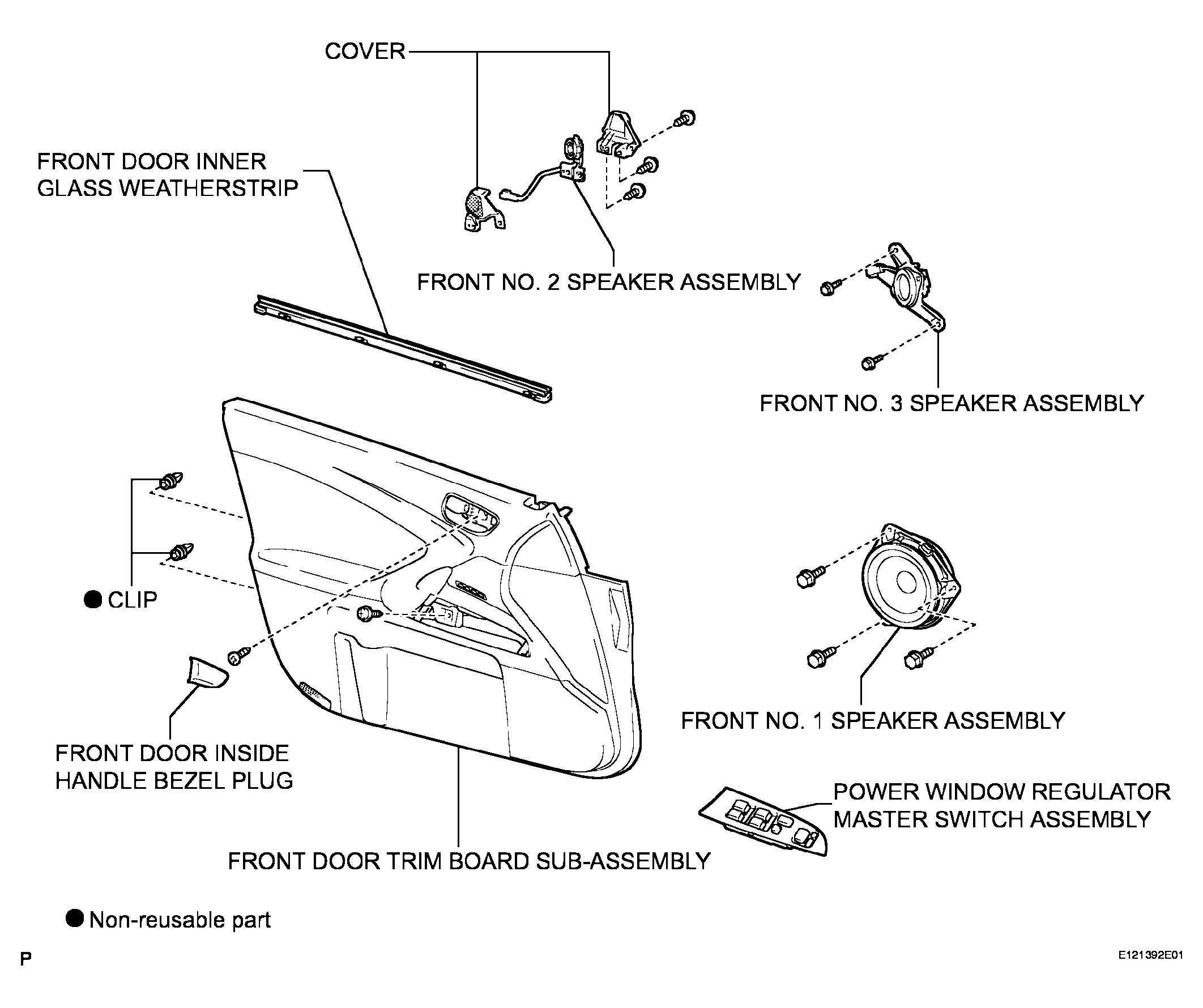

Fig 1: Identifying Front Side Speaker Components
G04050213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
