Front Side Speaker: Installation

INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

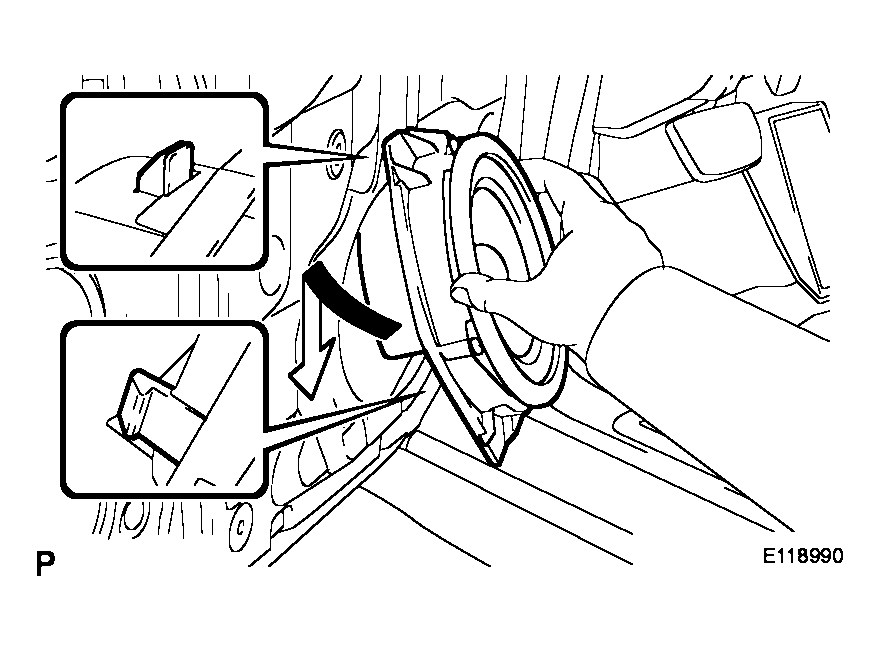

1. Engage the 2 claws as shown in the illustration to temporarily install the front No. 1 speaker assembly.

  Fig 1: Identifying Front No. 1 Speaker Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

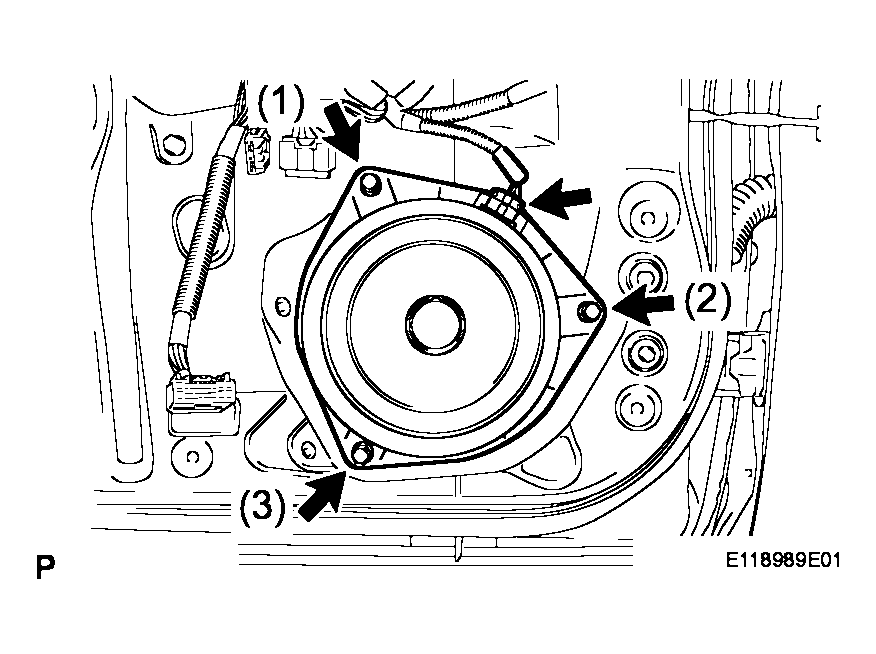

2. Install the front No. 1 speaker assembly with the 3 bolts.
  HINT:

  Install the bolts in the order shown in the illustration.
3. Connect the connector.
Fig 2: Identifying Front No. 1 Speaker Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
1. Install the front No. 2 speaker assembly to the cover.

  Fig 3: Identifying Front No. 2 Speaker Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 claws and install the cover.

  Fig 4: Identifying Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

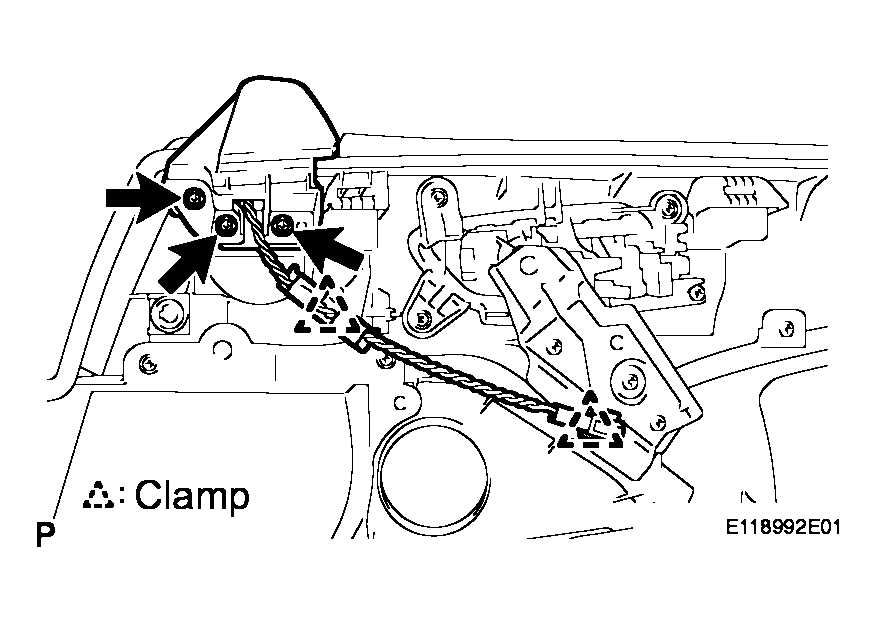

3. Install the front No. 2 speaker assembly w/ cover with the 3 screws.
4. Engage the 2 clamps.
Fig 5: Identifying Front No. 2 Speaker Assembly W/ Cover And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

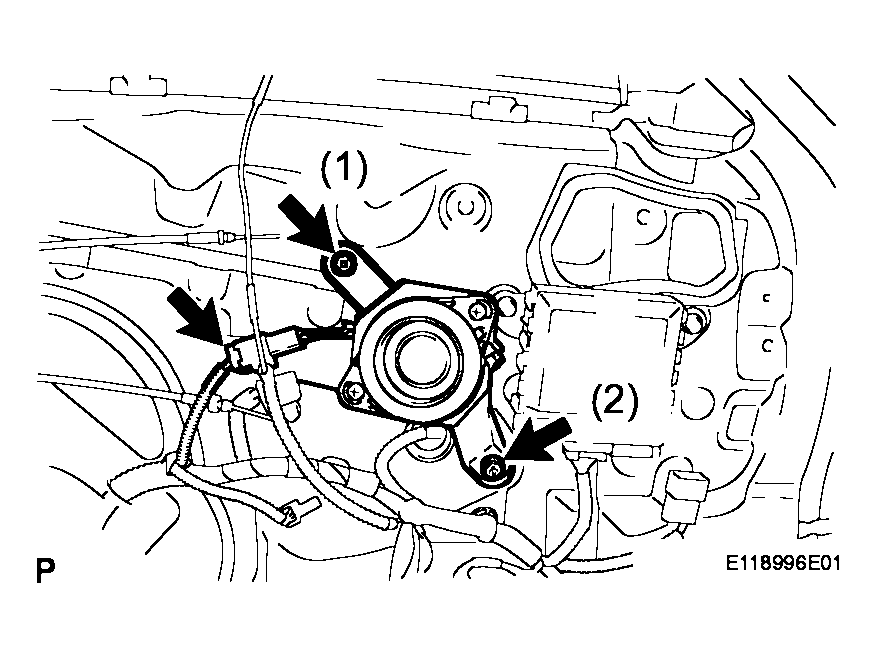

1. Install the front No. 3 speaker assembly with the 2 bolts.
  HINT:

  Install the bolts in the order shown in the illustration.
2. Connect the connector.
Fig 6: Identifying Front No. 3 Speaker Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP (See REASSEMBLY )
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See REASSEMBLY )
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See REASSEMBLY )
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG (See REASSEMBLY )
