Radio Receiver: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)(See  REMOVAL  )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  10. REMOVE CONSOLE BOX (See  REMOVAL  )
  11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  13. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Remove the 4 bolts.
    2. Pull the integration control panel w/ radio receiver assembly toward the rear of the vehicle.
    3. Disconnect each connector and remove the panel.

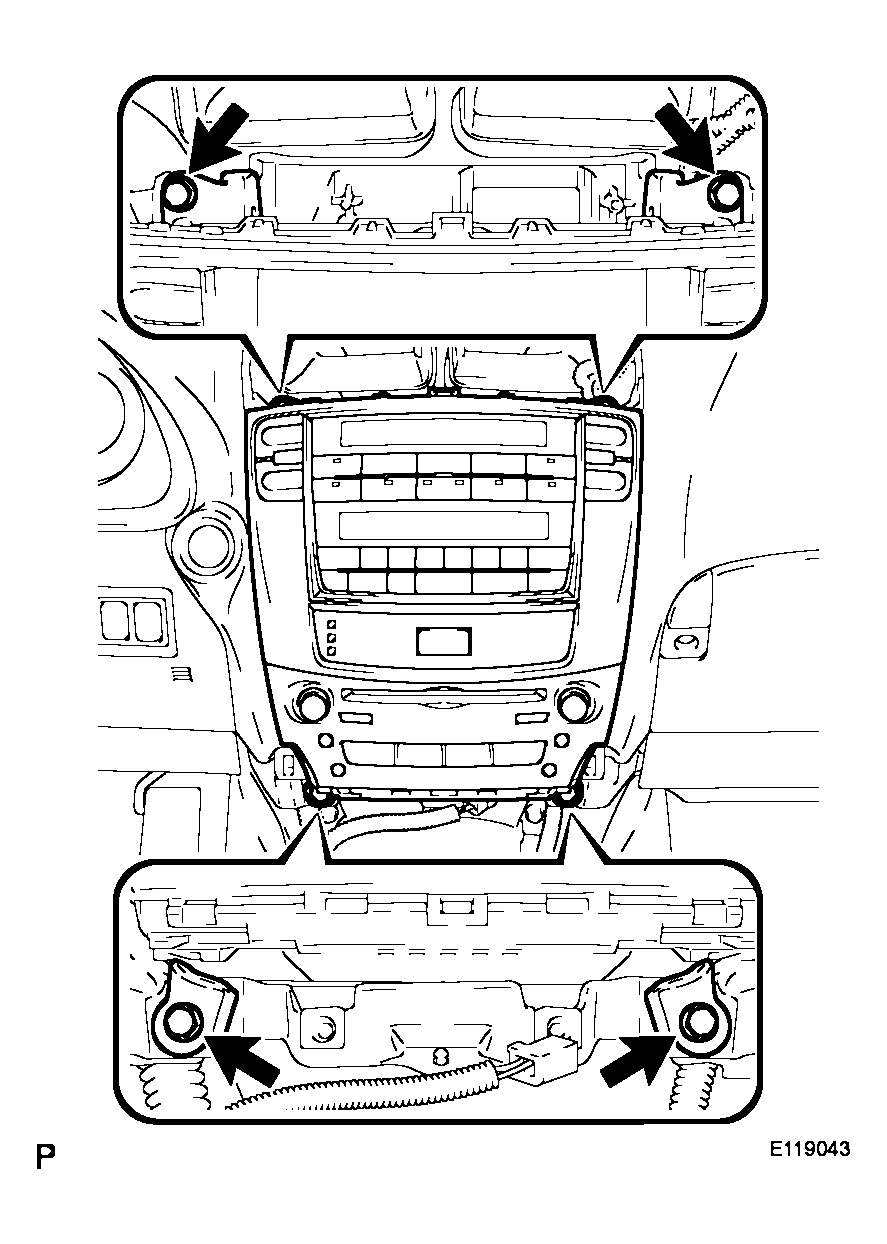

    Fig 1: Identifying Bolts
    G04050183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Remove the 6 bolts and radio No. 1 bracket.
    Fig 2: Identifying Bolts And Radio No. 1 Bracket
    G04050184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Remove the 6 bolts and radio No. 2 bracket.
    Fig 3: Identifying Bolts And Radio No. 2 Bracket
    G04050185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Slide the integration control panel in the direction shown by the arrow to remove the radio receiver assembly.
    Fig 4: Identifying Radio Receiver Assembly (W/O Navigation System)
    G04050186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Remove the 4 bolts.
    2. Pull the multi-display w/ radio receiver assembly toward the rear of the vehicle.
    3. Disconnect each connector and remove the multi-display.

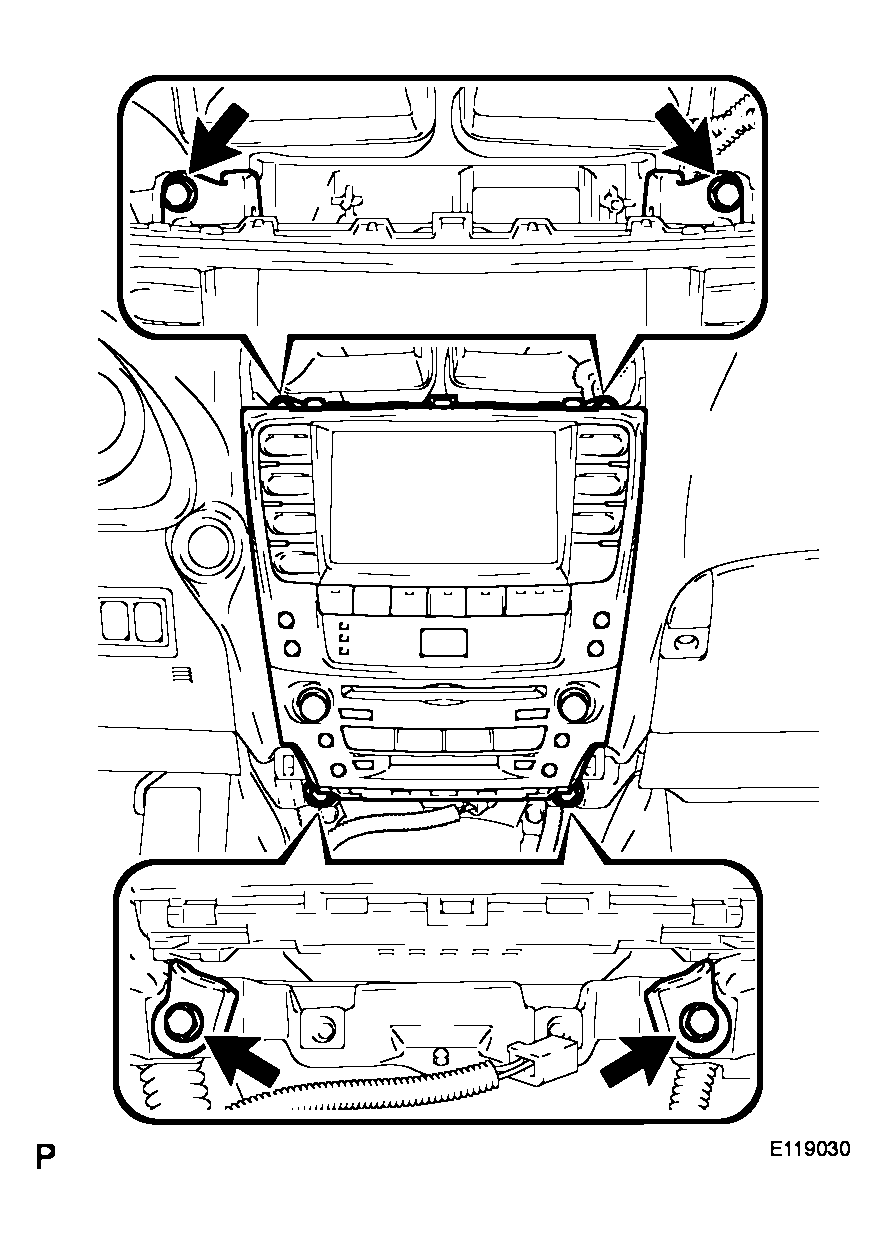

    Fig 5: Identifying Bolts
    G04050187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Disengage the connector clamp.
      Fig 6: Identifying Connector Clamp
      G04050188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 7 bolts and radio No. 1 bracket.
    Fig 7: Identifying Bolts And Radio No. 1 Bracket
    G04050189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Remove the 7 bolts and radio No. 2 bracket.
    Fig 8: Identifying Bolts And Radio No. 2 Bracket
    G04050190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Slide the multi-display in the direction shown by the arrow to remove the radio receiver assembly.
    Fig 9: Identifying Radio Receiver Assembly (W/ Navigation System)
    G04050191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
