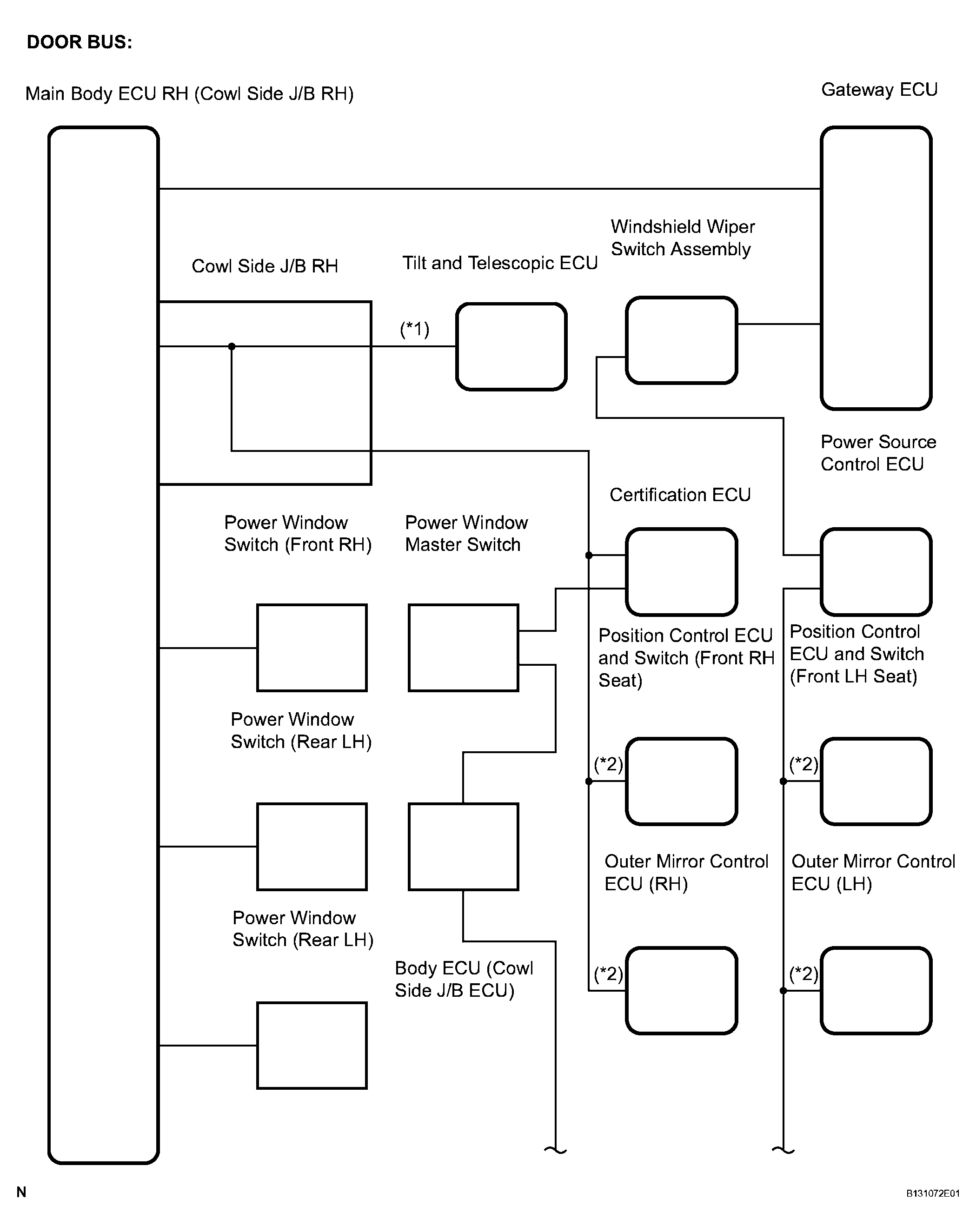

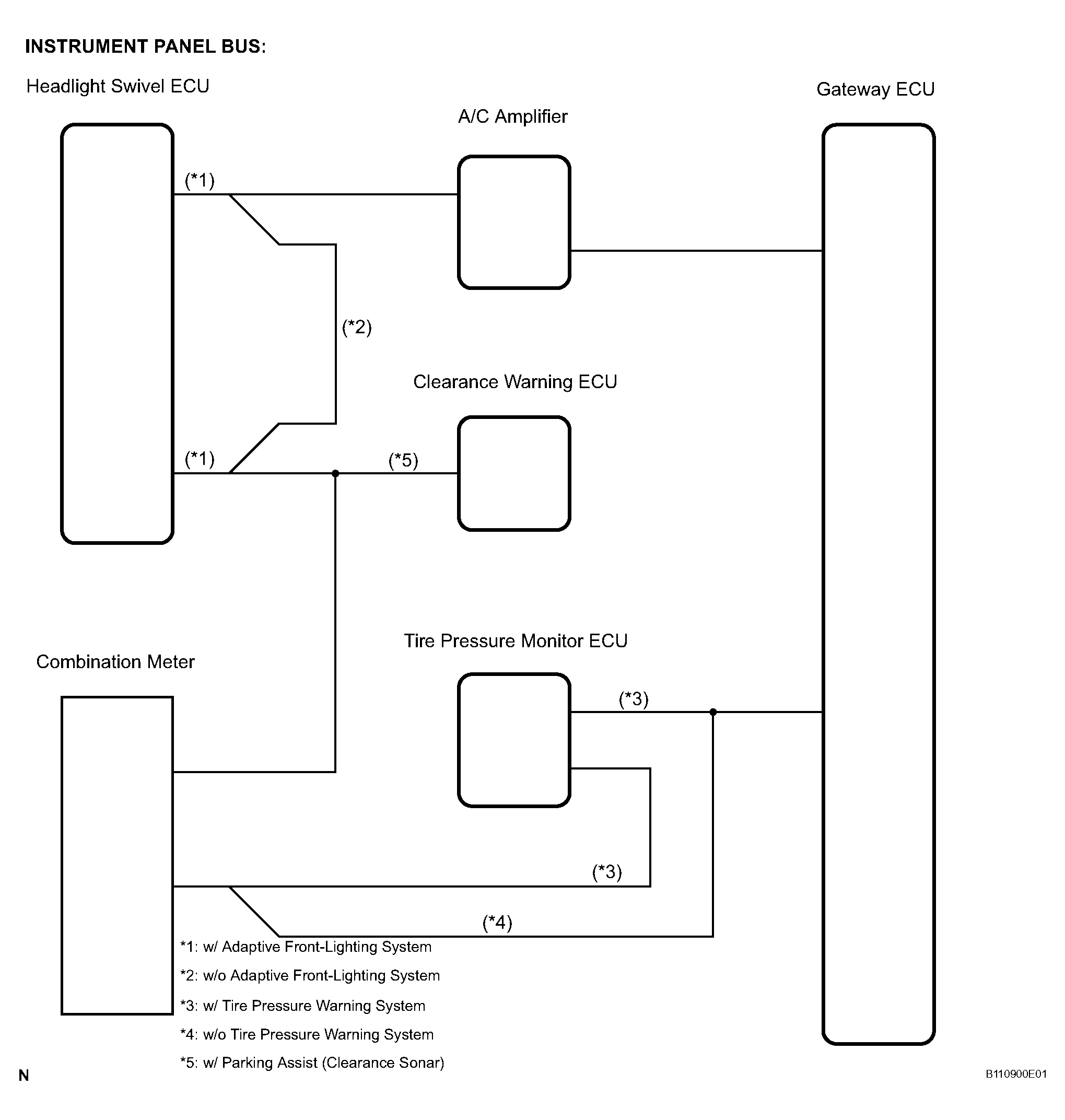

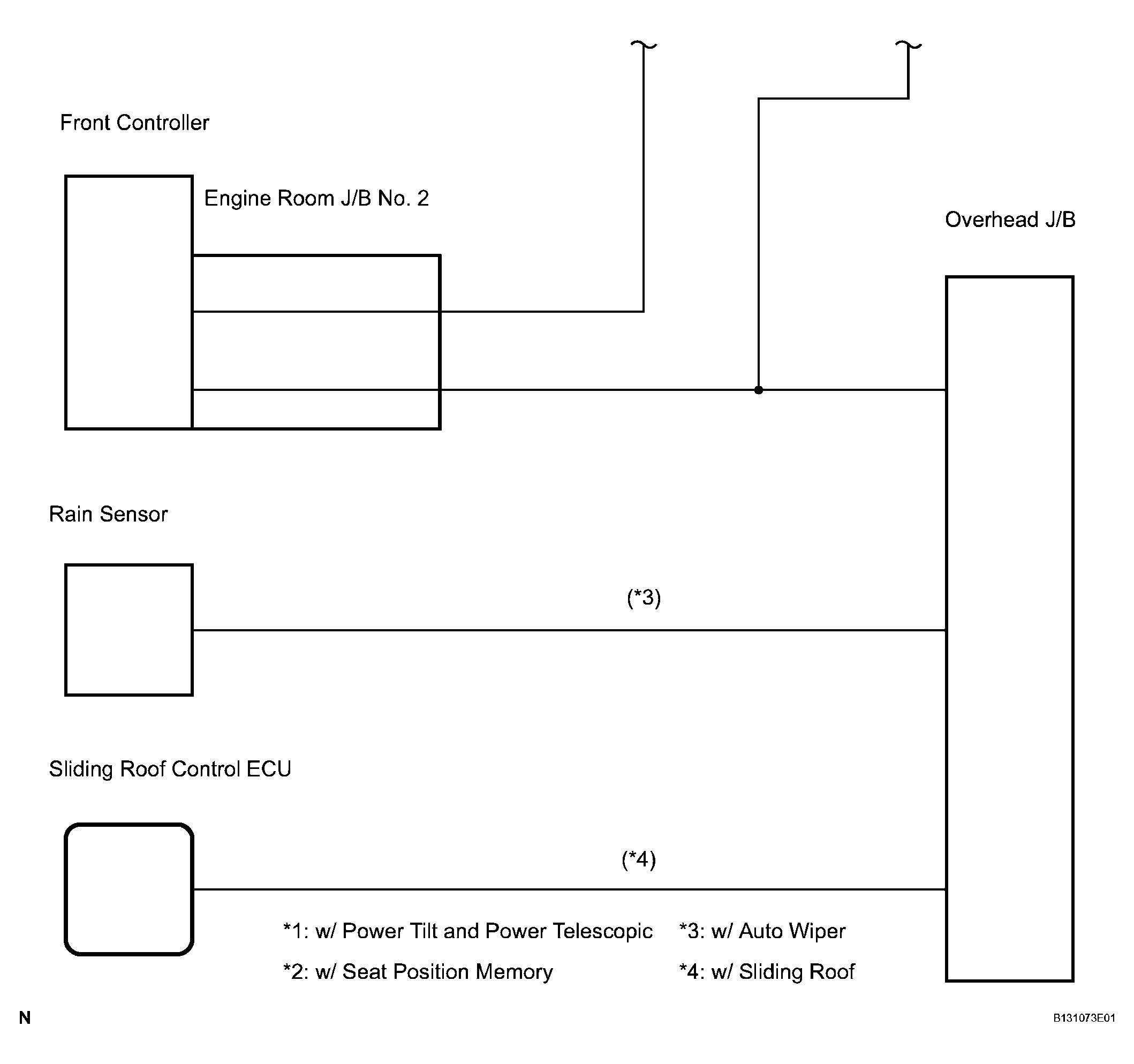

System Diagram
ITEM DETAIL RESULT DESCRIPTION TABLE
| Item | Details | ||
|---|---|---|---|
| Number of BEAN connected ECUs (1) | 20 | ||
| Number of CAN connected ECUs (1) | 10 | ||
| Number of AVC-LAN connected ECUs (1) | 6 | ||
| Gateway function between BEAN and diagnosis | Gateway ECU | ||
| Gateway function between BEAN and AVC-LAN | Gateway ECU | ||
| Gateway function between BEAN and CAN | Gateway ECU | ||
| ECU in charge of vehicle customization information | Gateway ECU | ||
| Protocol | CAN, BEAN and AVC-LAN | ||
| HINT:
|
|||
