Headlight Assembly: Components

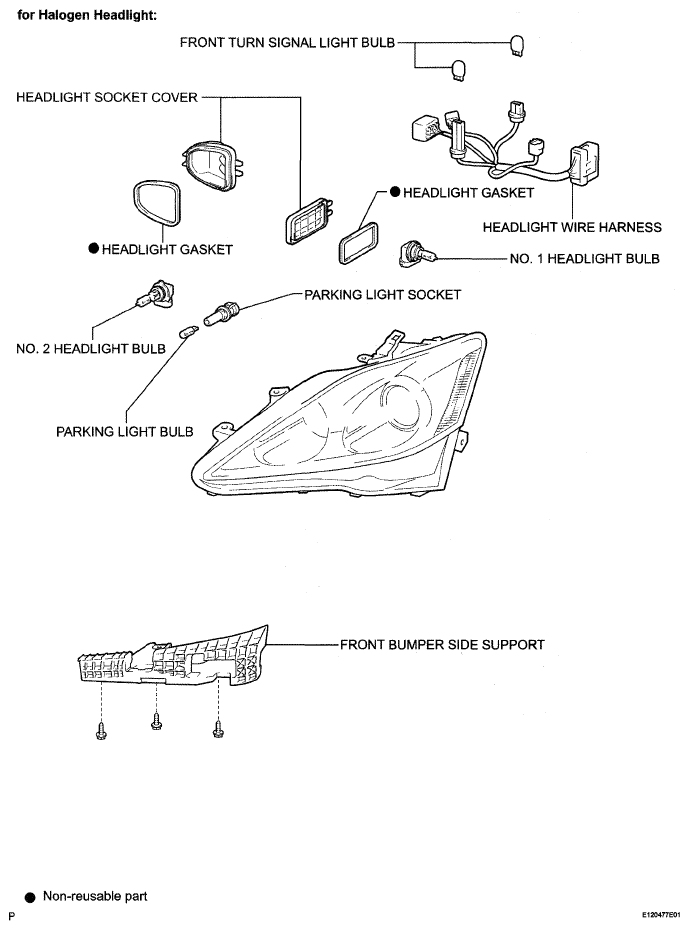

Fig 1: Exploded View Of Headlight Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

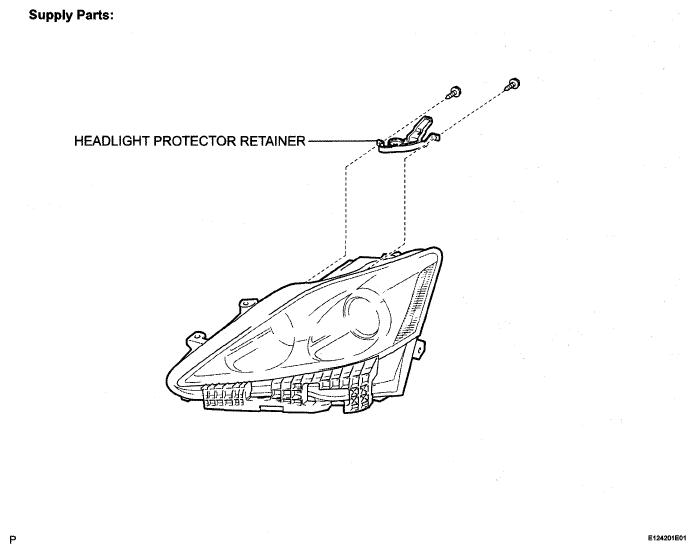

Fig 2: Exploded View Of Headlight Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

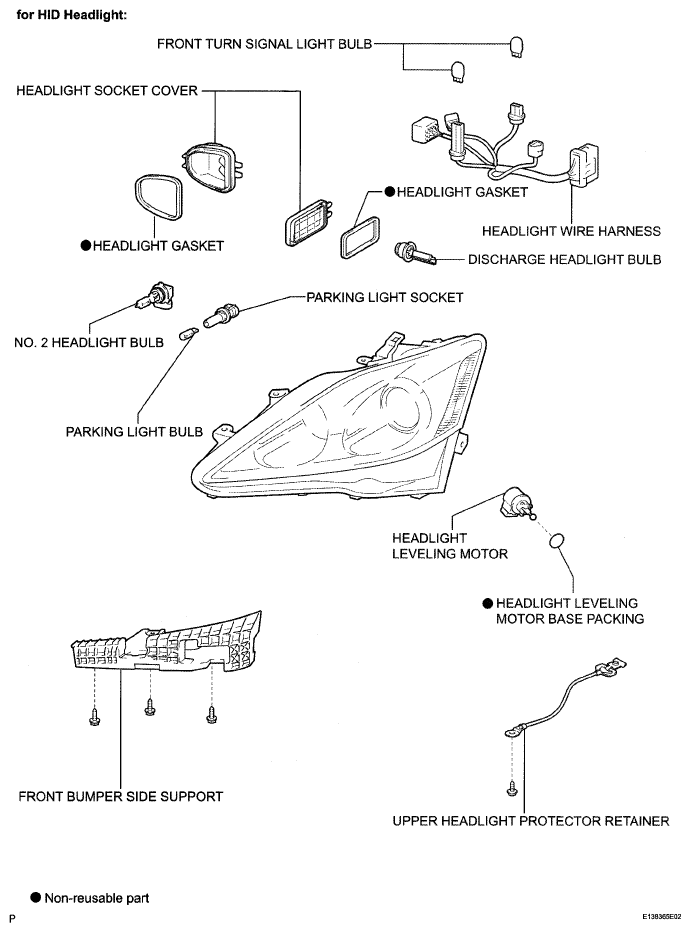

Fig 3: Exploded View Of Headlight Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

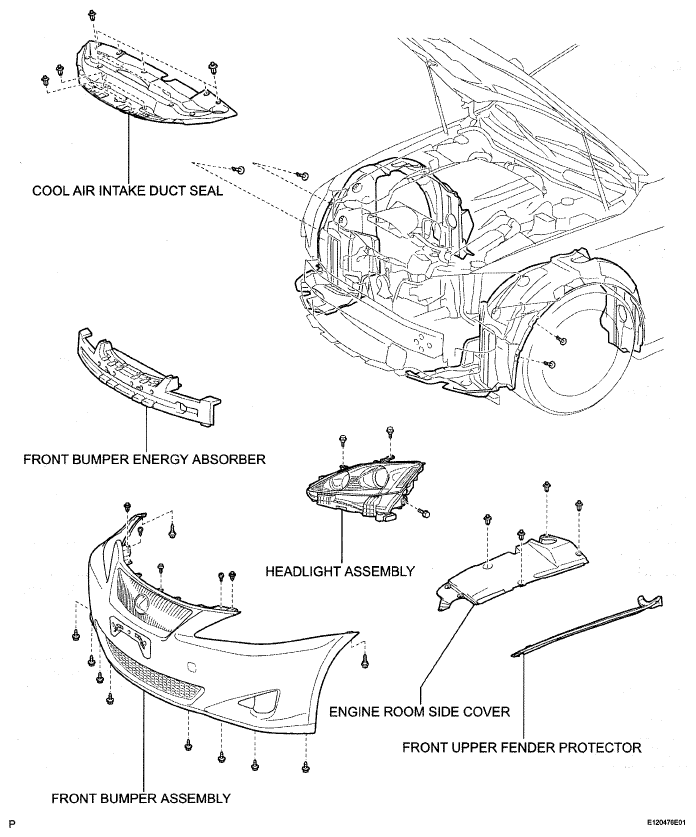

Fig 4: Exploded View Of Headlight Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
