System Diagram

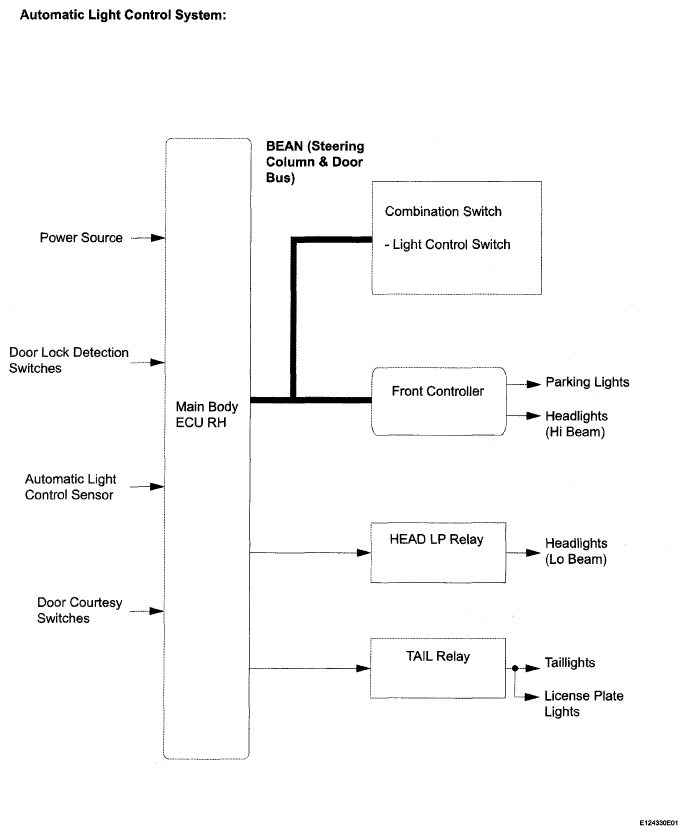

Fig 1: Automatic Light Control System - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

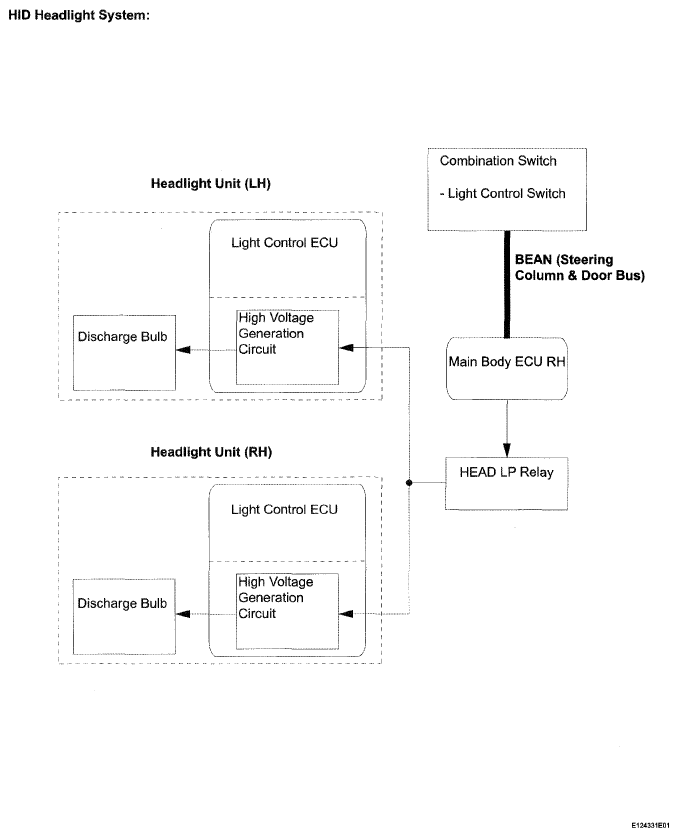

Fig 2: HID Headlight System - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

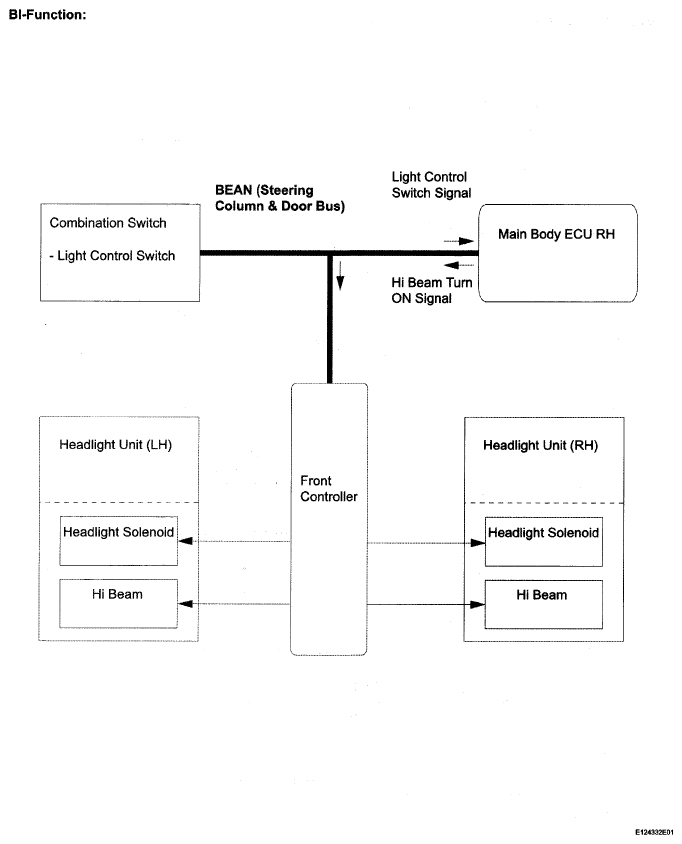

Fig 3: BI-FUNCTION - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

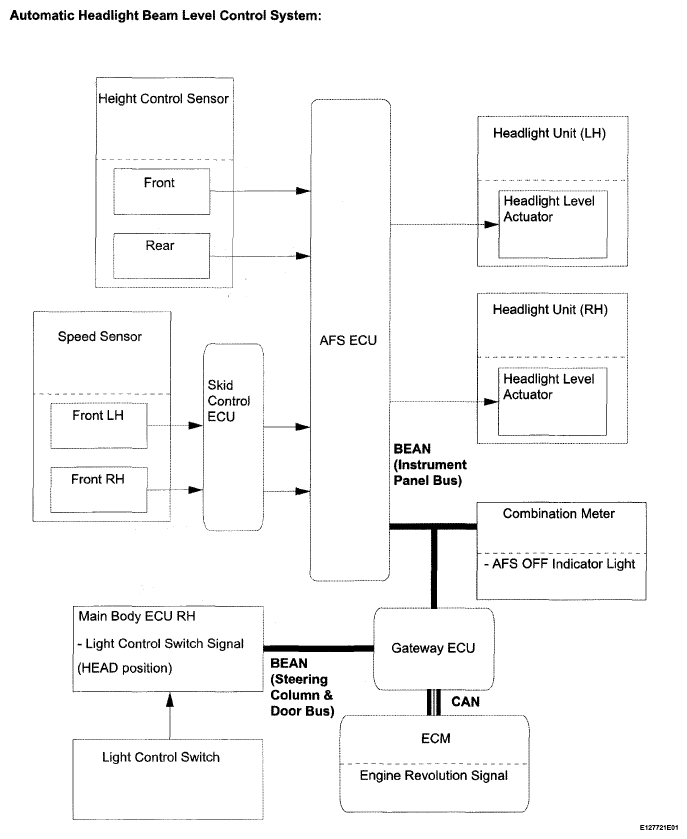

Fig 4: Automatic Headlight Beam Level Control System - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

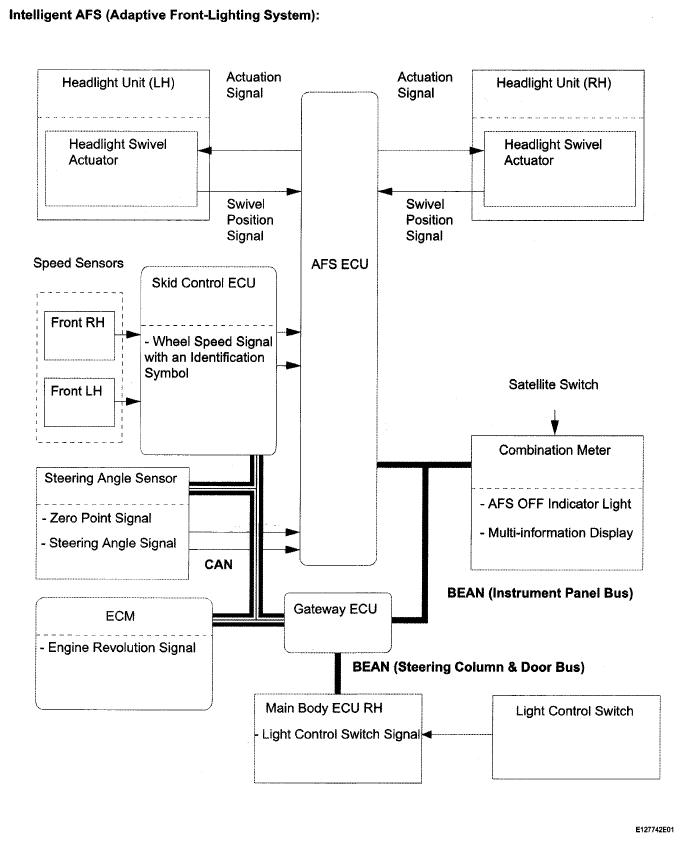

Fig 5: Intelligent AFS (Adaptive Front Lighting System) - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

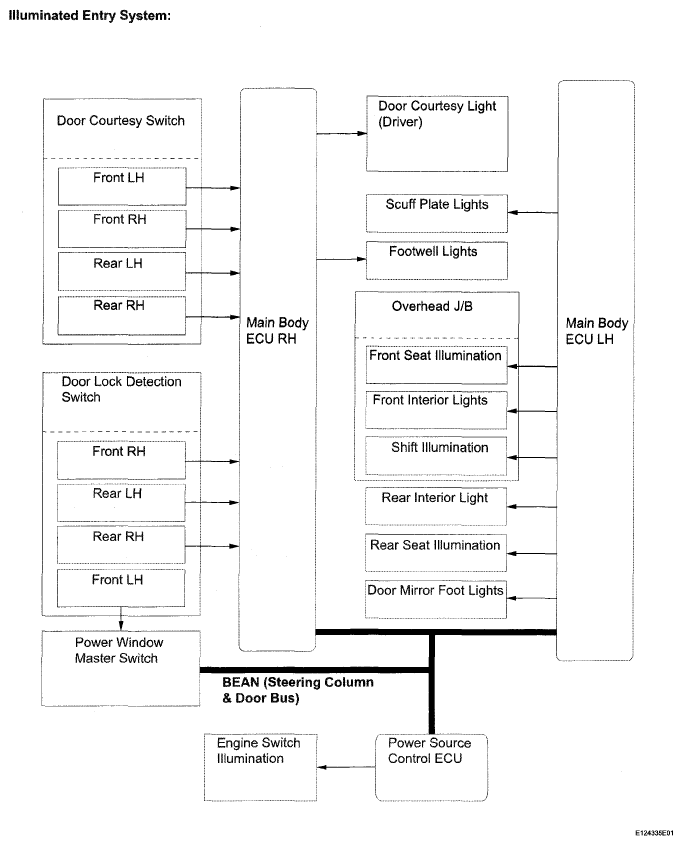

Fig 6: Illuminated Entry System - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Various switches or sensors are represented as inputs for the different systems mentioned in the section. Where direct electrical connections do not exist between components, signals may be carried across the different networks (BEAN, CAN) that exist on the vehicle. If a signal needs to travel from the CAN network to the BEAN network, the gateway ECU allows the signal to travel between these different networks. Some of these different signals can be confirmed or inspected using the intelligent tester.
