Rear Combination Light Assembly: Components

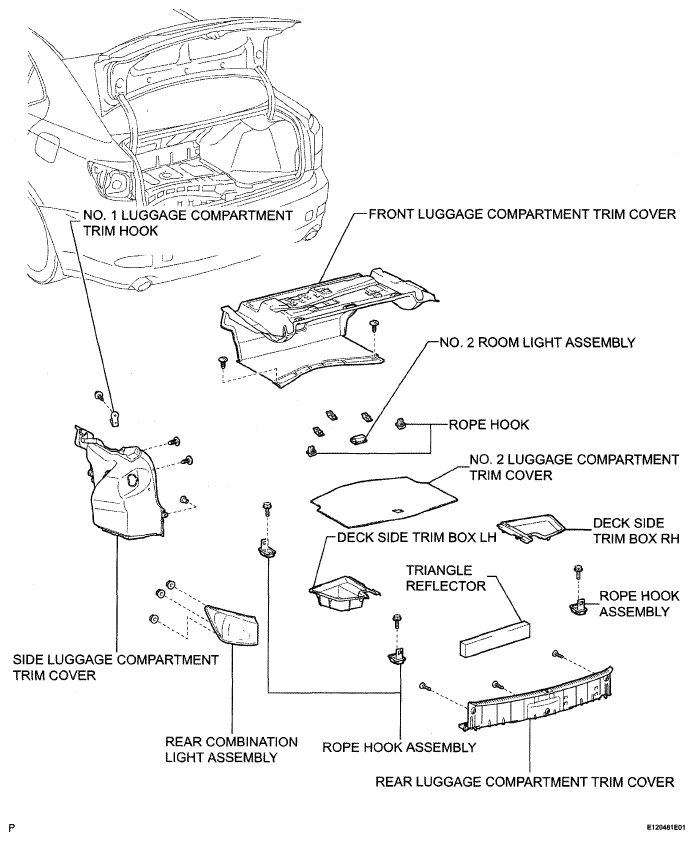

Fig 1: Identifying Rear Combination Light Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

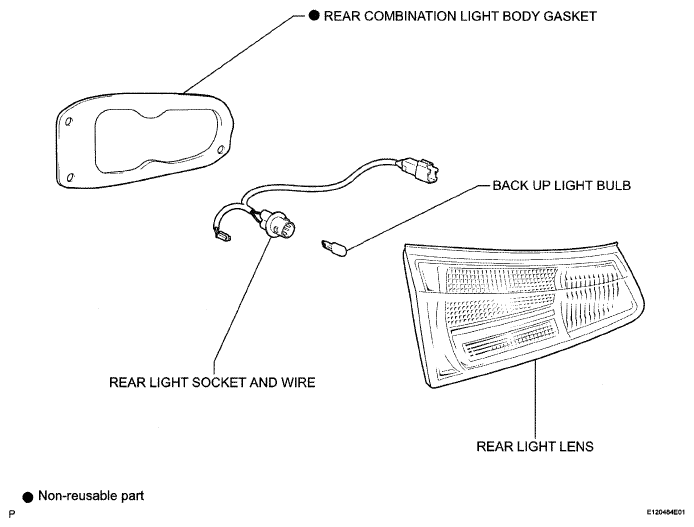

Fig 2: Identifying Rear Combination Light Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

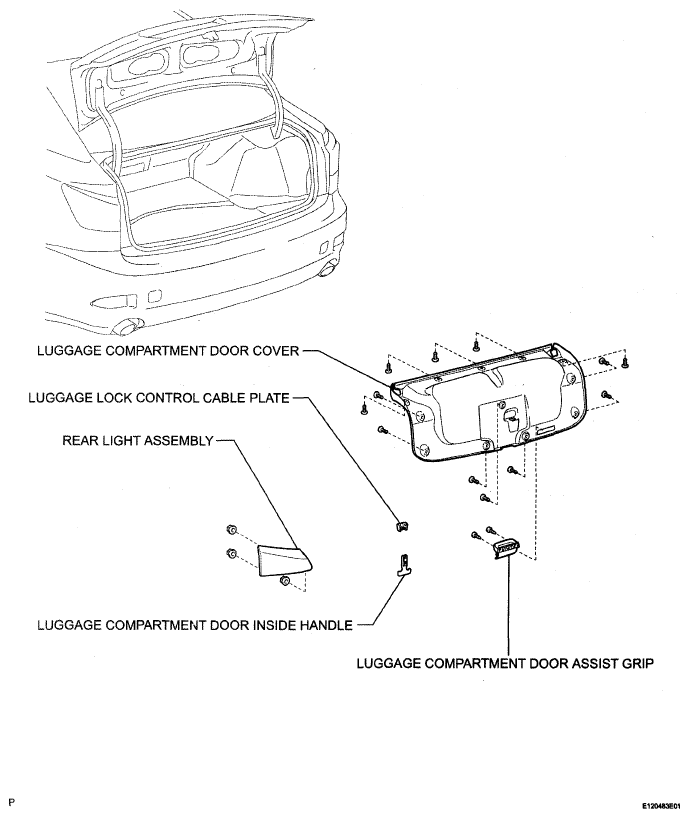

Fig 3: Identifying Combination Light Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

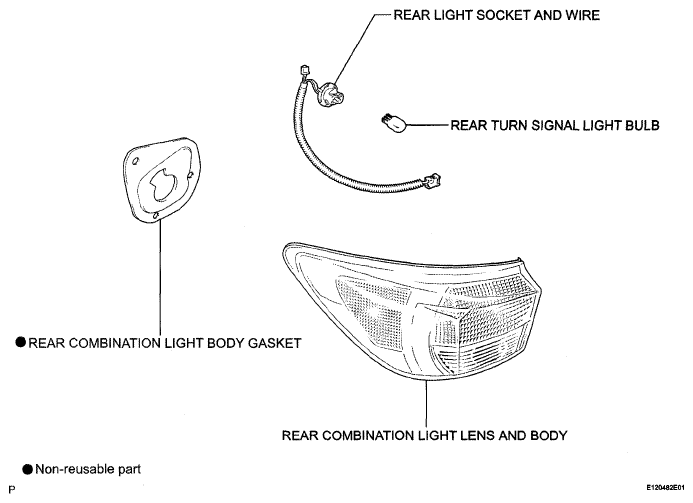

Fig 4: Identifying Rear Combination Light Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
