Turn Signal Flasher Assembly: Components

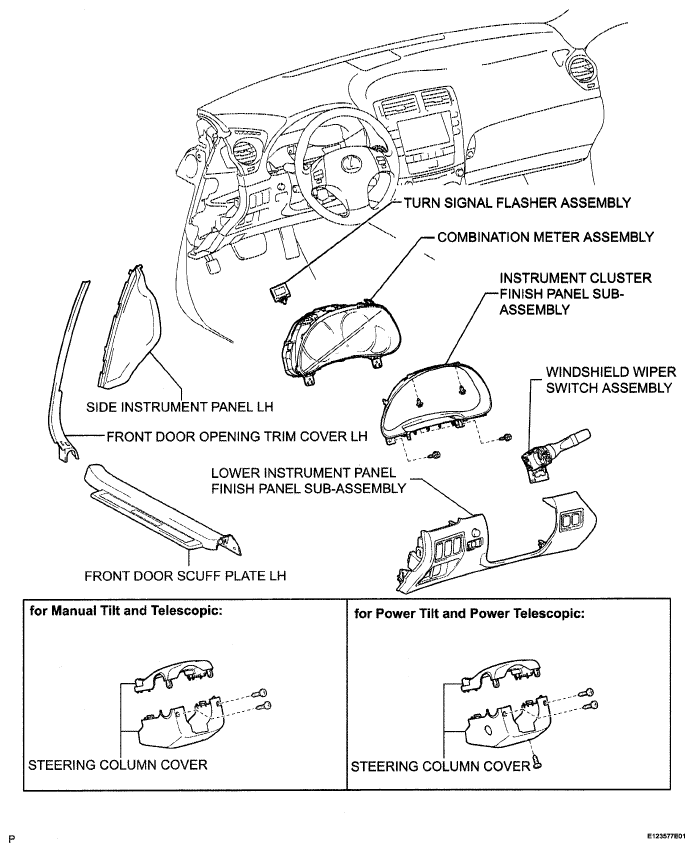

Fig 1: Identifying Turn Signal Flasher Assembly Components
G05320591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
