Smart Access System With Push-Button Start
›
Certification ECU Power Source Circuit
›
Wiring Diagram
Certification ECU Power Source Circuit: Wiring Diagram

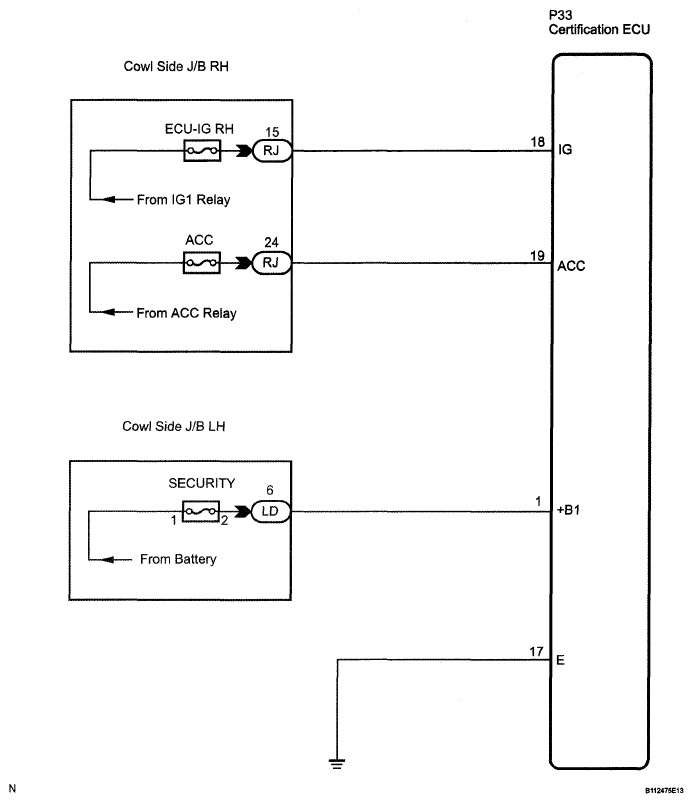

Fig 1: Certification ECU Power Source Circuit - Wiring Diagram
