Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - ELECTRICAL KEY OSCILLATOR)
    1. Disconnect the P33 ECU connector.
    2. Disconnect the oscillator connectors.

      Standard resistance

      CERTIFICATION ECU - ELECTRICAL KEY OSCILLATOR

      Tester Connection (Symbols) Condition Specified Condition
      P33-16 (CG7B) - Q48-3 (CLGB) Always Below 1 Ω
      P33-15 (CLG7) - Q48-1 (CLG6) Always Below 1 Ω
      P33-32 (CG8B) - P32-2 (CLGB) Always Below 1 Ω
      P33-31 (CLG8) - P32-1 (CLG5) Always Below 1 Ω
      P33-16 (CB7B) - Body ground Always 10 kΩ or higher
      P33-15 (CLG7) - Body ground Always 10 kΩ or higher
      P33-32 (CG8B) - Body ground Always 10 kΩ or higher
      P33-31 (CLG8) - Body ground Always 10 kΩ or higher

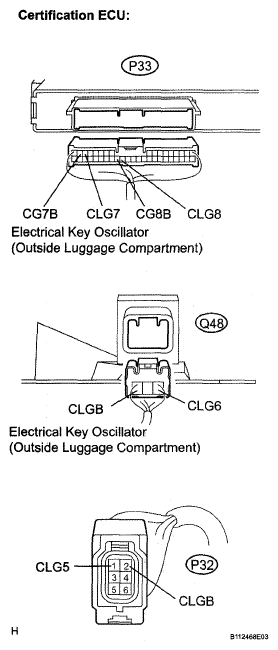

      Fig 1: Checking Harness And Connector (Certification ECU - Electrical Key Oscillator)
      G05320695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. CHECK AND REPLACE ELECTRICAL KEY OSCILLATOR
    1. Replace the electrical key oscillator.
    2. Check that the luggage compartment door entry LOCK/ UNLOCK function operates normally.

      OK:

      Luggage compartment door entry LOCK/UNLOCK function operates normally.

    OK: END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

    NG: Go to next step

  3. PERFORM ACTIVE TEST BY INTELLIGENT TESTER
    1. Reconnect the oscillator and the ECU connectors.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the engine switch on (IG).
    4. Following the display on the tester, select the "ACTIVE TEST".

      SMART KEY (Certification ECU):

      SMART KEY (CERTIFICATION ECU) CHART

      Item Vehicle Condition/Test Details
      IN-BDR TRNSMTTR Electrical key oscillator (Luggage compartment Inner) ON/OFF
      BDOOR TRNSMTTR Electrical key oscillator (Luggage compartment outer) ON/OFF
      Fig 2: Identifying P33 ECU Connector Terminals
      G05320696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the frequency according to the value(s) in the table below.

      Standard

      SMART KEY (CERTIFICATION ECU) STANDARD

      Tester Connection (Symbols) Condition Specified Condition
      P33-16 (CG7B) - P33-15 (CLG7) During ACTIVE TEST Frequency is generated (higher than 0 Hz)
      P33-32 (CG8B) - P33-31 (CLG8) During ACTIVE TEST Frequency is generated (higher than 0 Hz)

    NG: REPLACE CERTIFICATION ECU

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
