Smart Access System With Push-Button Start
›
Room Oscillator Circuit
›
Wiring Diagram
Room Oscillator Circuit: Wiring Diagram

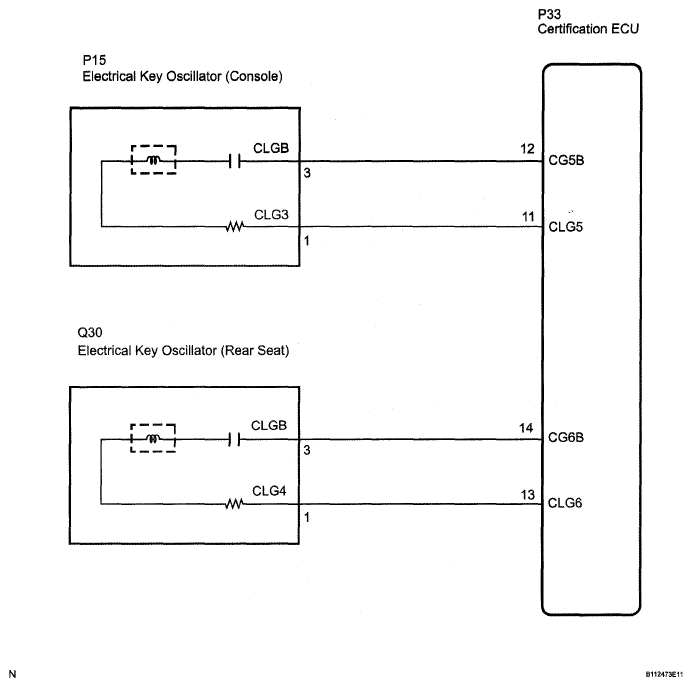

Fig 1: Room Oscillator Circuit - Wiring Diagram
