Touch Sensor Circuit: Wiring Diagram

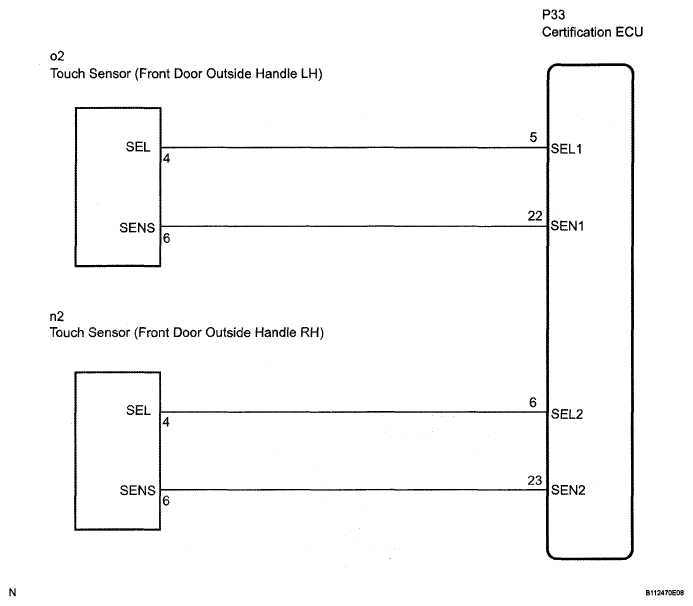

Fig 1: Touch Sensor Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
