System Diagram

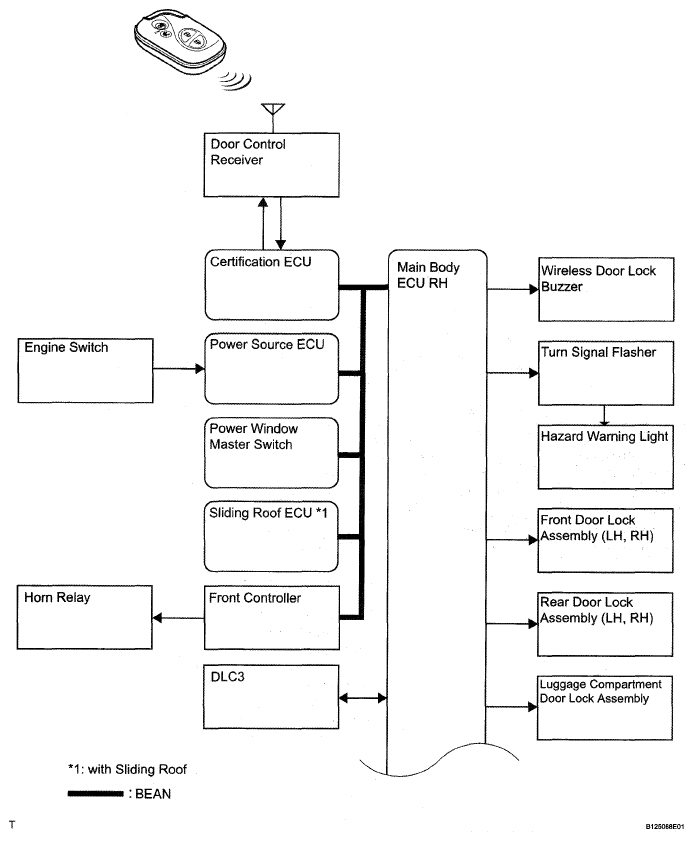

Fig 1: Wireless Door Lock Control - System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

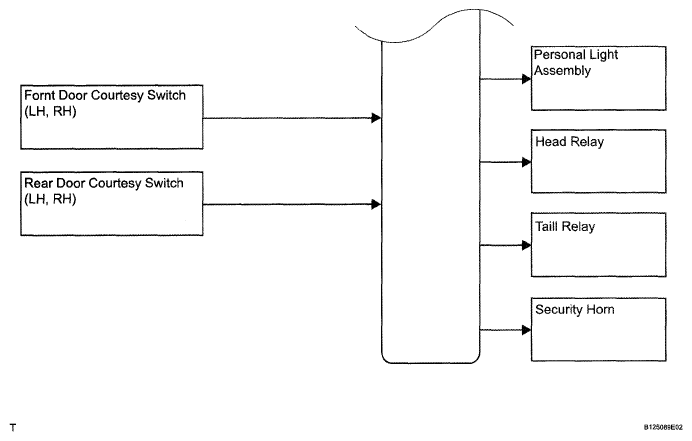

Fig 2: Wireless Door Lock Control - System Diagram (2 Of 2)

TRANSMITTING ECU REFERENCE CHART

Transmitting ECU (Transmitter)	Receiving ECU (Receiver)	Signal	Line
Certification ECU	Main body ECU RH	IG relay operating states	BEAN
Power source ECU	Main body ECU RH	Engine switch signal	BEAN
Main body ECU RH	Power window master switch	Power window open signal	BEAN
Power window master switch	Sliding roof ECU	Sliding roof open signal	BEAN
Main body ECU RH	Front controller	Vehicle horn sound request	BEAN
