Engine Immobilizer System
›
ID Code Box Power Source Circuit
›
Wiring Diagram
ID Code Box Power Source Circuit: Wiring Diagram

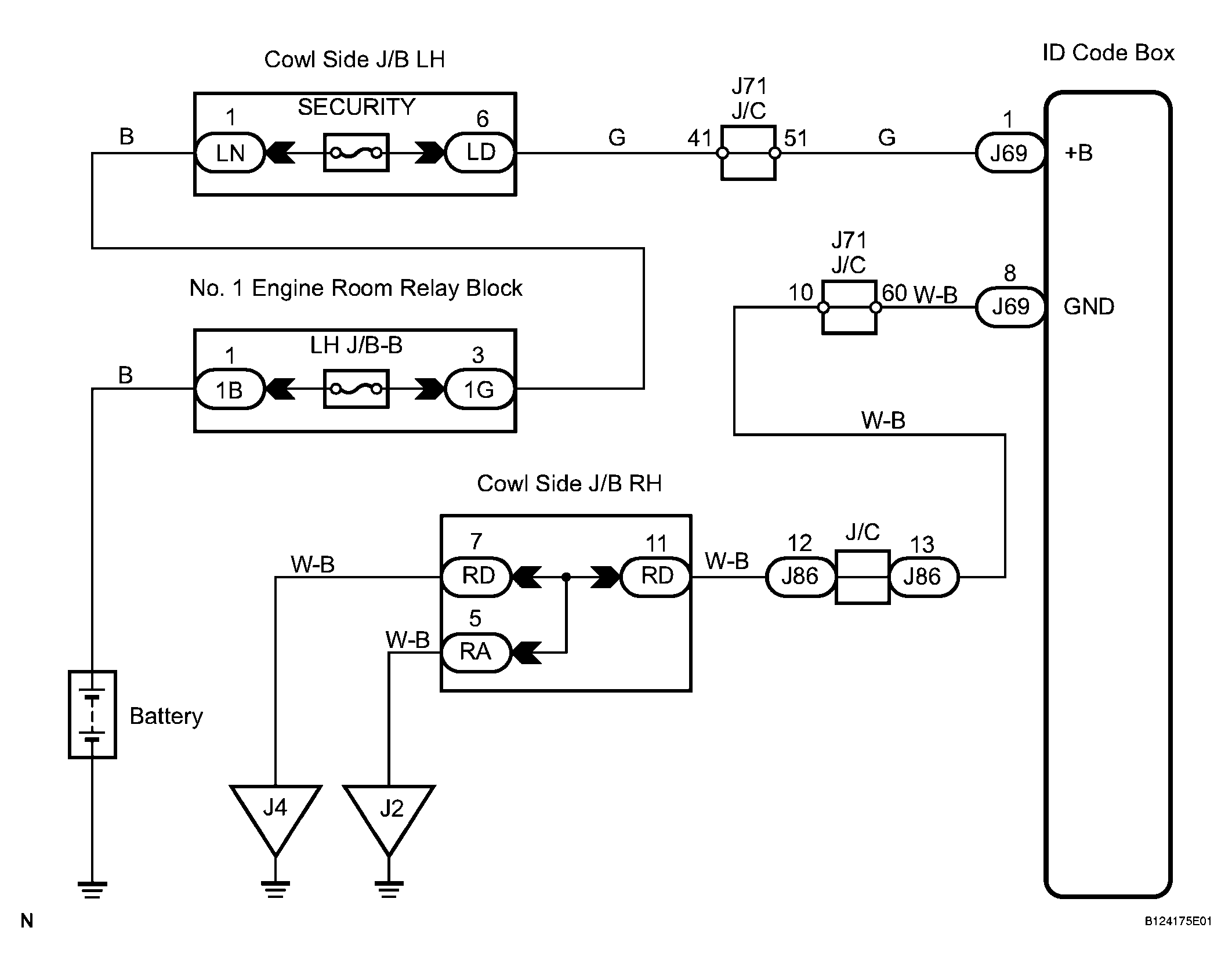

Fig 1: Wiring Diagram - ID Code Box Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
