Name Plate: Installation

HINT:

When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

Heating temperature:

HEATING TEMPERATURE

Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Emblem 20 to 30°C (68 to 86°F)
Name Plate 20 to 30°C (68 to 86°F)
NOTE: Do not heat the vehicle body, emblem and name plate excessively.
  1. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Clean the No. 3 luggage compartment door plate. (If reusing the No. 3 luggage compartment door plate)
      1. Using a heat light, heat the No. 3 luggage compartment door plate.
      2. Remove the double-sided tape from the No. 3 luggage compartment door plate.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the No. 3 luggage compartment door plate.
    3. Install the No. 3 luggage compartment door plate.
      1. Using a heat light, heat the vehicle body and No. 3 luggage compartment door plate.
      2. Remove the peeling paper from the face of the No. 3 luggage compartment door plate.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 3 luggage compartment door plate.

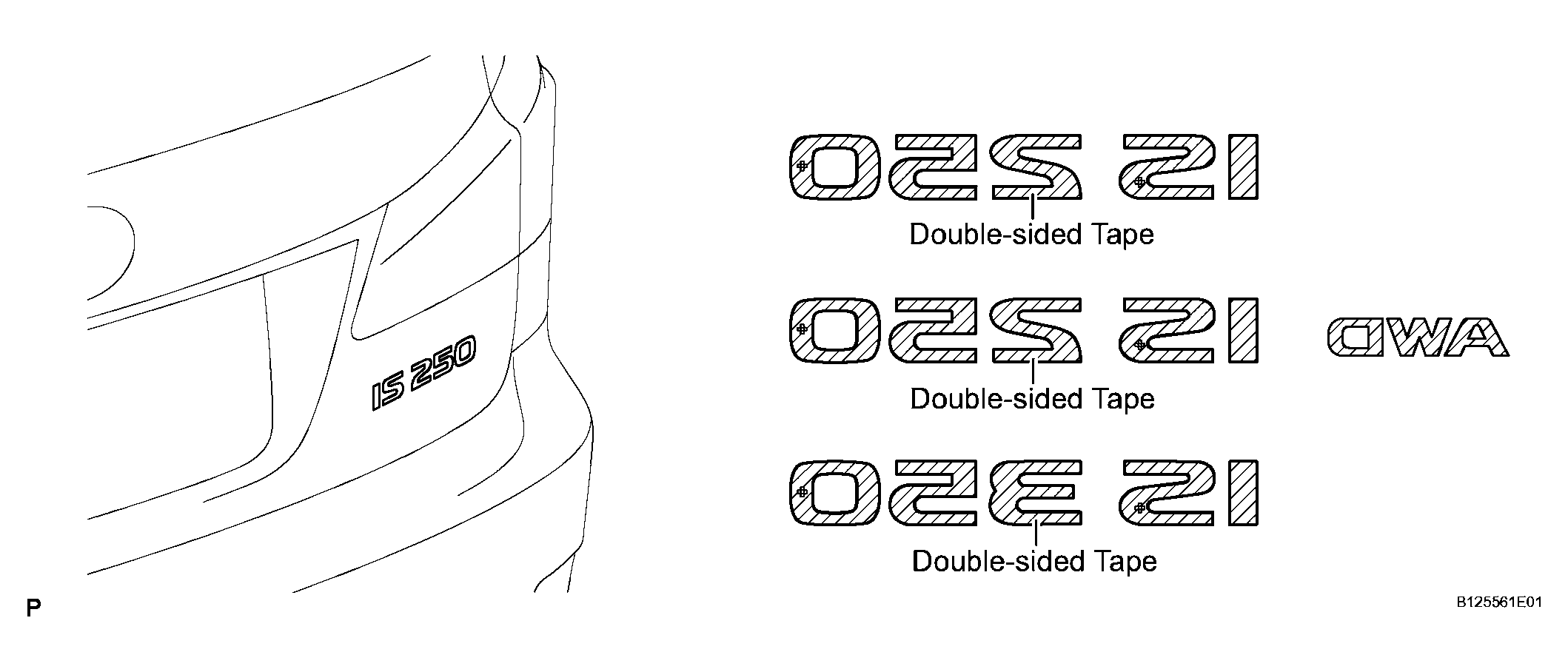

    Fig 1: Installing No. 3 Luggage Compartment Door Plate
    G04051566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Clean the No. 1 luggage compartment door name plate. (If reusing the No. 1 luggage compartment door name plate)
      1. Using a heat light, heat the No. 1 luggage compartment door name plate.
      2. Remove the double-sided tape from the No. 1 luggage compartment door name plate.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the No. 1 luggage compartment door name plate.
    3. Install the No. 1 luggage compartment door name plate.
      1. Using a heat light, heat the vehicle body and No. 1 luggage compartment door name plate.
      2. Remove the peeling paper from the face of the No. 1 luggage compartment door name plate.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 1 luggage compartment door name plate.

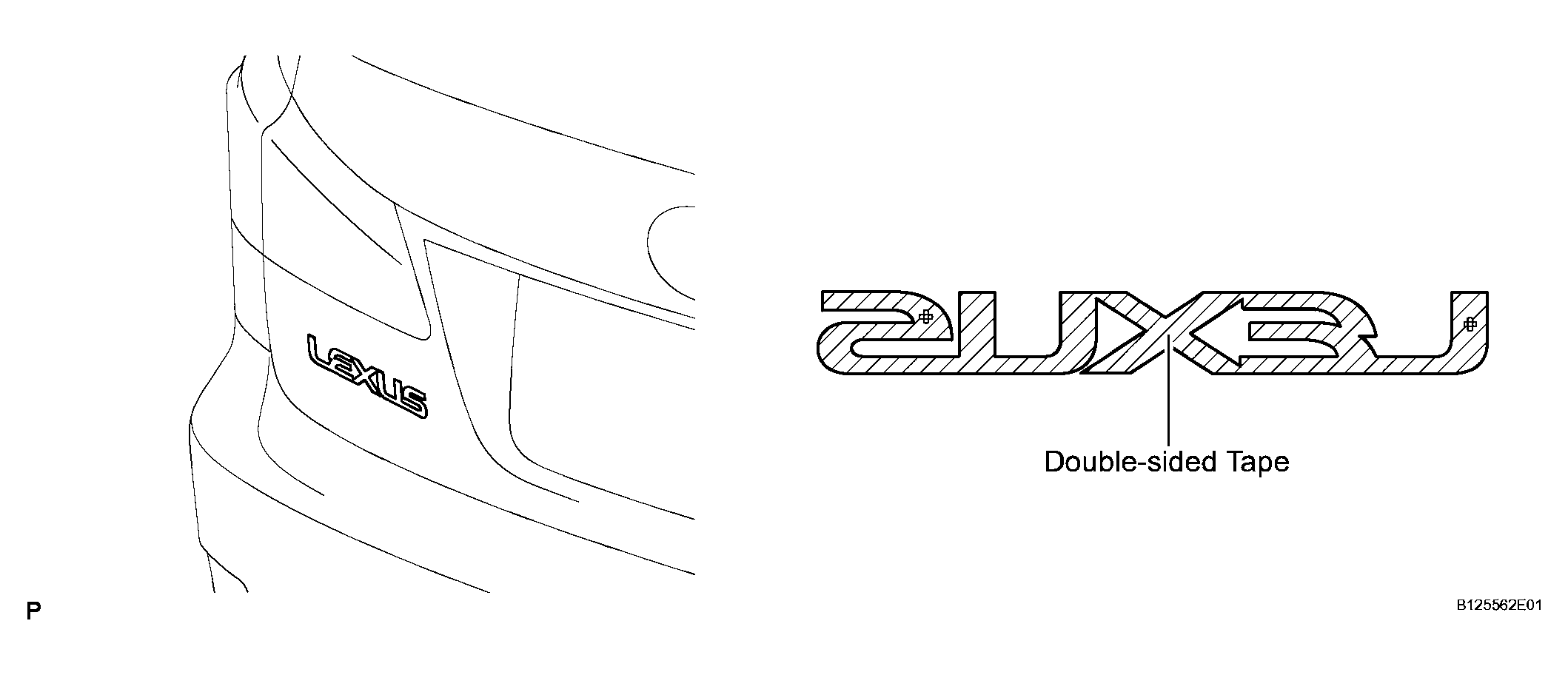

    Fig 2: Identifying No. 1 Luggage Compartment Door Name Plate
    G04051567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SYMBOL EMBLEM
    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Clean the symbol emblem. (If reusing the symbol emblem)
      1. Using a heat light, heat the symbol emblem.
      2. Remove the double-sided tape from the symbol emblem.
      3. Wipe off any tape adhesive residue with cleaner.
      4. Apply new double-sided tape to the symbol emblem.
    3. Install the symbol emblem.
      1. Using a heat light, heat the vehicle body and symbol emblem.
      2. Remove the peeling paper from the face of the symbol emblem.

        HINT:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the symbol emblem.

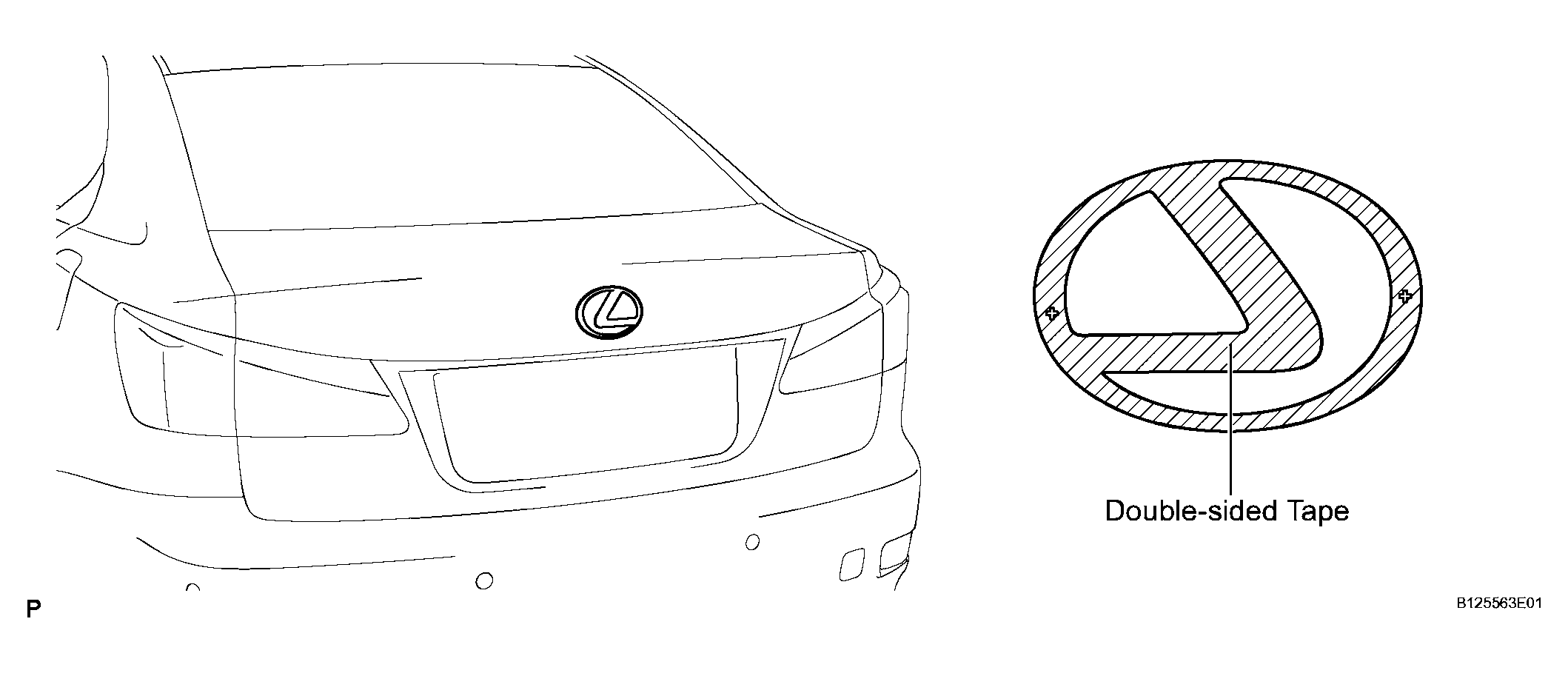

    Fig 3: Identifying Symbol Emblem
    G04051568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
