Rear Seat Assembly: Disassembly

  1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER
    1. Remove the hog rings.

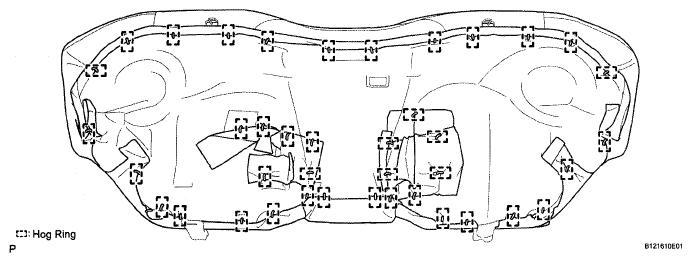

      Fig 1: Identifying Hog Rings
      G05321062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and seat cushion cover from the seat cushion frame (with pad).
      Fig 2: Identifying Hog Rings And Seat Cushion Cover
      G05321063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY
    1. Remove the 2 nuts and rear center seat armrest assembly.
      Fig 3: Identifying Nuts And Rear Center Seat Armrest Assembly
      G05321064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Center Armrest Box)
    1. Remove the 2 bolts and hinge.
      Fig 4: Identifying Bolts And Hinge
      G05321065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and rear center seat armrest door sub-assembly.
    3. Disengage the claw and remove the rear center seat armrest door sub-assembly.
      Fig 5: Identifying Screws And Rear Center Seat Armrest Door Sub-Assembly
      G05321066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY (w/ Center Armrest Box)
    1. Remove the 4 screws and rear seat armrest plate.
      Fig 6: Identifying Screws And Rear Seat Armrest Plate
      G05321067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and center armrest lock sub-assembly.
      Fig 7: Identifying Screws And Center Armrest Lock Sub-Assembly
      G05321068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/o Center Armrest Box)
    1. Remove the 2 bolts and hinge.
      Fig 8: Identifying Bolts And Hinge
      G05321065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the pad sub-assembly and box assembly.
    3. Remove the 2 screws and rear center seat armrest cup holder sub-assembly.
      Fig 9: Identifying Screws And Rear Center Seat Armrest Cup Holder Sub-Assembly
      G05321070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/ Center Armrest Box)
    1. Disengage the 14 claws and remove the rear center seat armrest panel.
      Fig 10: Identifying Claws And Rear Center Seat Armrest Panel
      G05321071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and rear center seat armrest cup holder sub-assembly.
      Fig 11: Identifying Screws And Rear Center Seat Armrest Cup Holder Sub-Assembly
      G05321072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)
    1. Disengage the 15 claws and remove the rear center seat armrest cover.
      Fig 12: Identifying Claws And Rear Center Seat Armrest Cover
      G05321073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear center seat armrest box.
  8. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 4 claws and remove the 2 rear seat headrest supports.
      Fig 13: Identifying Claws And Rear Seat Headrest Supports
      G05321074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT HEADREST SUPPORT
  10. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 2 claws and remove the rear seat headrest support.
      Fig 14: Identifying Claws And Rear Seat Headrest Supports
      G05321075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 15: Identifying Claws And Rear Seat Headrest Support
    G05321076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SEAT HEADREST SUPPORT
  12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
    1. Remove the 3 screws and rear seat shoulder belt guide RH.
      Fig 16: Identifying Screws And Rear Seat Shoulder Belt Guide RH
      G05321077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the 6 screws and rear seat shoulder belt guide LH.
    Fig 17: Identifying Screws And Rear Seat Shoulder Belt Guide LH
    G05321078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR BENCH TYPE SEATBACK COVER
    1. Remove the hog rings.

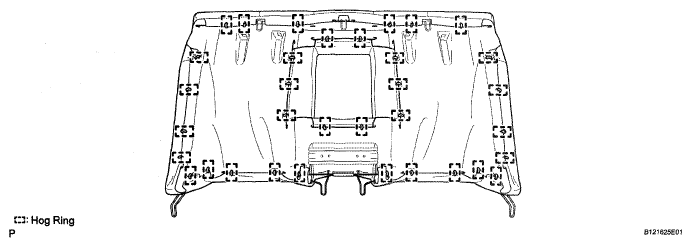

      Fig 18: Identifying Hog Rings
      G05321079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and seatback cover from the seatback frame (with pad).
      Fig 19: Identifying Hog Rings And Seatback Cover From Seatback Frame (With Pad)
      G05321080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
