Rear Seat Assembly: Reassembly

HINT:

A bolt without a torque specification is shown in the standard bolt chart. (See SPECIFIED TORQUE FOR STANDARD BOLTS (For IS350) SPECIFIED TORQUE FOR STANDARD BOLTS (For IS250) )

  1. INSTALL REAR BENCH TYPE SEATBACK COVER
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.
    1. Using hog ring pliers, install the seatback cover to the seatback frame (with pad) with new hog rings.

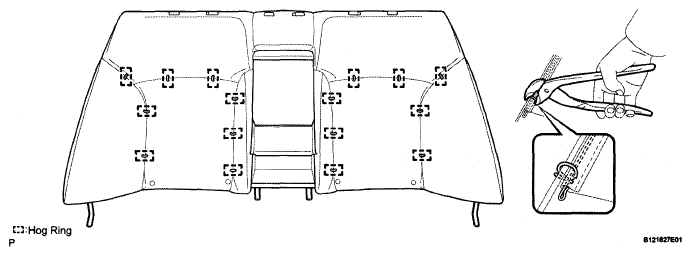

      Fig 1: Identifying Seatback Cover To Seatback Frame (With Pad) With New Hog Rings (1 Of 2)
      G05321081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

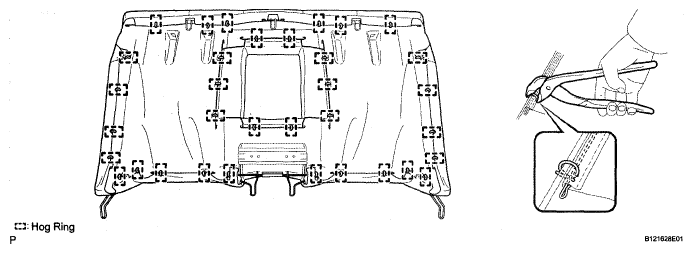

      Fig 2: Identifying Seatback Cover To Seatback Frame (With Pad) With New Hog Rings (2 Of 2)
      G05321082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEAT SHOULDER BELT GUIDE LH
  3. INSTALL REAR SEAT SHOULDER BELT GUIDE RH
  4. INSTALL REAR SEAT HEADREST SUPPORT
  5. INSTALL REAR SEAT HEADREST SUPPORT
  6. INSTALL REAR SEAT HEADREST SUPPORT
  7. INSTALL REAR SEAT HEADREST SUPPORT
  8. INSTALL REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)
  9. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/ Center Armrest Box)
  10. INSTALL REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/o Center Armrest Box)
  11. REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY (w/ Center Armrest Box)
  12. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Center Armrest Box)
  13. INSTALL REAR CENTER SEAT ARMREST HINGE
  14. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY
  15. INSTALL REAR BENCH TYPE SEAT CUSHION COVER
    NOTE:
    • Be careful not to damage the cover.
    • When installing the hog rings, avoid wrinkling the cover.
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion frame (with pad) with new hog rings.

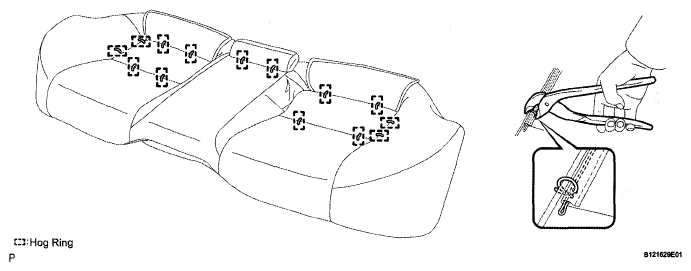

      Fig 3: Identifying Seat Cushion Cover To Seat Cushion Frame With New Hog Rings (1 Of 2)
      G05321083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

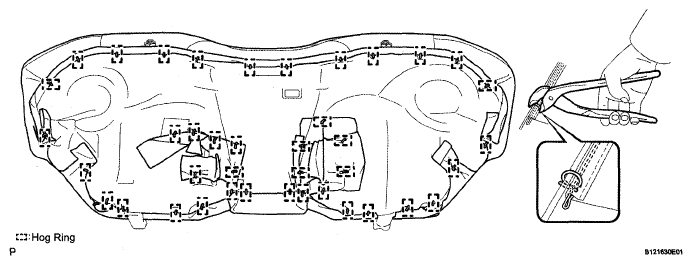

      Fig 4: Identifying Seat Cushion Cover To Seat Cushion Frame With New Hog Rings (2 Of 2)
      G05321084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
