Front Passenger Side Power Window Switch Power Source Circuit: Wiring Diagram

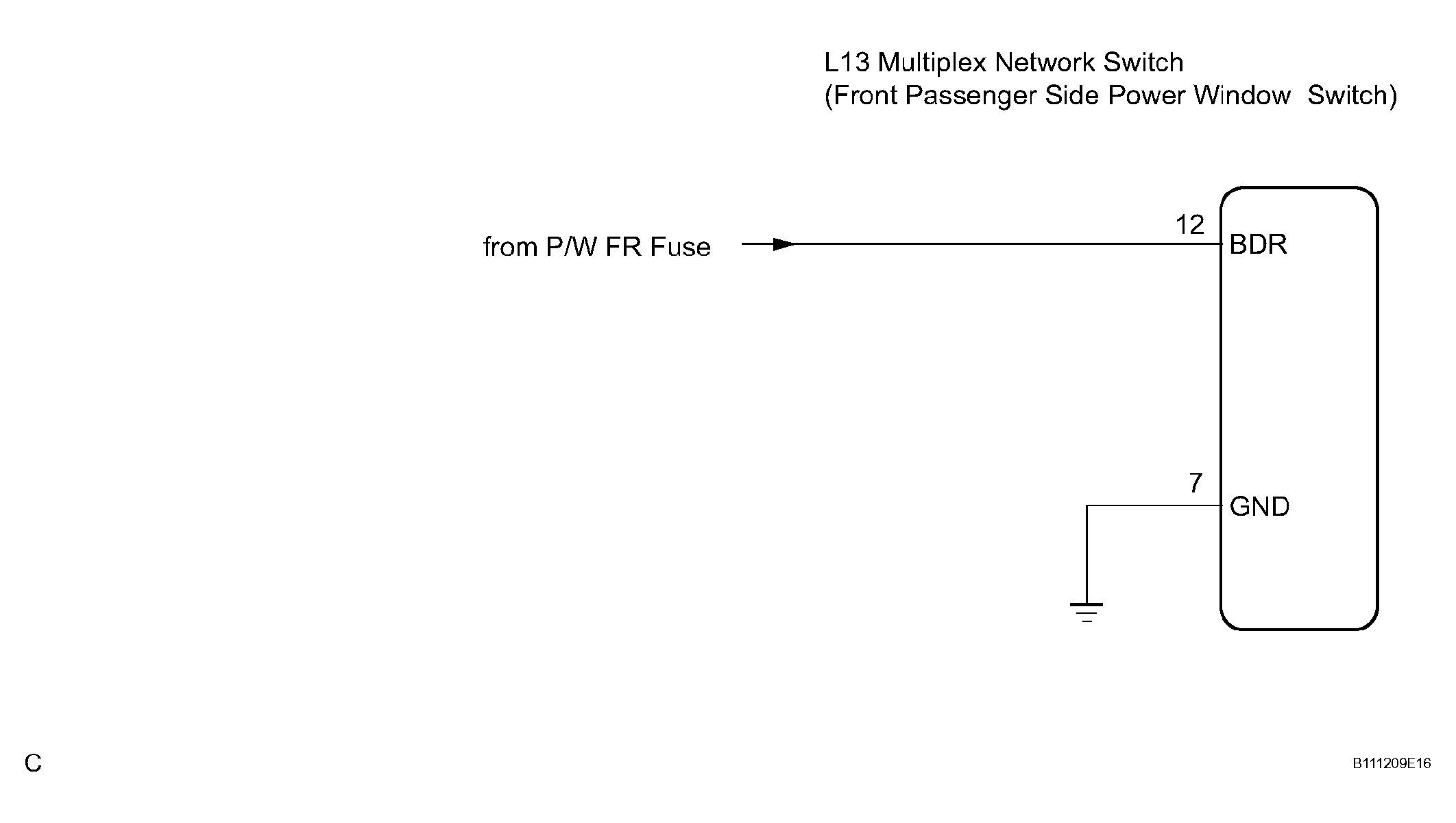

Fig 1: Identifying Front Passenger Side Power Window Switch Power Source Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
