Power Seat for Driver's Seat with Memory: Notes

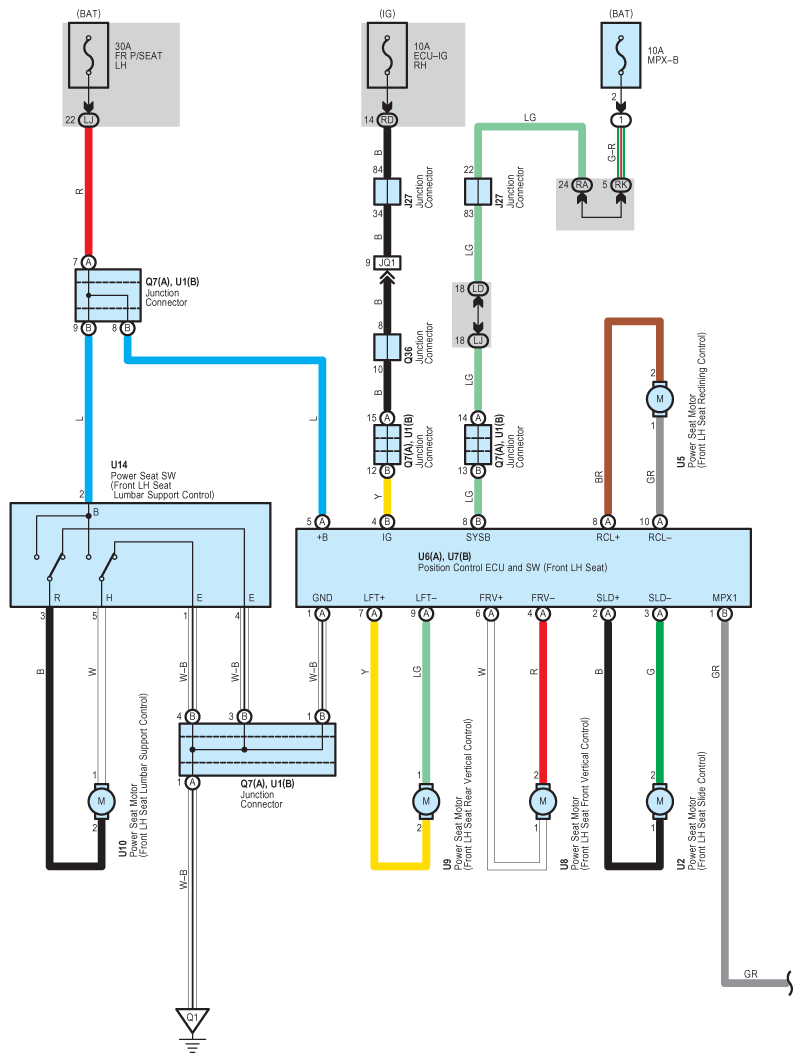

Fig 1: Power Seat For Driver's Seat With Memory - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

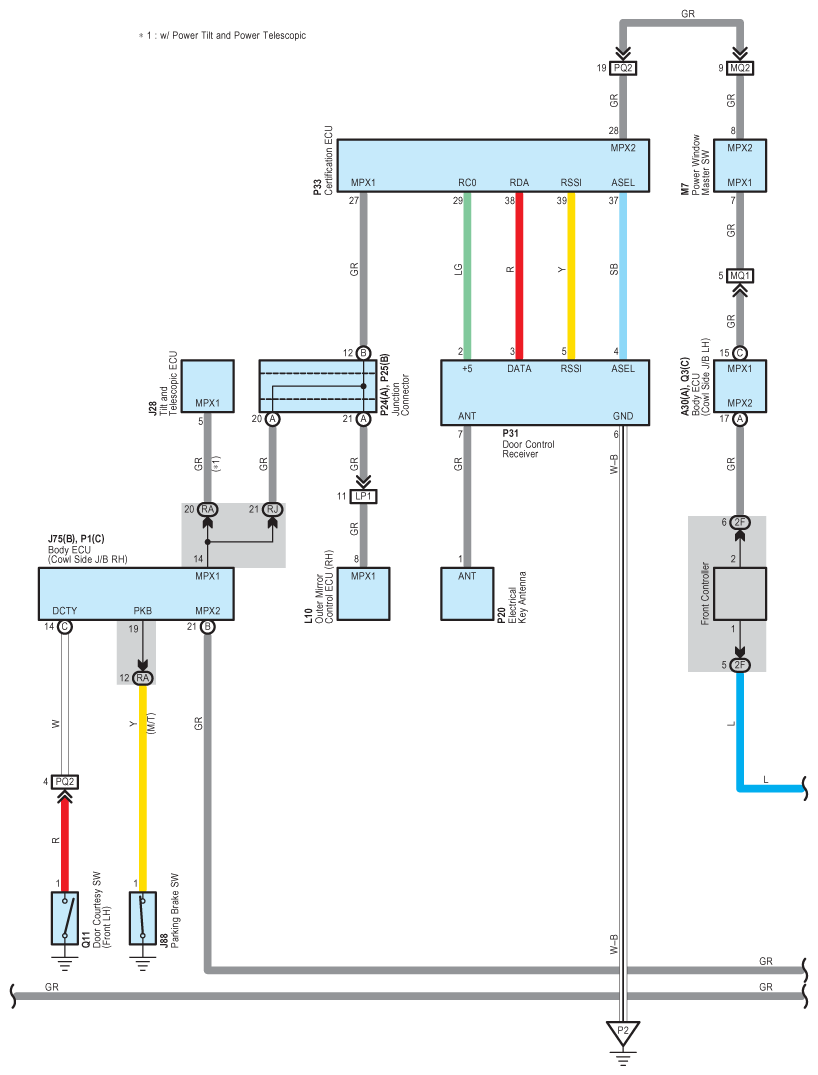

Fig 2: Power Seat For Driver's Seat With Memory - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

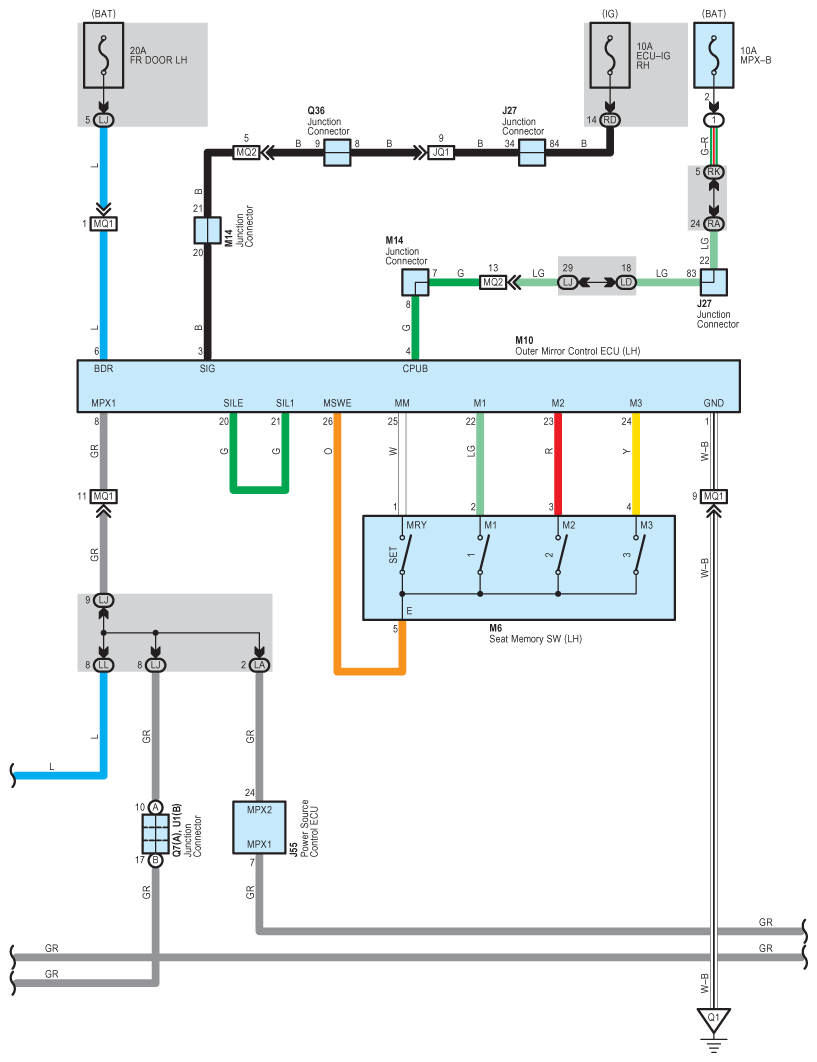

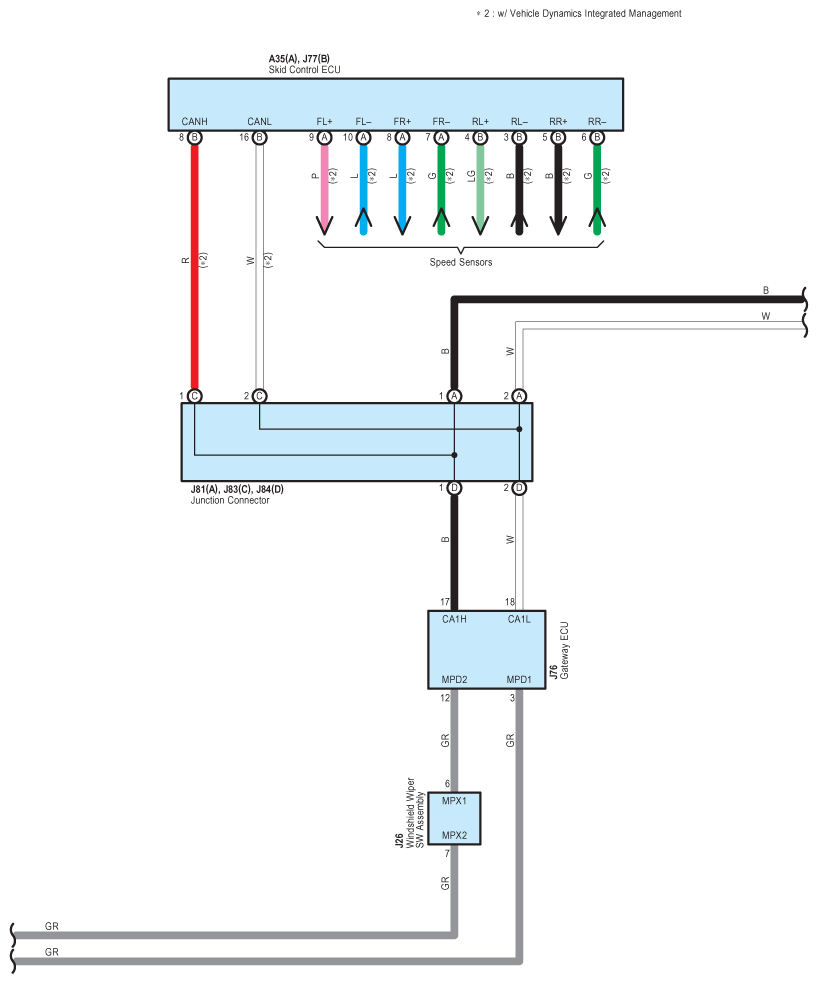

Fig 3: Power Seat For Driver's Seat With Memory - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

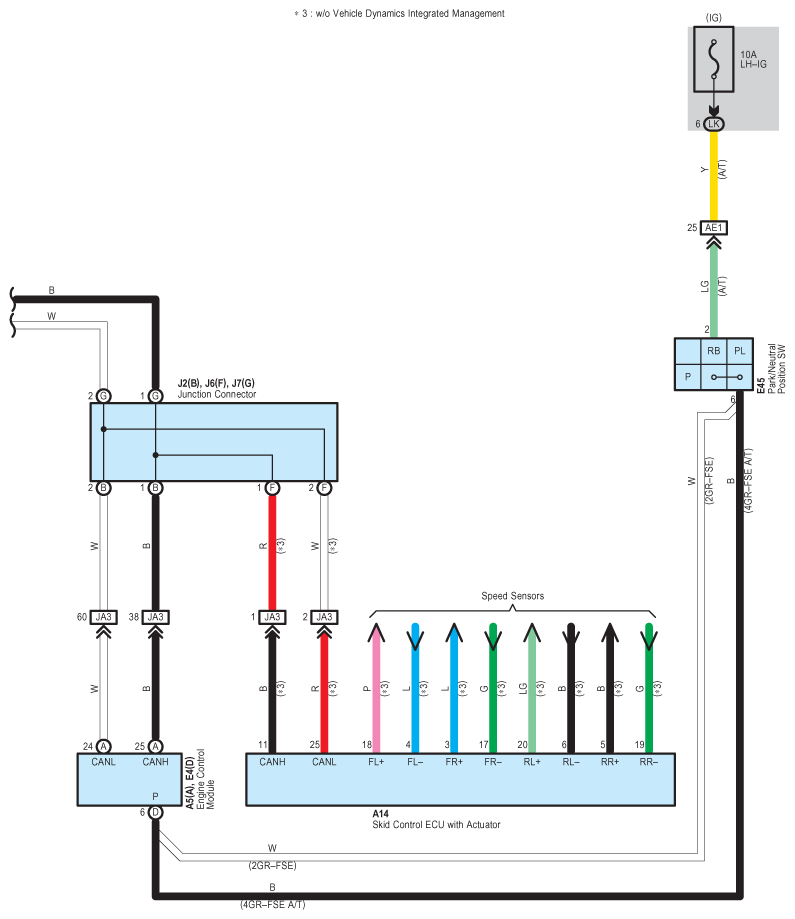

Fig 4: Power Seat For Driver's Seat With Memory - Wiring Diagram (4 Of 5)

Fig 5: Power Seat For Driver's Seat With Memory - Wiring Diagram (5 Of 5)
