Power Seat for Driver's Seat without Memory: Notes

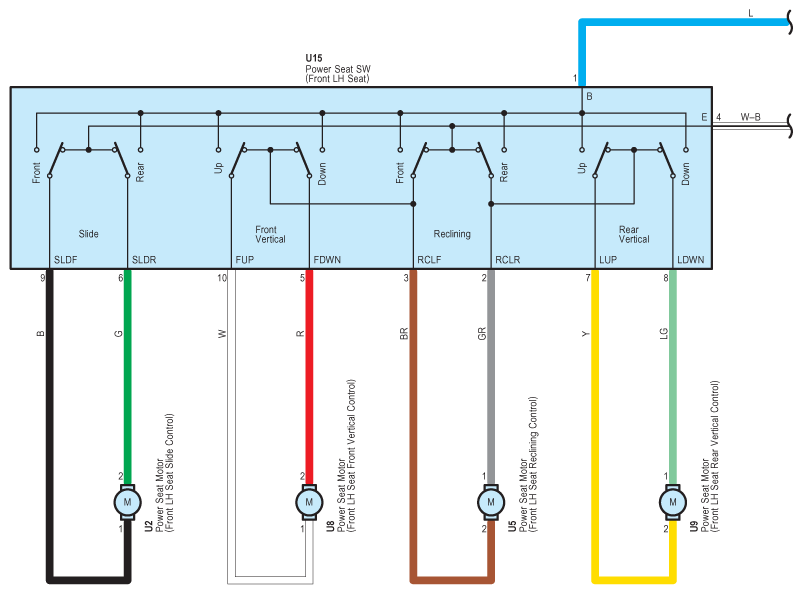

Fig 1: Power Seat For Driver's Seat Without Memory - Wiring Diagram (1 Of 2)
G08918621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Seat For Driver's Seat Without Memory - Wiring Diagram (2 Of 2)
G08918622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
