Charging (2GR-FSE): Generator: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE NO. 1 INLET AIR CLEANER (See REMOVAL )
REMOVE V-RIBBED BELT (See REMOVAL )
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE RADIATOR INLET HOSE (See REMOVAL )
REMOVE NO. 2 ENGINE COVER (See REMOVAL )
REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY (See REMOVAL )
DISCONNECT WIRE HARNESS
1. Remove the 3 nuts (A) and disconnect wire harness.
2. Disconnect the 2 connectors (B).

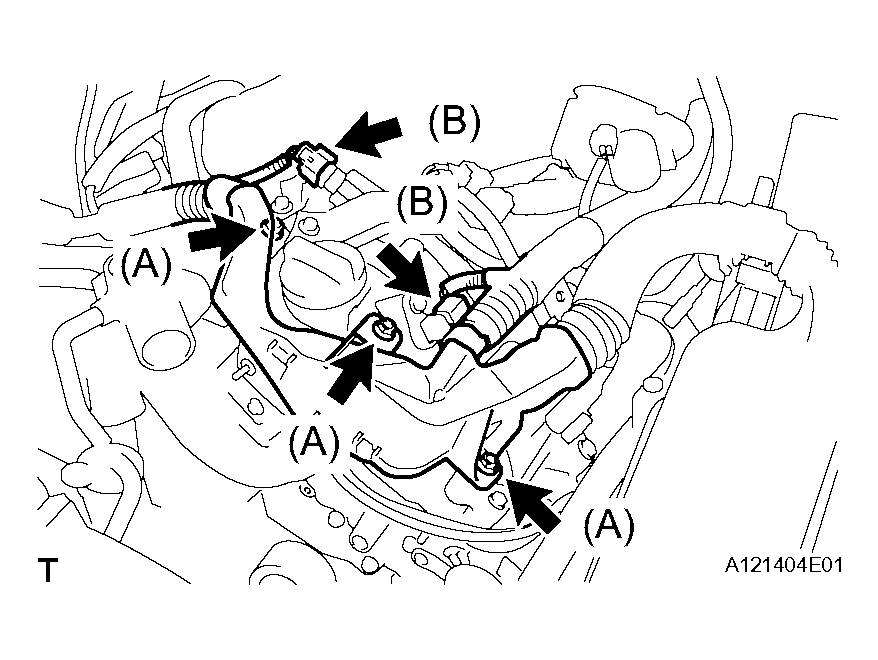

  Fig 1: Identifying Nuts (A) And Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR ASSEMBLY
1. Remove the terminal cap.
2. Remove the nut (A) and disconnect the wire harness from terminal B.
3. Remove the bolt (B) and clamp bracket.
4. Disconnect the generator connector, and detach the 2 clamps.

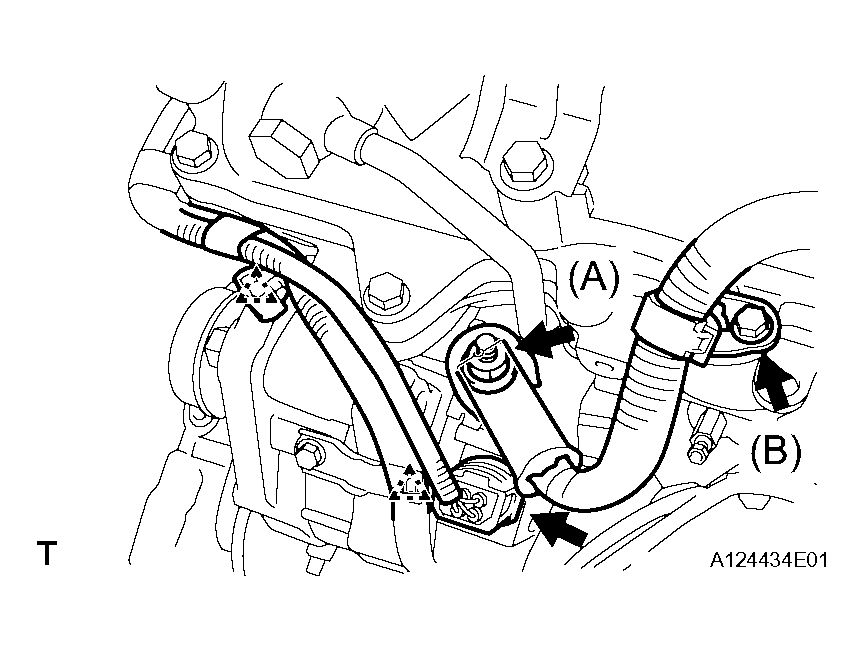

  Fig 2: Identifying Bolt (B) And Clamp Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the nut, and disconnect the generator bracket.

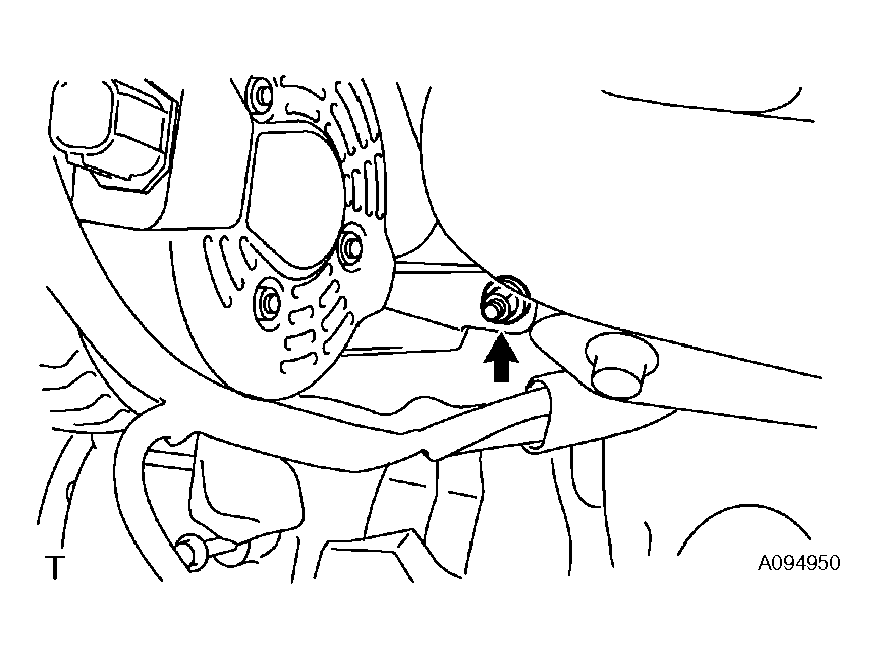

  Fig 3: Identifying Nut, And Disconnecting Generator Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts and generator.

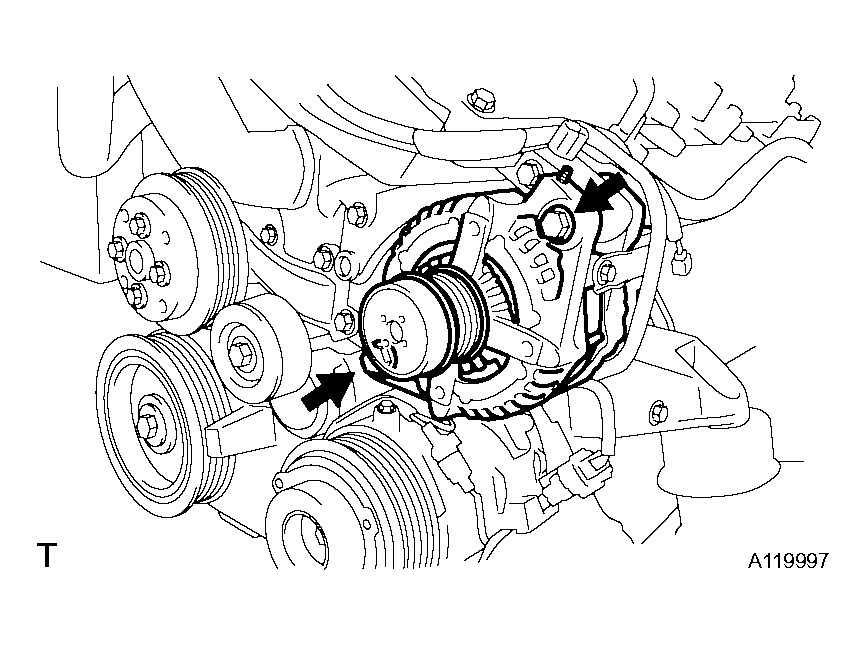

  Fig 4: Identifying Bolts And Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 bolts and 2 generator brackets.

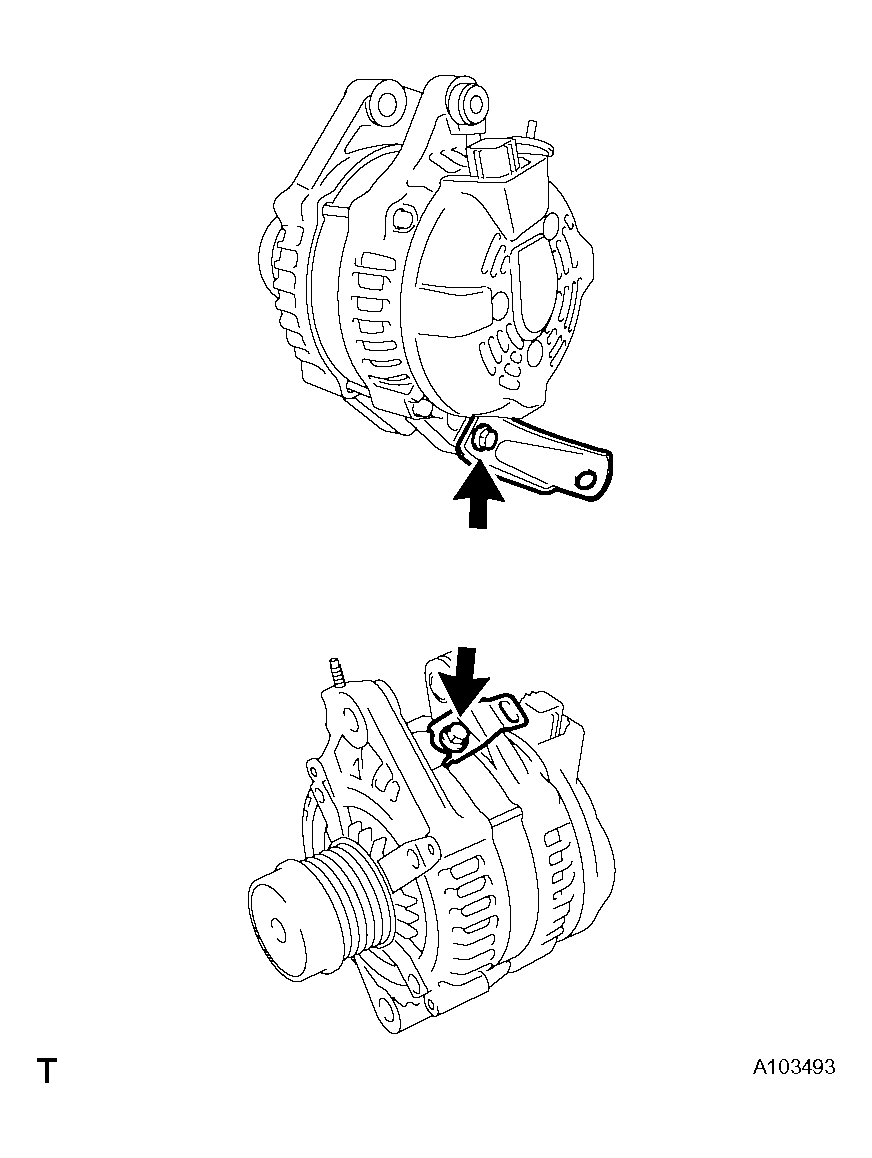

  Fig 5: Identifying Bolts And Generator Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
