Instrument Panel Safety Pad: Disassembly

  1. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Remove the 3 screws < F > and the No. 1 heater to register duct.

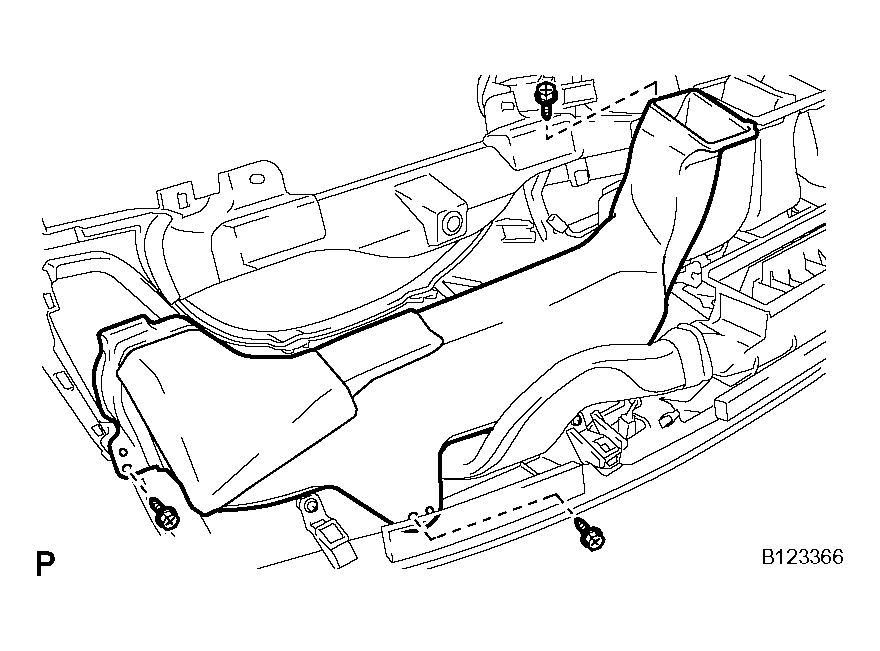

    Fig 1: Removing No. 1 Heater To Register Duct
    G04050934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. Remove the 3 screws < F > and the No. 3 heater to register duct.

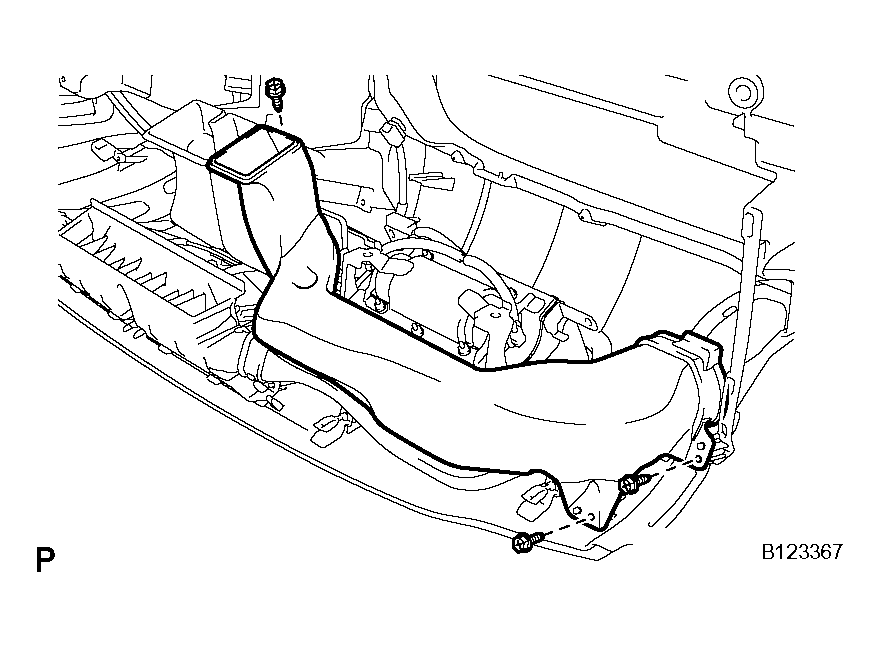

    Fig 2: Removing Screws & No. 3 Heater To Register Duct
    G04050935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT
    1. Remove the screw < F > and the side No. 1 defroster nozzle duct.

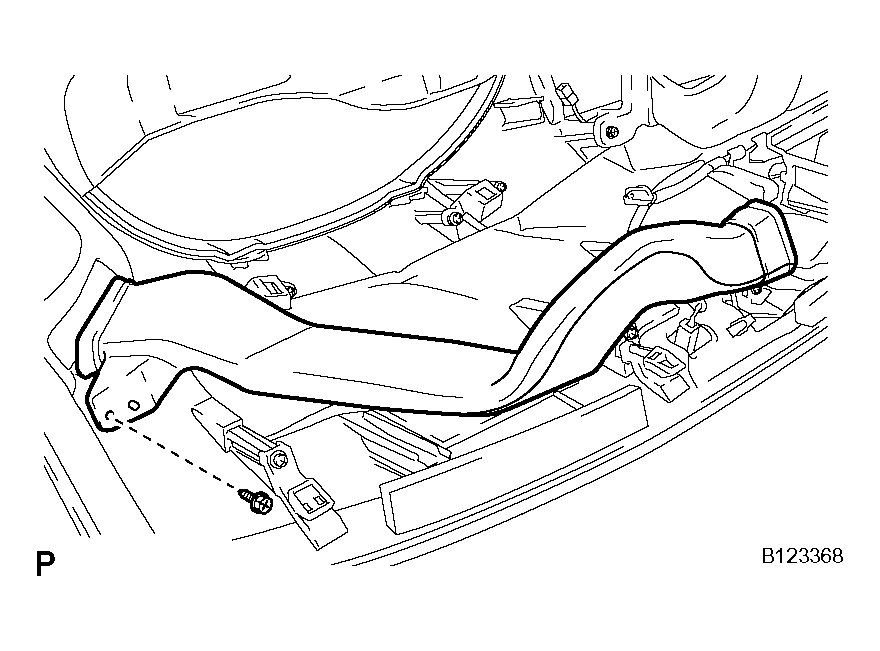

    Fig 3: Removing Side No. 1 Defroster Nozzle Duct
    G04050936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT
    1. Remove the screw < F > and the side No. 2 defroster nozzle duct.

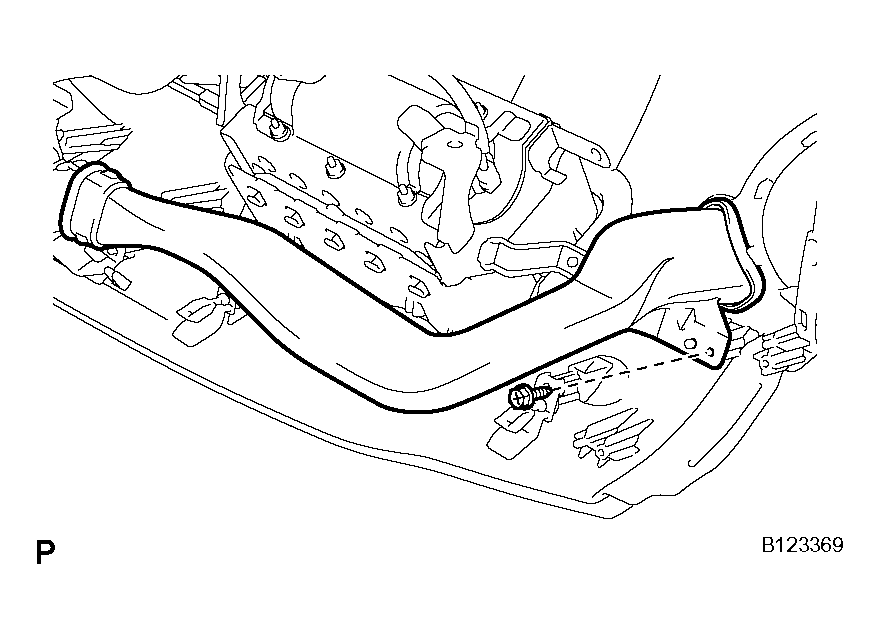

    Fig 4: Removing Side No. 2 Defroster Nozzle Duct
    G04050937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws < F > and the defroster nozzle assembly.

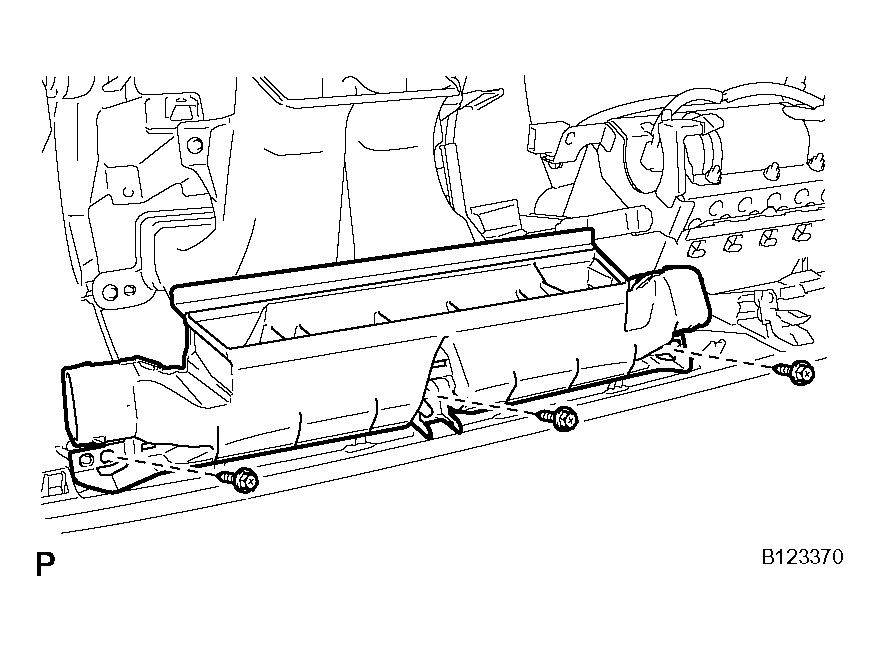

    Fig 5: Removing Defroster Nozzle Assembly
    G04050938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the 4 screws < F > and the No. 2 heater to register duct.

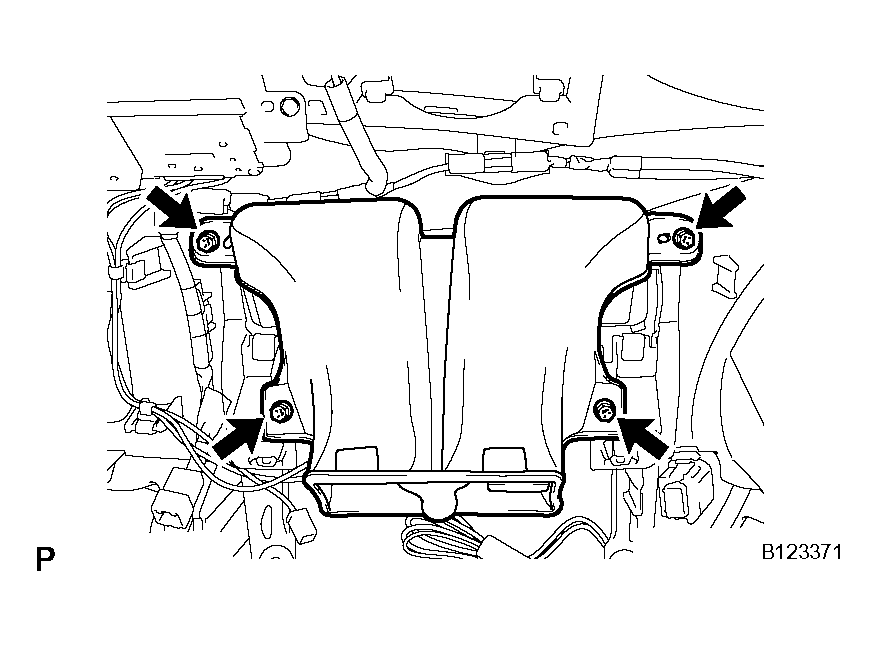

    Fig 6: Remove No. 2 Heater To Register Duct
    G04050939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SIDE DEFROSTER NOZZLE
    1. Disengage the 4 claws and remove the side defroster nozzle.

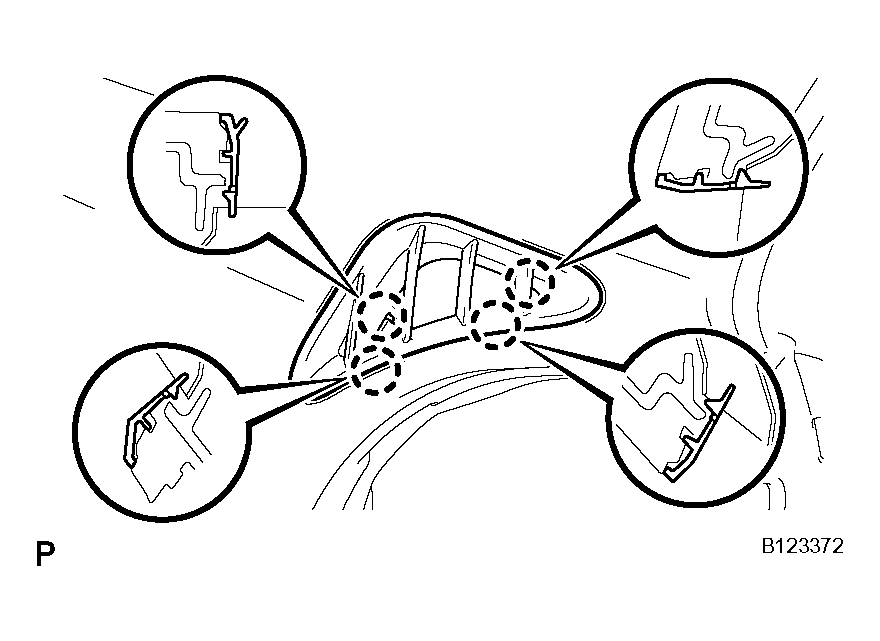

    Fig 7: Removing Side Defroster Nozzle
    G04050940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY (See Step 60 in  REMOVAL  )
  9. REMOVE NAVIGATION ANTENNA (See Step 52 in  REMOVAL  )
  10. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Disconnect the connector.
    2. Disengage the 5 clamps and remove the No. 2 instrument panel wire.

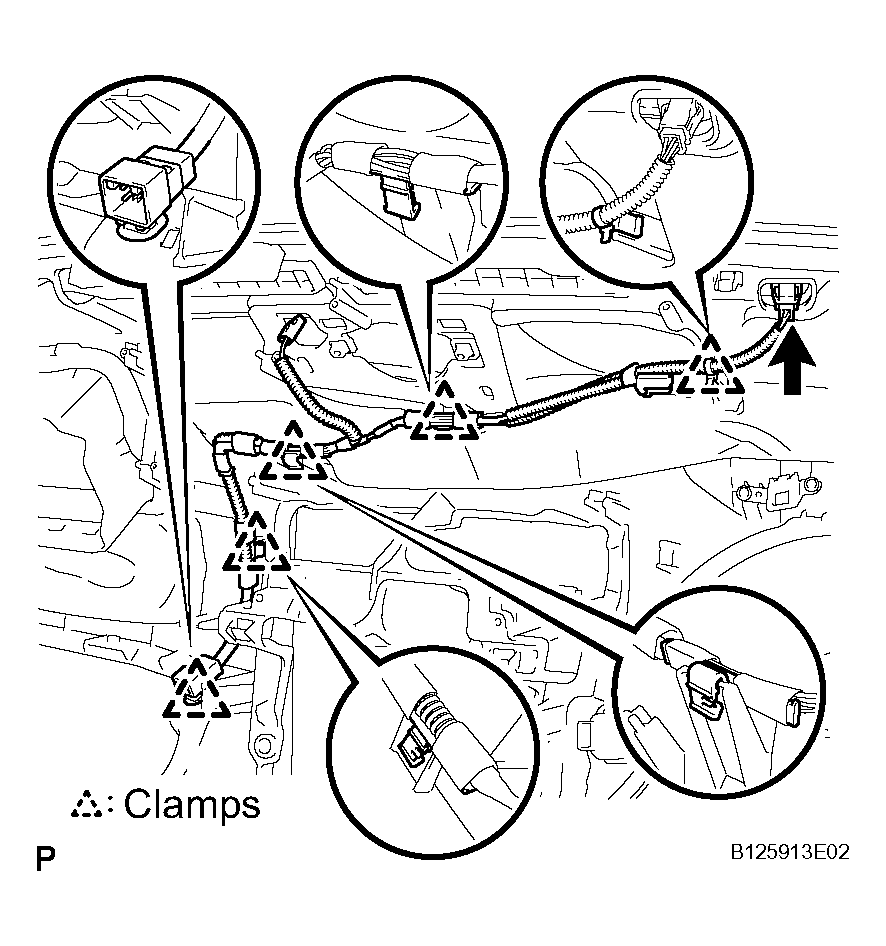

    Fig 8: Removing No. 2 Instrument Panel Wire
    G04050941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See Step 14 in  REMOVAL  )
  12. REMOVE DEFROSTER NOZZLE GARNISH
    1. Disengage the 8 claws and 2 clips, and then remove the defroster nozzle garnish.
    Fig 9: Removing Defroster Nozzle Garnish
    G04050942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Disengage the 2 claws and remove the automatic light control sensor.
    Fig 10: Removing Automatic Light Control Sensor
    G04050943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE ENGINE SWITCH
    1. Disengage the 2 claws and remove the engine switch.
    15. Fig 11: Removing Engine Switch
    G04050944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE INSTRUMENT PANEL SPACER
