Instrument Panel Safety Pad: Precaution

PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
1. Some operations in this article may affect the SRS airbags. Prior to performing the corresponding operations, read the SRS airbag NOTICE (See PRECAUTION ).

TABLE OF BOLT, SCREW AND NUT

HINT:

The bolts, screws and nuts necessary for installation and removal of the instrument panel, are shown in BOLT, SCREW AND NUT SPECIFICATION TABLE and coded alphabetically.

BOLT, SCREW AND NUT SPECIFICATION TABLE

Code	Shape	Size	Parts No.
< A >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter = 8 mm (0.31 in.) Length= 18 mm (0.71 in.)	91626-60818
< B >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter = 8 mm (0.31 in.) Length = 17 mm (0.67 in.)	91553-80812
< C >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter =6 mm (0.24 in.) Length= 18 mm (0.71 in.)	91651-60618
< D >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter =6 mm (0.24 in.) Length= 18 mm (0.71 in.)	91553-80614
< E >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter =5 mm (0.20 in.) Length= 14 mm (0.55 in.)	93568-55014
< F >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter =5 mm (0.20 in.) Length= 15 mm (0.59 in.)	90159-50527
< G >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter =5 mm (0.20 in.) Length= 21 mm (0.83 in.)	90159-50002

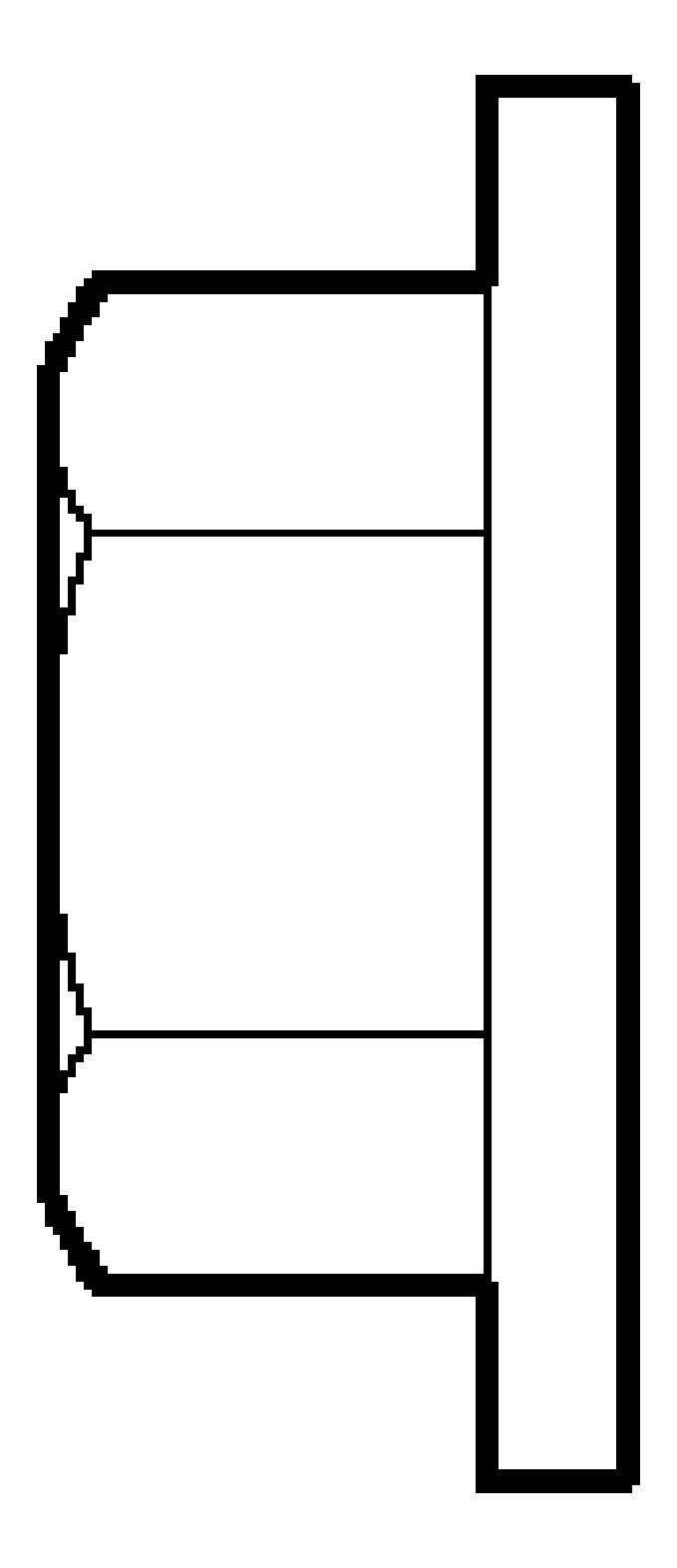

< H >	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Diameter =6 mm (0.24 in.)	90179-06307
